Featured What you been doing with your TRIUMPH today??

Discussion in 'Triumph General Discussion' started by flapinflares, Mar 7, 2013.

  1. This site uses cookies. By continuing to use this site, you are agreeing to our use of cookies. Learn More.
  1. Pegscraper

    Pegscraper Elite Member

    Jun 12, 2020
    3,283
    800
    Yorkshire
    #16761 Pegscraper, Feb 17, 2022
    Last edited: Feb 17, 2022
    I used these on the SS....
    https://www.ebay.co.uk/itm/SUZUKI-9...YABUSA-/274400574354?var=&hash=item3fe38c7b92

    I already had some circlip pliers with changeable jaws so I made some for the fuel hose clip out of some very stiff wire.
    Just put the bike in top, with the plugs out and turn the engine over with the rear wheel. Measure each valve clearance between the base circle of the cam and the shim (when the lobe of the cam is pointing away from the valve). Thats how I do mine, no need to bother removing engine covers etc.

    • Useful Useful x 1
  2. brown mouse

    brown mouse Elite Member

    Sep 15, 2018
    2,288
    943
    East Midlands, UK
    • Useful Useful x 1
  3. Sandi T

    Sandi T It's ride o'clock somewhere!
    Subscriber

    Dec 3, 2018
    22,601
    1,000
    Tucson Arizona
    Yes, there's just something about a Speedmaster. :) Mr. Sandi and I were looking at the 2022 on the Triumph website and he really likes it, too. It's great that your Speedmaster still stirs your soul when you see it in the garage and glance back at it when you park it. That says a lot. :) Is there a photo of your bike on the forum that you can point me to? Or would you consider posting one here?

    • Like Like x 1
  4. Johnjo

    Johnjo Senior Member

    May 29, 2017
    548
    243
    Birmingham
    Sadly no photos of bike Sandy. I will endeavour to put that right when out and about somewhere scenic. Just for info it's the same colour as brown mouses, black & white.

    • Like Like x 1
    • Thanks Thanks x 1
  5. Sandi T

    Sandi T It's ride o'clock somewhere!
    Subscriber

    Dec 3, 2018
    22,601
    1,000
    Tucson Arizona
    Thanks, @Johnjo. I'll look forward to seeing a photo one of these days when the weather cooperates. Mr. Sandi and I have a ride buddy who until recently had a newer Bonneville (T20, I think) in black and white. He named it "Oreo". :) He sold the Bonnie to his brother which left him with one Triumph, a red 2006 Thruxton named "Thunderball".

    • Like Like x 2
  6. Iron

    Iron Elite Member

    Dec 29, 2021
    2,695
    943
    Bob Ross Studios

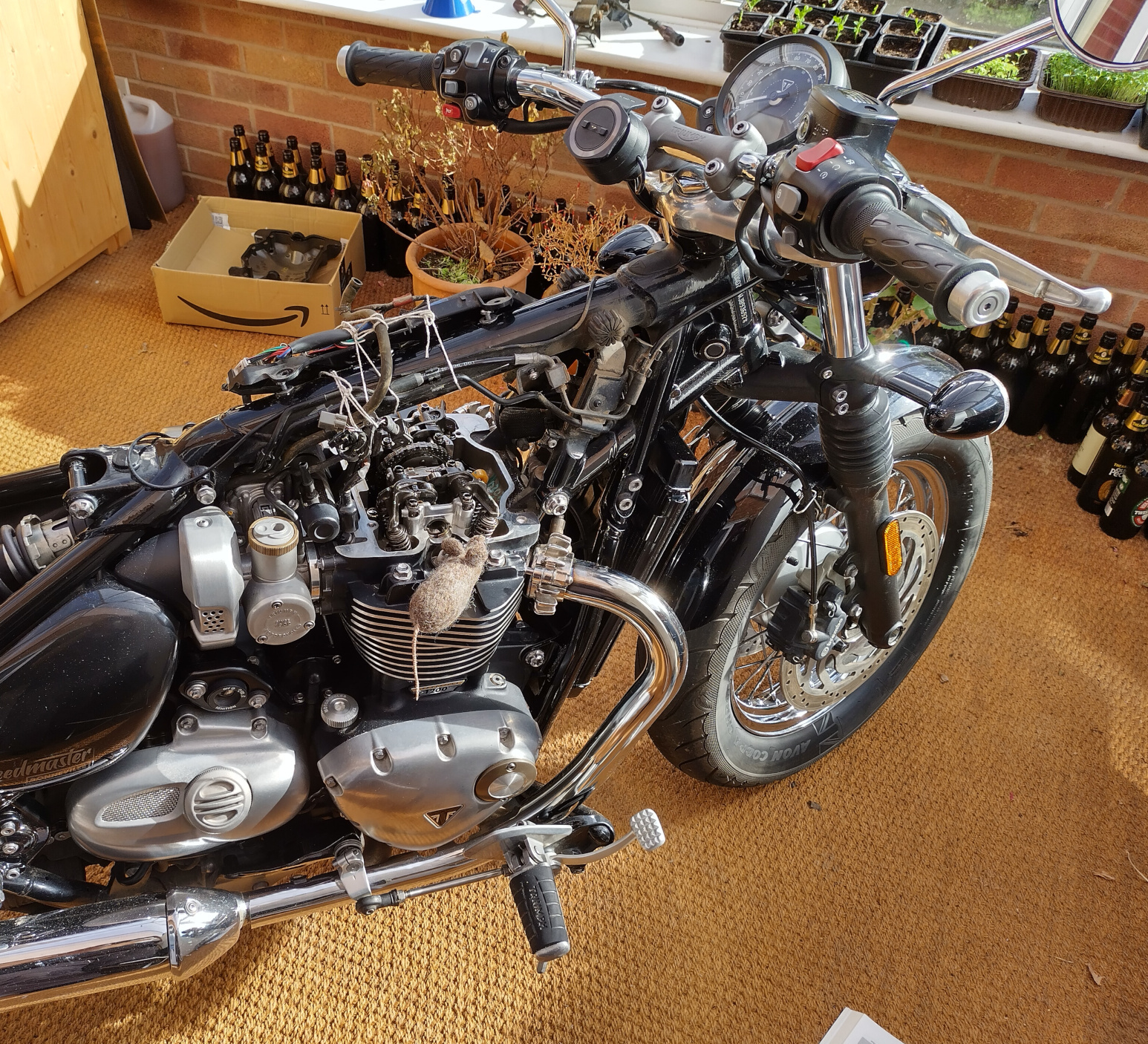

    Bloody ell, how many bottles did you drink while you was doing that? No wonder you couldn't get the hose unclipped :laughing:

    • Funny Funny x 3
    • Agree Agree x 1
  7. Tom Swift

    Tom Swift Active Member

    Sep 24, 2021
    142
    43
    USA
    I installed the Street Twin bars on my Street Cup. The SC bars were about and inch or so narrower with more pullback which I liked. I'm now sitting further back on the seat which is a fair trade-off. I have a few other bikes that fit me better and would rather ride but none a beautiful as the SC :cool:. The only other modifications I plan to do is the Tec cam and X-pipe. Haven't looked at the intake snorkel, yet but that typically becomes a bottleneck after the other restrictions are removed.

    • Like Like x 3
  8. brown mouse

    brown mouse Elite Member

    Sep 15, 2018
    2,288
    943
    East Midlands, UK
    #16768 brown mouse, Feb 17, 2022
    Last edited: Feb 17, 2022
    That's what I did for checking valve clearances. But to check the timing you need to get alternator cover off to get to the timing hole which locks the crank shaft, so you can then check the cams are in the correct position relative to that. If I knew that timing hole was aligned with TDC then I could instead get a gauge down the spark plug hole to get pistons at TDC and check the cam timing without getting the alternator off.

    It's getting the alternator cover off that's the part of the service I'm dreading, as by all accounts it's a right pain to seal right when putting it back together (because of the rubber grommet where the alternator leads exit). In fact the factory got it wrong when they assembled my bike, giving me an oil leak in the first few hundred miles :(

  9. Pegscraper

    Pegscraper Elite Member

    Jun 12, 2020
    3,283
    800
    Yorkshire
    I didn't realise the valve timing was adjustable on these engines. The Z1000 engine I rebuilt and tuned back in the 80's had slotted cam sprockets for advancing/retarding the cams and adjustment of valve timing. Most standard bikes I've come across have fixed sprockets and non adjustable timing.

  10. Markus

    Markus Crème de la Crème
    Subscriber

    Oct 28, 2020
    3,540
    1,000
    AUSTRIA
    @brown mouse: I am impressed of your technical skills. With the help of your "electrolyte drinks" you can obviously hold out even longer. :p

    • Funny Funny x 1
  11. brown mouse

    brown mouse Elite Member

    Sep 15, 2018
    2,288
    943
    East Midlands, UK
    Triumph water-cooled twins have a slotted cam sprocket too. The service schedule has 'camshaft timing check' listed, not 'check/adjust' like valve clearances so unsure if bad timing means worn stuff needing replacement, or just adjust. Also, the service manuals doesn't mention a timing check procedure, just how to set timing when installing a sprocket, which I guess is same thing. Support guy at triumph confirmed that, though couldn't explain why the engine service kit they sell didn't include alternator gasket, just the cam cover one.

    • Useful Useful x 2
    • Like Like x 1
  12. Pegscraper

    Pegscraper Elite Member

    Jun 12, 2020
    3,283
    800
    Yorkshire
    That's interesting. I wonder why they've done that, possibly to compensate for and adjust out any valve train wear maybe? If you've had the cams out, for whatever reason, timing shouldn't be affected if the sprocket bolts haven't been touched. Reading through the timing check and adjustment procedure it appears Triumph special tools are required to pre tension the chain, due to the fact the tensioner is hydraulic no doubt. If you know what the valve timing figures are, a degree wheel and a dial gauge is the most accurate way to check them but in the absence of any such data you can only rely on the timing marks.

    • Useful Useful x 1
  13. brown mouse

    brown mouse Elite Member

    Sep 15, 2018
    2,288
    943
    East Midlands, UK
    #16773 brown mouse, Feb 18, 2022
    Last edited: Feb 18, 2022
    The timings are listed in service manual, perhaps I should have a rethink

    I guess I hadn't cottoned on the tensioner may be hydraulic. I didn't order the chain tensioner tool, thinking that there wouldn't be significant slack in the chain, because the tension produced by turning the engine (or pushing against sprocket by hand) would be enough to give a sense that the timing wasn't too far out.

    The guy a TEC Bike Parts didn't do anything special for tensioning when showing how to fit their cams.

    Edit: I'm lying, he takes out the tensioned and changers the circlip to a 'pre loaded' position.

    Edit again: No, I wasn't lying, that tensioner change is the specified procedure for refitting tensioner, which he has removed to get chain slack when swapping camshaft. He does the timing for the new camshaft with this tensioner still compressed, presumably meaning there it's not forcing the chain to be tensioned, unless it has snapped back out into position by itself (before the rotate engine backwards step at the end designed to get this to happen).


  14. Pegscraper

    Pegscraper Elite Member

    Jun 12, 2020
    3,283
    800
    Yorkshire
    #16774 Pegscraper, Feb 18, 2022
    Last edited: Feb 18, 2022
    It's the Haynes manual I have and I can't see valve timing specs anywhere but, thinking about it, with a SOHC setup you can't adjust inlet and exhaust valve timing separately anyway. You need some tension on the slack side of the chain at all times to prevent overun on the cam when turning the engine over.
    Here's a good demonstration/explanation by Dave Hopkins, well known in dirtbike circles....


    • Useful Useful x 1
  15. brown mouse

    brown mouse Elite Member

    Sep 15, 2018
    2,288
    943
    East Midlands, UK
    Thanks, that's very interesting. BTW, I did start a thread a few days ago in the Technical Help part of the forum, which may be a better place for this conversation and not bore other people here with this? ;)

    I just added there that the Triumph service manual seems to say the timing slot on camshaft corresponds to TDC on cylinder one, and I can get that position via the spark plug hole, no need for removing alternator cover.

    • Useful Useful x 1
  16. Captain Klang

    Captain Klang Well-Known Member

    Aug 18, 2019
    195
    83
    Yorkshire
    Fitting new metal fuel connectors under the tank to replace the crappy plastic ones that Triumph insist don’t break and never cause problems. Like hell!

    • Like Like x 2
  17. Pegscraper

    Pegscraper Elite Member

    Jun 12, 2020
    3,283
    800
    Yorkshire
    That sounds a very worth while mod. The OEM plastic connectors can be a bitch to release, requiring such force I always expect it breaking.

  18. Captain Klang

    Captain Klang Well-Known Member

    Aug 18, 2019
    195
    83
    Yorkshire
    I’m surprised mine lasted as long as they had. Of course, they could have already been replaced with the standard ones more than once before I got the bike.
    It’s not really a mod, more an essential upgrade. If yours has the plastic ones, you need to swap them for the metal ones.
    Part number for the ones I got is LCD10004V 1/4 BSPT male thread. I paid £21 inc vat each from RS Components in Northampton. If you have a 955 any model they will be the same.

    • Useful Useful x 1
  19. Captain Klang

    Captain Klang Well-Known Member

    Aug 18, 2019
    195
    83
    Yorkshire
    Link below.
    https://uk.rs-online.com/web/p/hose-couplings/3872511

    • Useful Useful x 2
    • Thanks Thanks x 1
  20. Pegscraper

    Pegscraper Elite Member

    Jun 12, 2020
    3,283
    800
    Yorkshire
    Shortened the indicators on the Scrambler. I like the fact that they're quite large and bright for good visibility, personally I'm not a fan of those tiny smoked LED offerings, but they stick out quite a bit so I shortened them by about 1" which I think has improved things slightly.

    standard.....

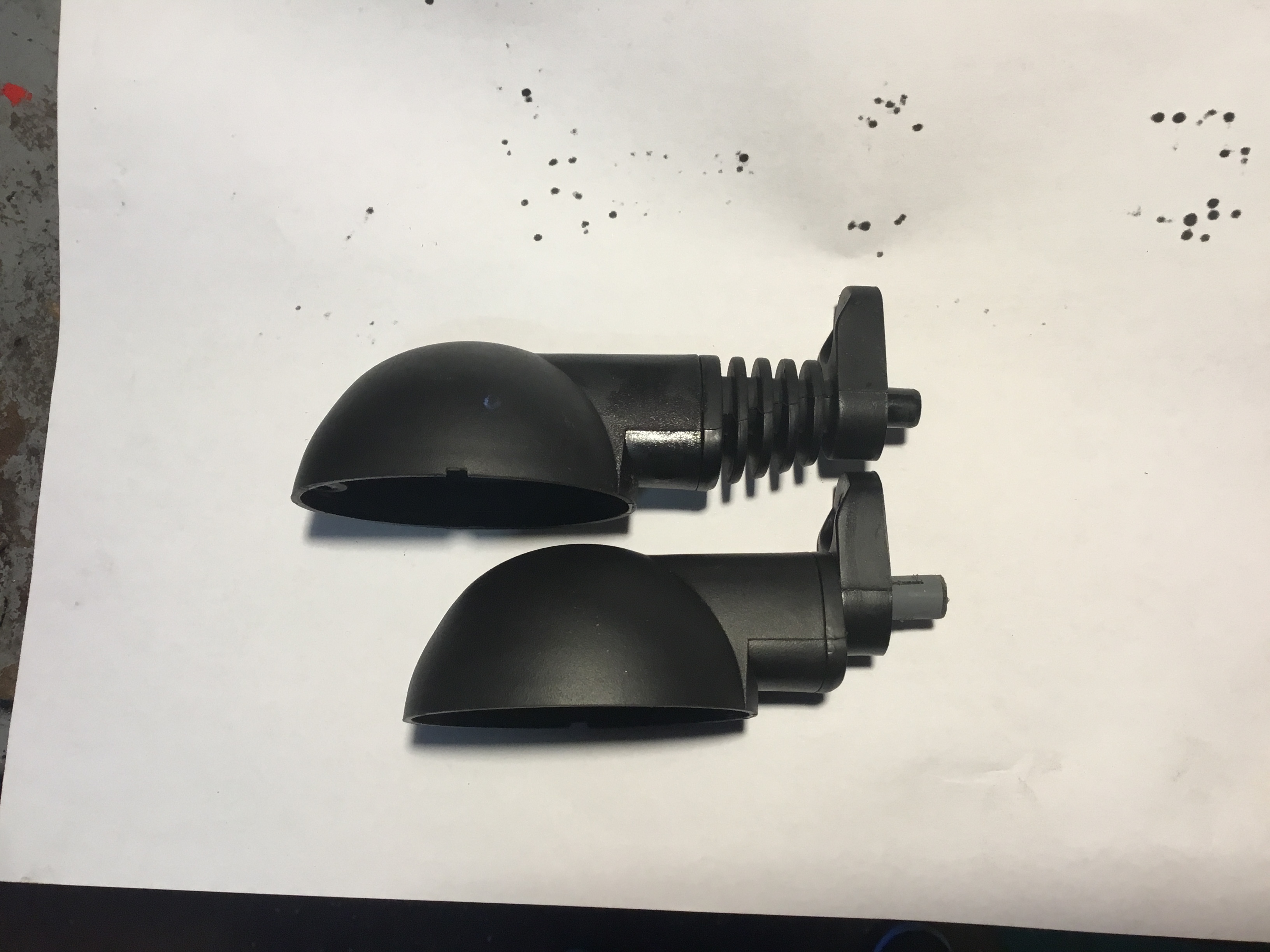

    comparison....


    result, minus the barn door number plate...


    • Like Like x 14
