  1. Wire-Wheels

    Wire-Wheels Elite Member

    Apr 26, 2019
    2,497
    800
    California - USA
    #21 Wire-Wheels, Feb 26, 2020
    Looks like it grounds through the chassis. I think you just need to run a wire off your power source [either at the battery or fuse panel] through a fuse and a switch to that white wire. I would also add a relay myself, and power it off the ignition curcuit so that when you shut the key off the relay opens and shuts the light off. ...J.D.

    • Like Like x 1
    • Agree Agree x 1
  2. Guillermo salinas

    Guillermo salinas Well-Known Member

    Aug 17, 2019
    161
    93
    Azusa
    #22 Guillermo salinas, Feb 26, 2020
    I like your idea but am going to need more help. Can you recommend an online kit with all you suggested?

  3. Wire-Wheels

    Wire-Wheels Elite Member

    Apr 26, 2019
    2,497
    800
    California - USA
    #23 Wire-Wheels, Feb 26, 2020
    Sorry. Kind of hard to help from here. I am a long way from you. I usually buy pieces as I find them, and put things together as I need them out of my own parts bins. Do you have a riding buddy that can help out ? ...J.D.


  4. Guillermo salinas

    Guillermo salinas Well-Known Member

    Aug 17, 2019
    161
    93
    Azusa
    #24 Guillermo salinas, Feb 26, 2020
    Non that are mechanically inclined. I guess I better take it to a shop. Aside from parts what would you say is a ballpark rate for this install?

  5. Wire-Wheels

    Wire-Wheels Elite Member

    Apr 26, 2019
    2,497
    800
    California - USA
    #25 Wire-Wheels, Feb 26, 2020
    Last edited: Feb 26, 2020
    This points to one of my biggest frustrations in life. Nobody fixes anything these days. I even have a very difficult time even buying parts and supplies to do this work. Seems like if you are under about 60 yrs. old it has to come in a box. No one seems to know how to even solder a wire, or change a fuse. In my generation we were doing these things in Jr.High School. Very frustrating. I guess I'm just obsolete. ...J.D.

    • Like Like x 1
  6. Guillermo salinas

    Guillermo salinas Well-Known Member

    Aug 17, 2019
    161
    93
    Azusa
    #26 Guillermo salinas, Feb 26, 2020
    That make you more valuable

  7. Wire-Wheels

    Wire-Wheels Elite Member

    Apr 26, 2019
    2,497
    800
    California - USA
    #27 Wire-Wheels, Feb 26, 2020
    No Gil. At 74 I am unemployable. Good thing I was savvy enough to prepare for my future with 2 fat pensions and Social Security. I haven't worked in over 11 years. Nobody wants an old guy. We are too expensive. ...J.D.

  8. Guillermo salinas

    Guillermo salinas Well-Known Member

    Aug 17, 2019
    161
    93
    Azusa
    #28 Guillermo salinas, Feb 26, 2020

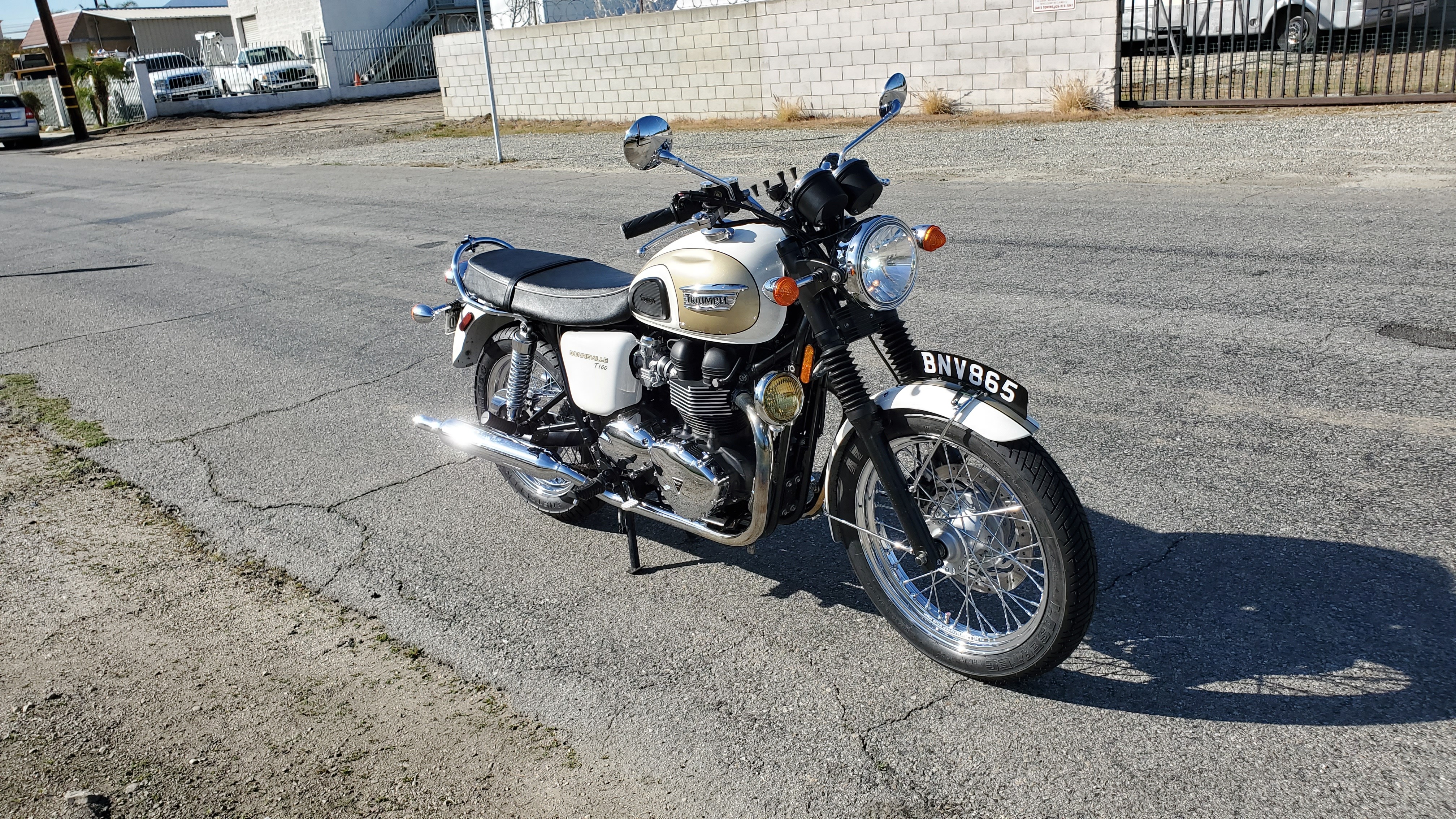

    Here is what it looks like. I forgot to put the tax disc back on. The fog light is mounted but not functional. I just dropped the bike off at a local motorcycle shop. I'm not that skilled so I'm going to have to come out of pocket.




    • Like Like x 2
  9. Wire-Wheels

    Wire-Wheels Elite Member

    Apr 26, 2019
    2,497
    800
    California - USA
    #29 Wire-Wheels, Feb 27, 2020
    Looks good ! :) ...J.D.

    • Agree Agree x 2
  10. Guillermo salinas

    Guillermo salinas Well-Known Member

    Aug 17, 2019
    161
    93
    Azusa
    #30 Guillermo salinas, Feb 28, 2020
    I have the like fully functional now.

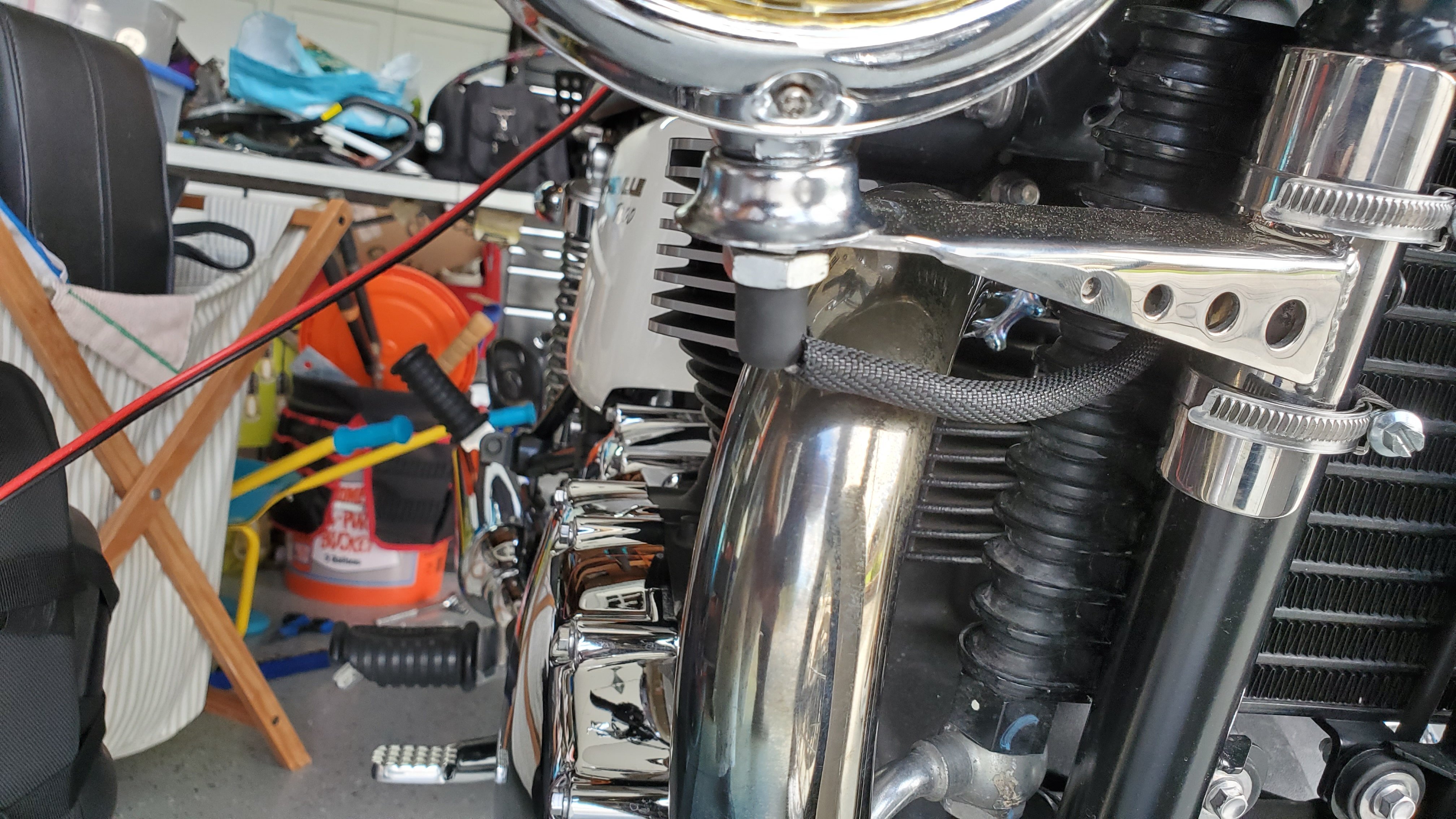

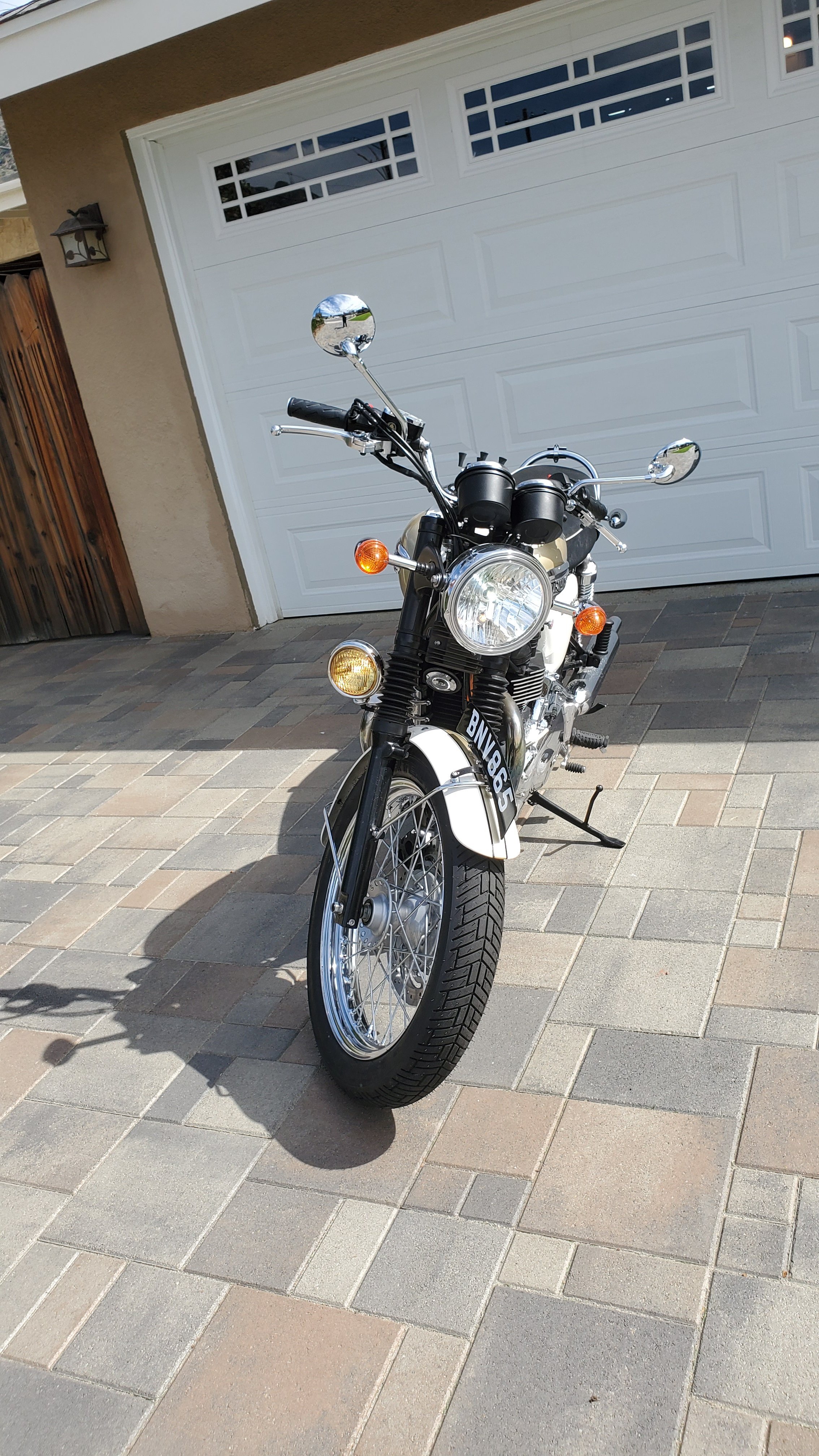

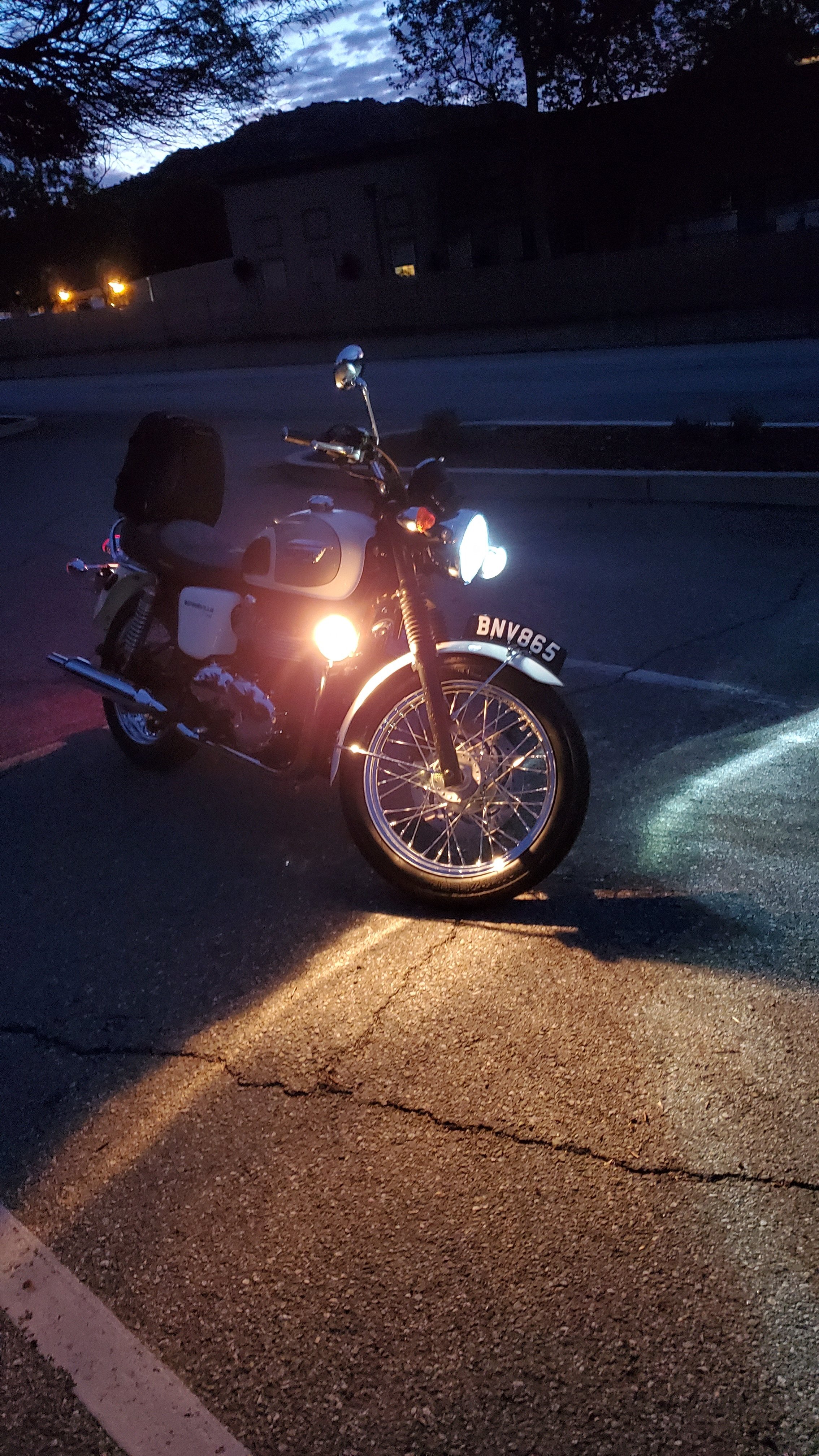

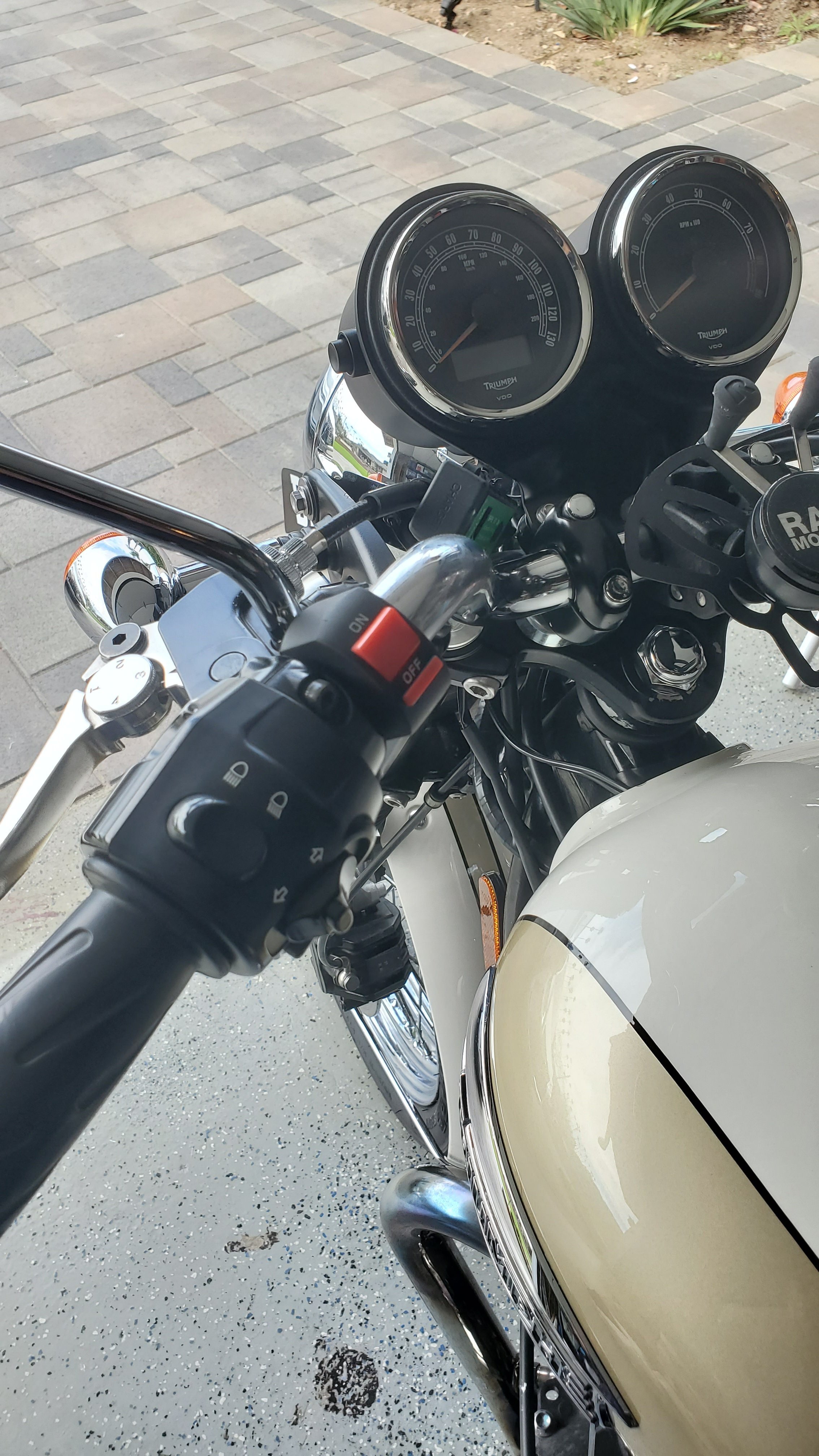

    I have the light fully functional now. They went straight to the battery with a fuse and a toggle switch on the handlebar. I I forgot to mention the relay, oh well. I'll upload some pictures when it's dark as soon as get a chance.





    • Like Like x 4
  11. Wire-Wheels

    Wire-Wheels Elite Member

    Apr 26, 2019
    2,497
    800
    California - USA
    #31 Wire-Wheels, Feb 29, 2020

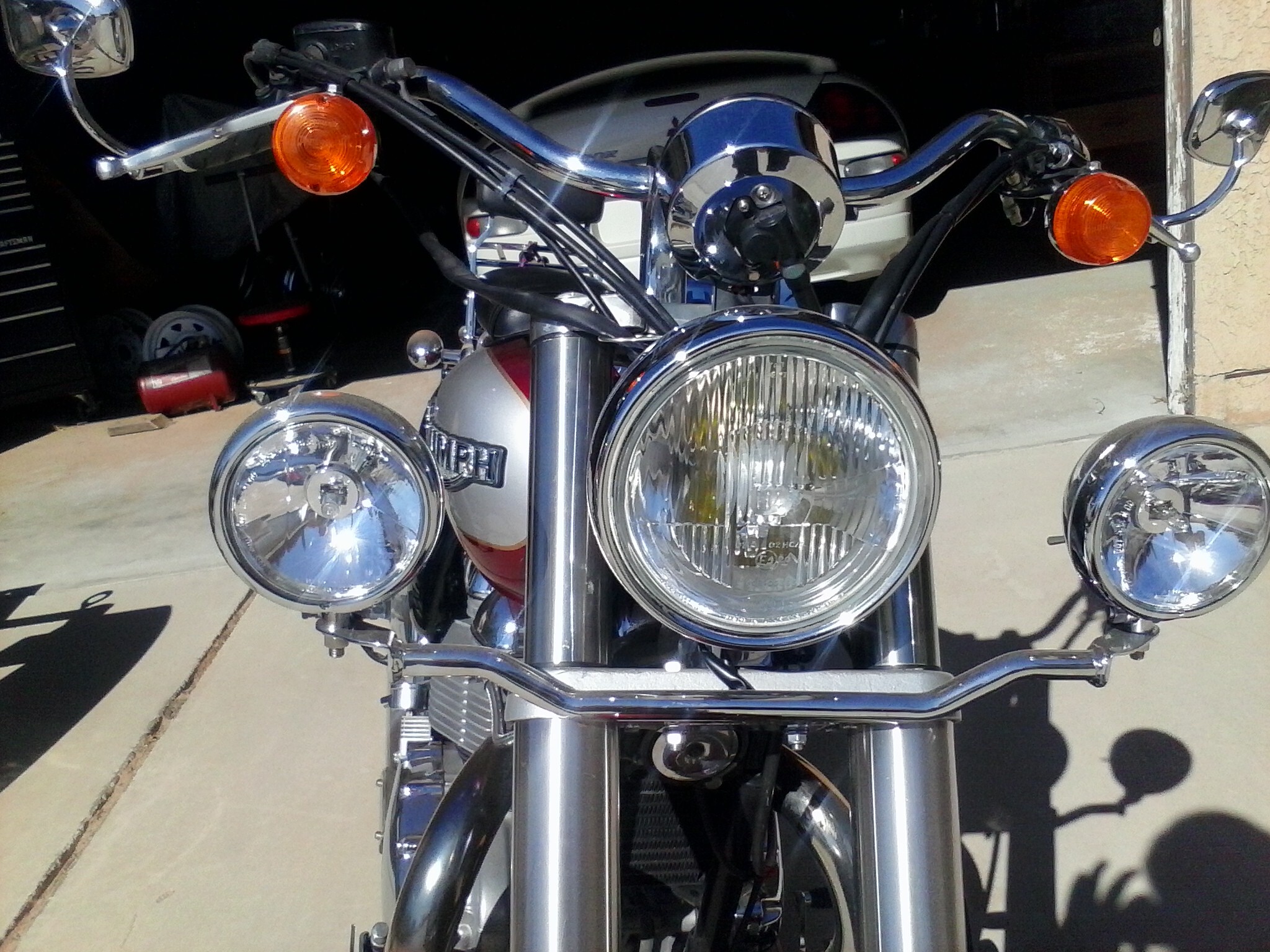

    Gil: Mine is an America so I added these. They were a factory option on Americas and Speedmasters but I don't think you can get them anymore. ...J.D.
    Passing Lights.jpg

    • Like Like x 3
  12. Guillermo salinas

    Guillermo salinas Well-Known Member

    Aug 17, 2019
    161
    93
    Azusa
    #32 Guillermo salinas, Feb 29, 2020
    Those are nice, a pair like Noah's ark. The extra lighting must be nice

    • Like Like x 1
    • Funny Funny x 1
  13. Guillermo salinas

    Guillermo salinas Well-Known Member

    Aug 17, 2019
    161
    93
    Azusa
    #33 Guillermo salinas, Feb 29, 2020


    • Like Like x 4
  14. Wire-Wheels

    Wire-Wheels Elite Member

    Apr 26, 2019
    2,497
    800
    California - USA
    #34 Wire-Wheels, Feb 29, 2020
    Being a native of Southern California, I know you want all the light you can get. Drivers are crazy. You need to be extra safety cautious here. ...J.D.

    • Like Like x 2
  15. Don the Don

    Don the Don Bigger Than The Average Bear

    Nov 5, 2019
    2,947
    800
    MORAY UK
    #35 Don the Don, Feb 29, 2020
    Great pictures guys

    • Thanks Thanks x 1
  16. Guillermo salinas

    Guillermo salinas Well-Known Member

    Aug 17, 2019
    161
    93
    Azusa
    #36 Guillermo salinas, Mar 31, 2020
    JD,

    I want to wire it as you recommended. I want the fog light to only work when I have the switch open. I have some questions. What relay would you recommend? I hear there is a 4 prong or 5 prong. Am I looking for a certain voltage? Where would you hide the relay?

  17. Carpy

    Carpy New Member

    Feb 9, 2021
    1
    1
    La Habra heights California
    #37 Carpy, Sep 4, 2021
    Cheers my friend

    • Like Like x 1
  18. Jadorff

    Jadorff Noble Member

    Apr 14, 2019
    879
    443
    Adelaide Australia
    #38 Jadorff, Sep 13, 2021
    nice if u need the lighting iam surprised you have the plate on the front Gard in aus no front no plates ,and you would be off the road with one as they are consider dangers

  19. Wire-Wheels

    Wire-Wheels Elite Member

    Apr 26, 2019
    2,497
    800
    California - USA
    #39 Wire-Wheels, Sep 28, 2021
    Last edited: Sep 28, 2021
    Carpy & Gil: Been in So.Cal all my life. Currently living in San Bernardino County. I just did a single fog light for my Legend [no picture yet]. I had to custom fabricate it myself.. I put mine on the left though because we DO drive on the wrong side of the road here ;)
    . ...J.D.
    Sorry for the double photo. Cannot get the second.one.deleted.

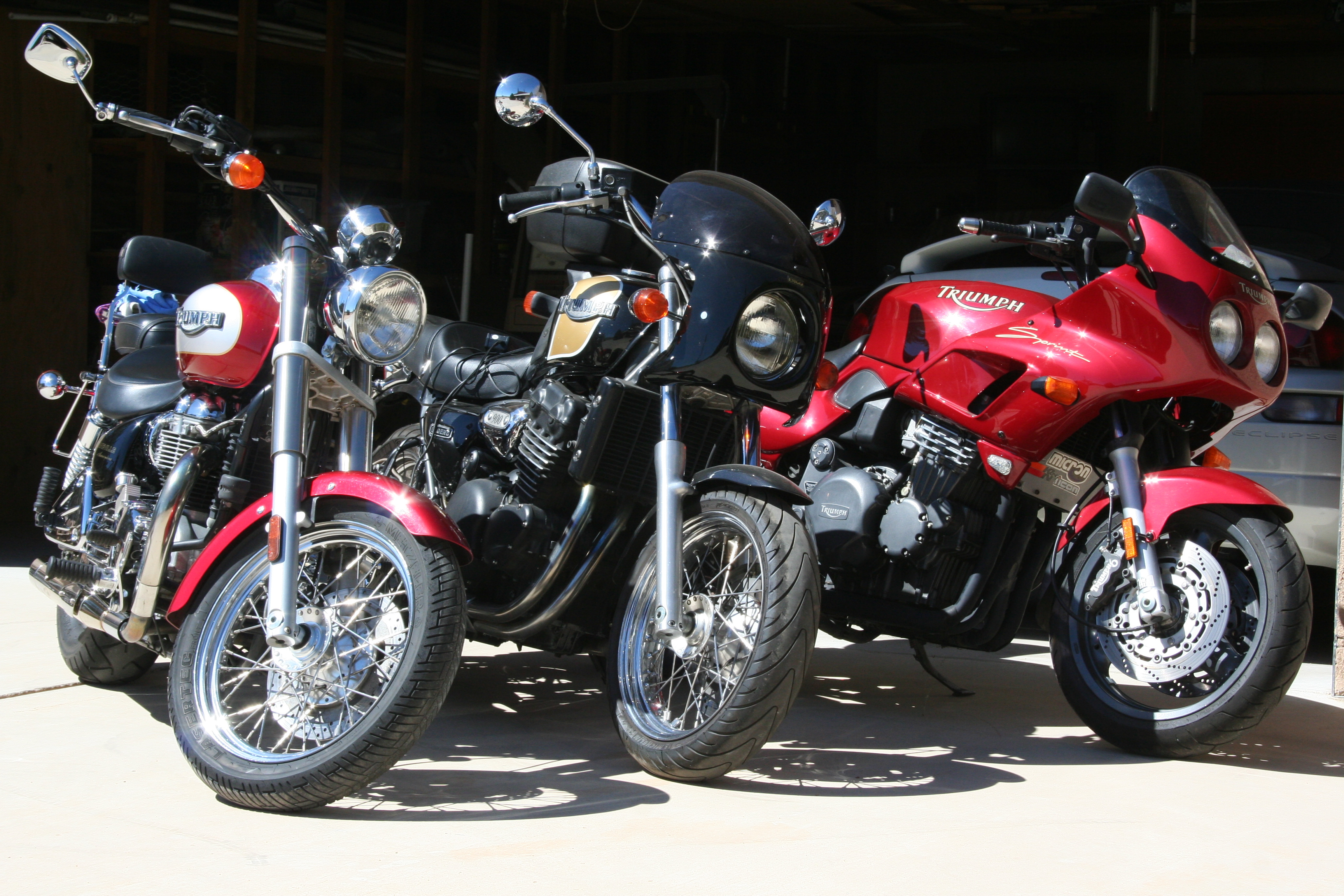

    The fleet -2015.JPG

    The fleet -2015.JPG
