Speed Triple Rs Service Manual.

Discussion in 'Speed Triple' started by Albi, Aug 31, 2019.

  1. This site uses cookies. By continuing to use this site, you are agreeing to our use of cookies. Learn More.
  1. Linx

    Linx Well-Known Member

    Mar 14, 2020
    198
    93
    Stratford Upon Avon, UK
    Aren't the torques for removing the wheels in the owners handbook?

  2. SteveRS

    SteveRS First Class Member

    Jan 12, 2019
    862
    500
    British Columbia
    Not that I can find. That’s why I downloaded those pages and more from the service manual.

  3. SteveRS

    SteveRS First Class Member

    Jan 12, 2019
    862
    500
    British Columbia

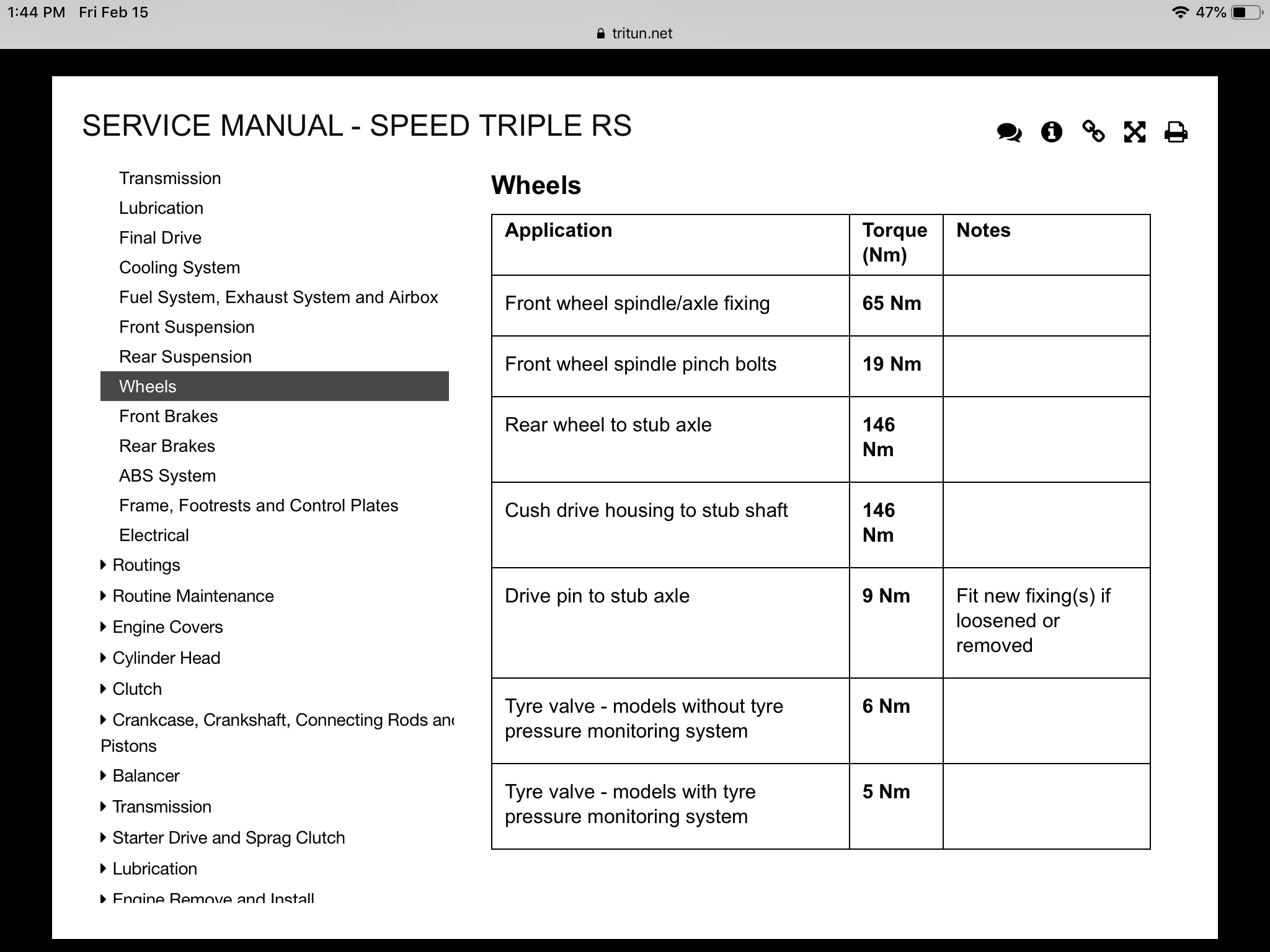

    Here is that page.


    • Like Like x 2
  4. Ducatitotriumph

    Ducatitotriumph Crème de la Crème

    Apr 25, 2019
    2,181
    1,000
    Rothwell
    Hi there,
    Rs 18 model. I bloody love it (no qs BUT I have had the gearbox bang without one on it )

  5. Col_C

    Col_C I can't re...Member

    Aug 5, 2015
    1,431
    800
    Cornwall
    Haven't seen the manual in question but Ohlins forks were fitted to pre 2018 Speed Triple R's too, there are seperate sections in my service manual for the R forks etc. (my 94R has black anodised Ohlins identical to the later bikes).
    It is critical that the pinch bolts on Ohlins forks are not over tightened, there have been cases primarily on Ducatis, of the lower casting cracking due to this. One of the reasons why I would never take my bike to a tyre depot for wheel removal.

    • Like Like x 3
  6. SuperHans

    SuperHans Senior Member

    Mar 11, 2020
    297
    113
    Sweden
    Very good info, its these sort of things that I want the real workshop manual for. Or a manual that cover the years of the bike.
    Things has changes throughout the years and its important that stuff like the right torque is applied.

  7. SteveRS

    SteveRS First Class Member

    Jan 12, 2019
    862
    500
    British Columbia

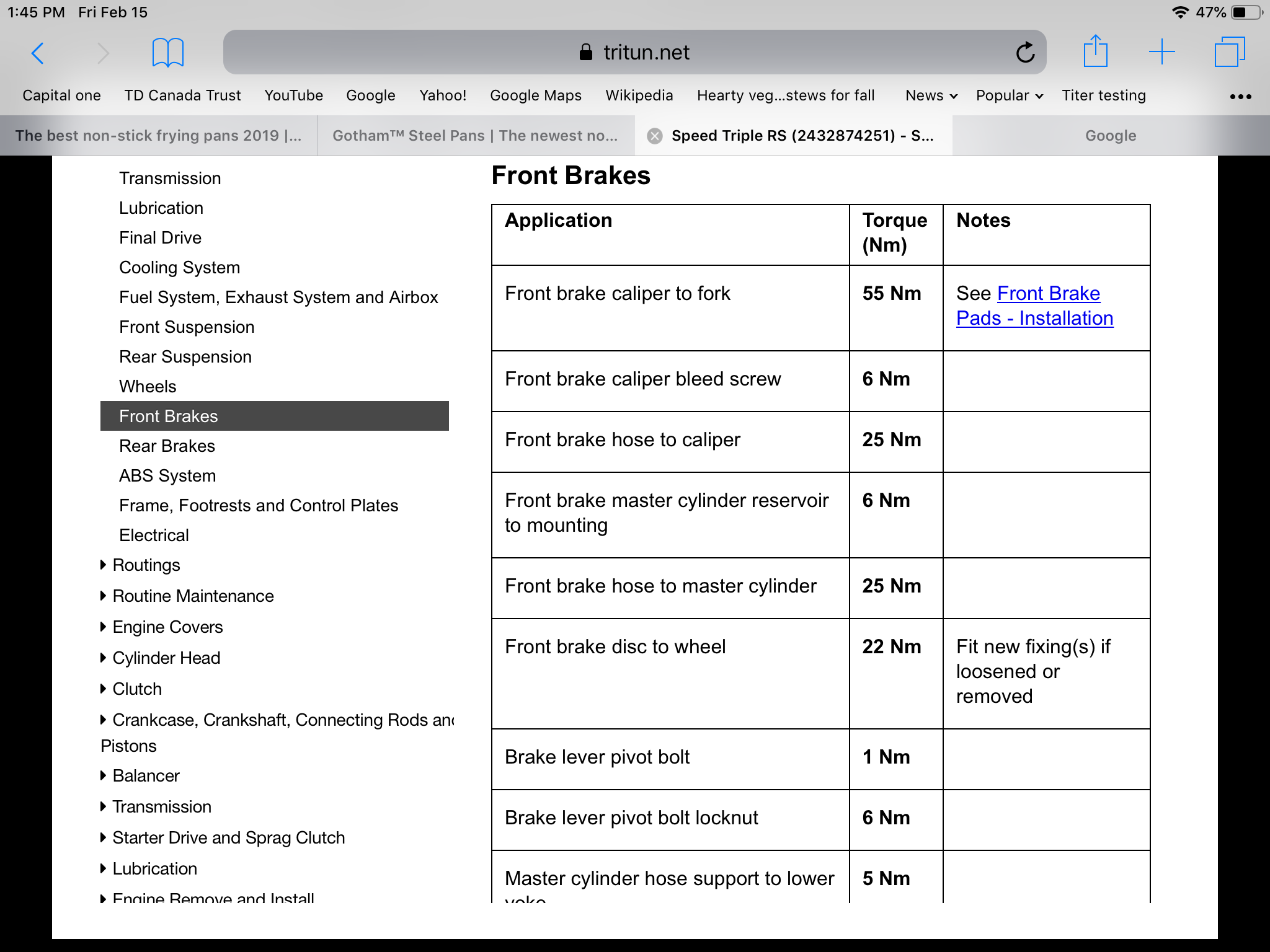

    Then your caliper torque setting is 55nm.


    • Thanks Thanks x 1
  8. SuperHans

    SuperHans Senior Member

    Mar 11, 2020
    297
    113
    Sweden
    @SteveRS

    Was it tricky to download the papers.
    Do you need to save every individual paper as a separate PDF. Or can you do a printout to PDF of the whole document?

  9. SteveRS

    SteveRS First Class Member

    Jan 12, 2019
    862
    500
    British Columbia
    It was a while ago so I don’t quite remember exactly how it was done. But I believe you just save them as you went along. It was pretty easy for the most part. Here is the link.https://www.tritun.net/tritun/vehicle/lookupForm

    • Thanks Thanks x 2
