    #21 Red Thunder, Jul 8, 2018
    Last edited: Jul 8, 2018

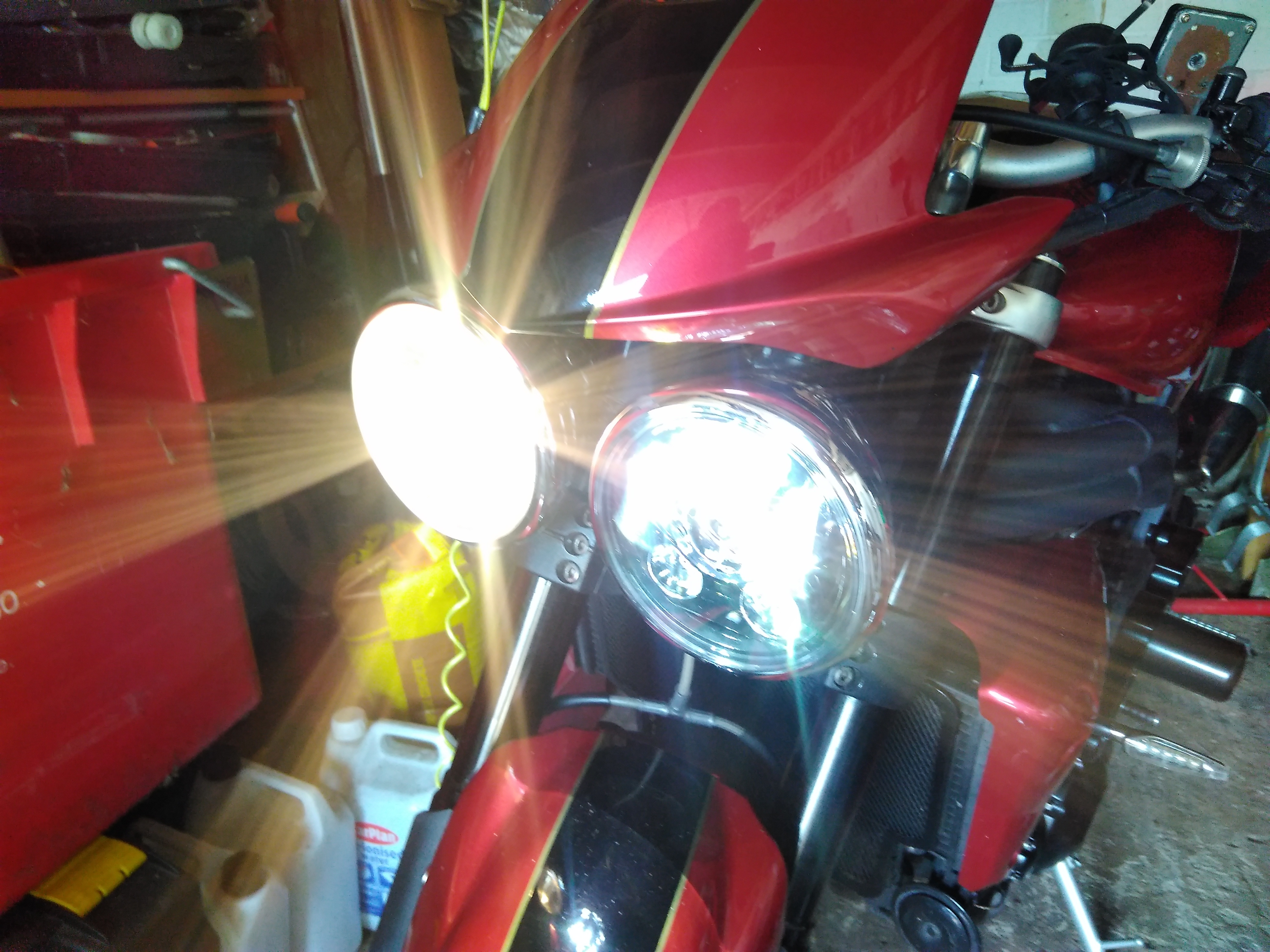

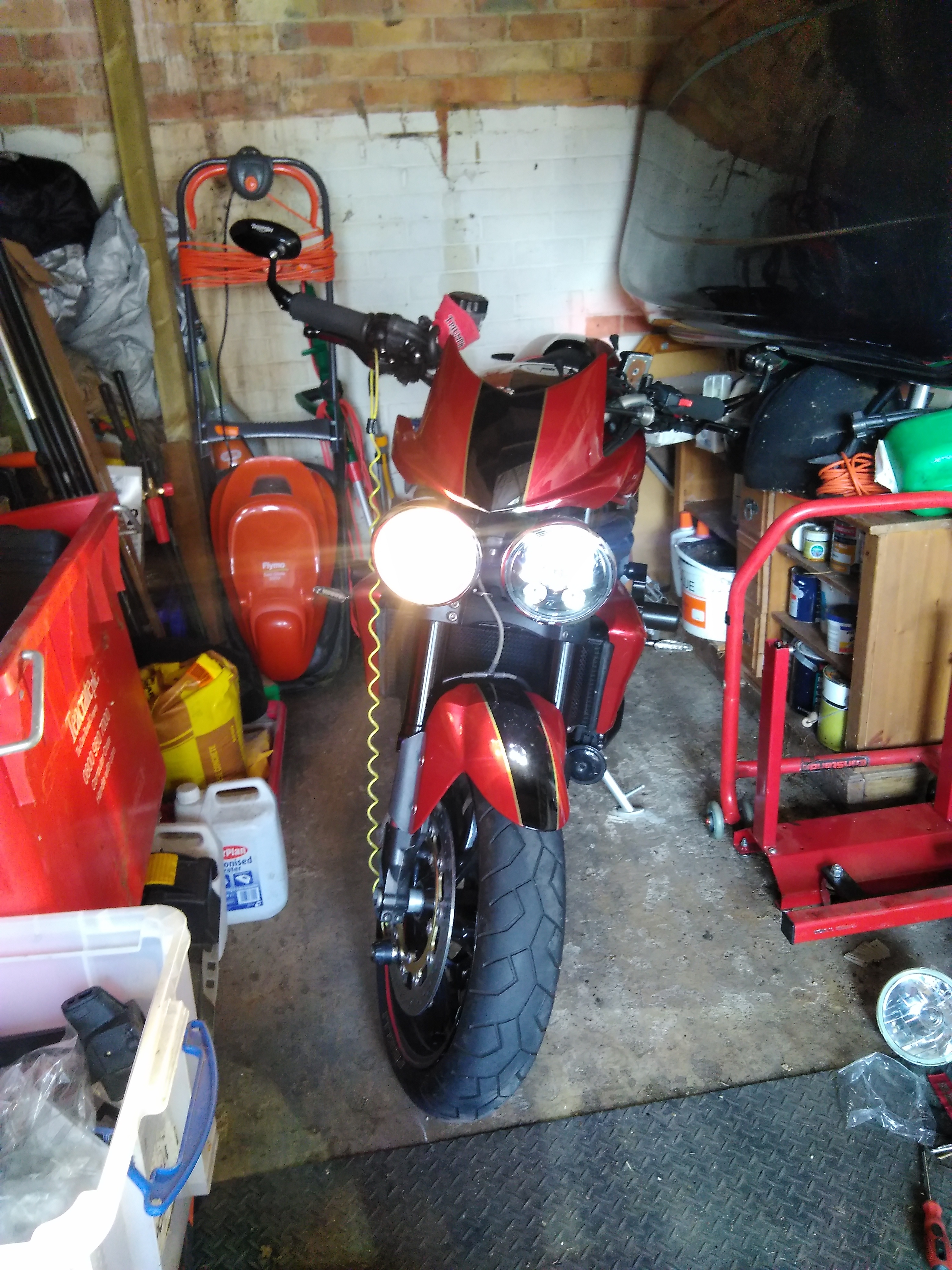

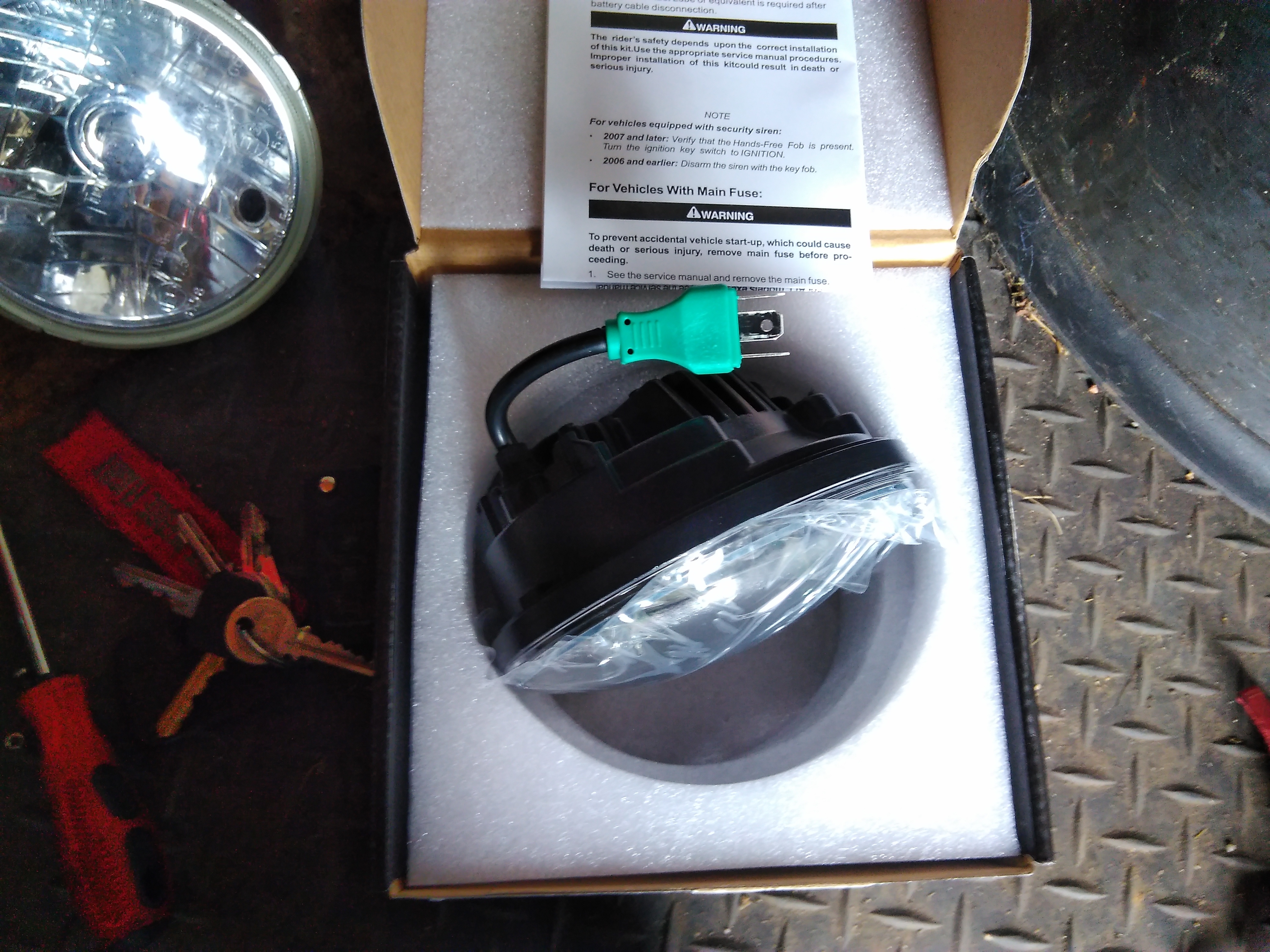

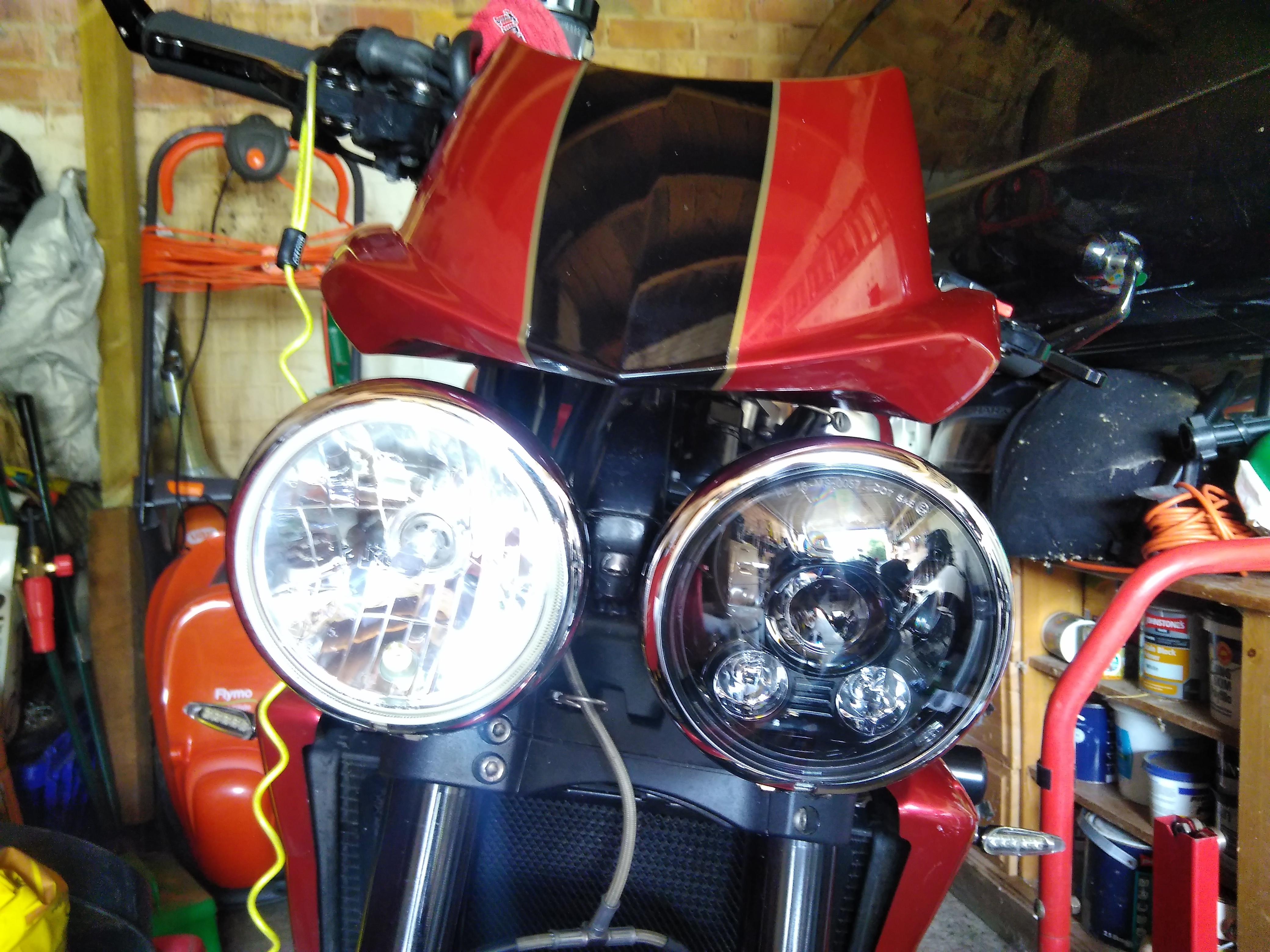

    Installed one of the Wisamic 5.75" LED headlights, the other is arriving later

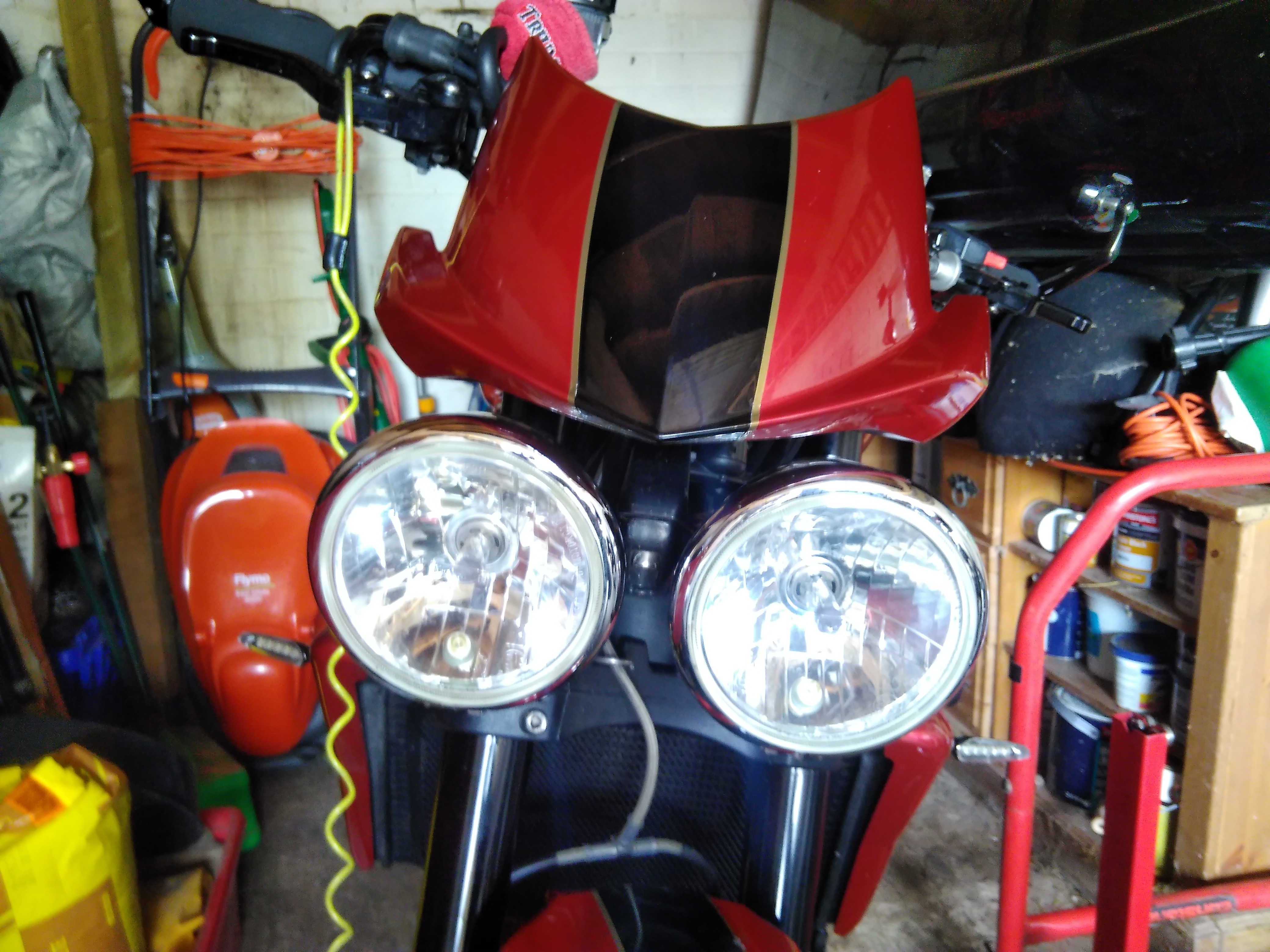

    Speed Triple 2010 round headlights

    Remove the screw at the bottom making sure the nut is kept safe

    Remove the ring and pull out the old lamp, there is a ring bracket behind there keep this in place, you will need it
    Unplug H4 bulp connection and DRL light.
    Plug in new lamp, tuck wires to the back of the dome

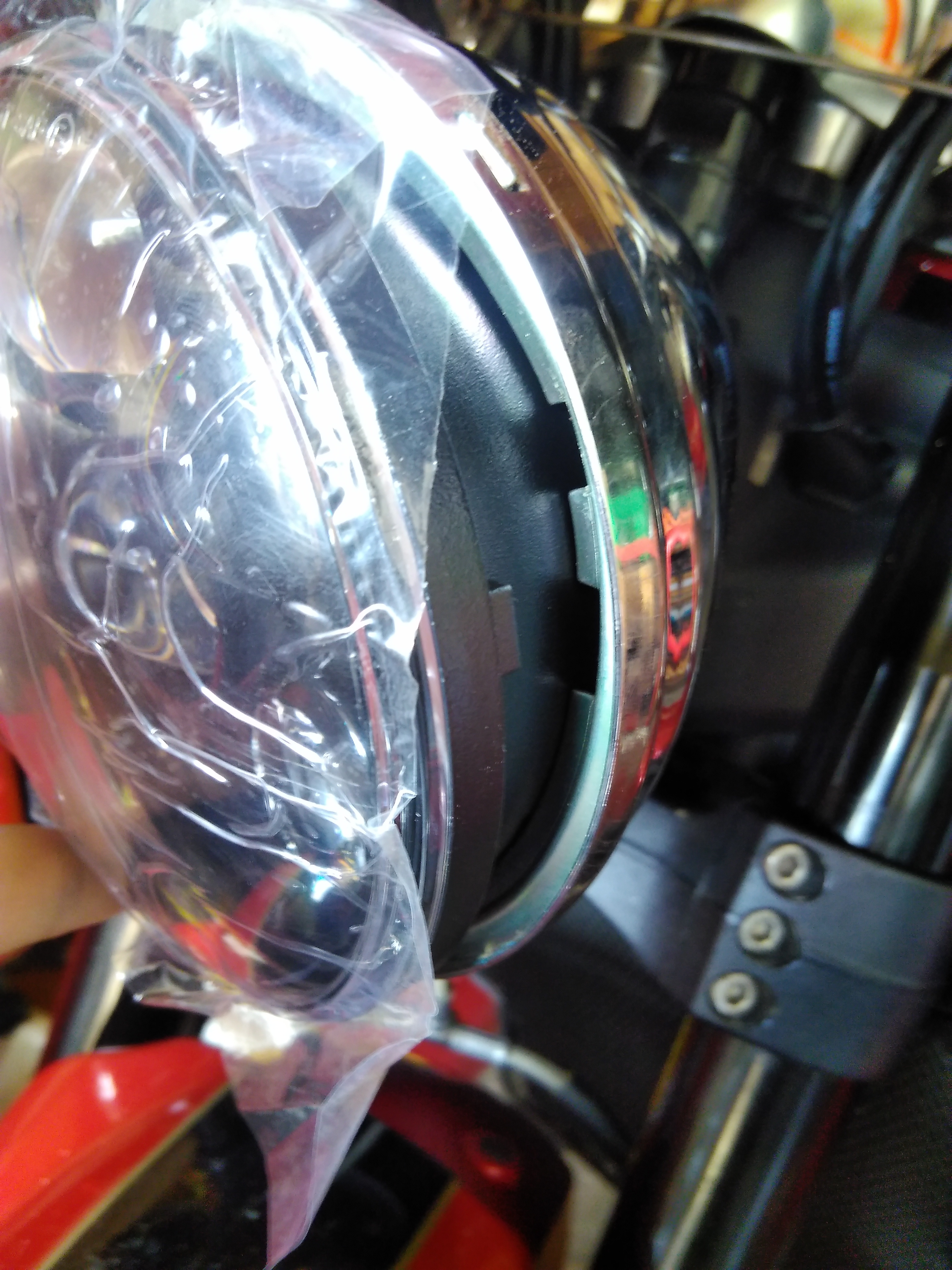

    Offer up the new lamp alignment ing the tab at the side with the the locating gap in the ring bracket
    Secure the ring with the screw and nut
