Featured Bonneville Rescue

Discussion in 'Builds & Projects' started by Dennis Schermerhorn, Dec 4, 2018.

Page 3 of 4
  1. darkman

    darkman Crème de la Crème

    Oct 26, 2015
    7,629
    1,000
    Southcoast of the UK Earth
    #41 darkman, Dec 21, 2018
    No probs Dennis, you can even get original cloth type tape that is glued to wrap any loom you make or you could just buy a new loom as Lucas are making them again.

  2. Dennis Schermerhorn

    Dennis Schermerhorn Well-Known Member

    Nov 26, 2018
    83
    68
    Connecticut
    #42 Dennis Schermerhorn, Dec 29, 2018
    Hey darkman, I have a new question I'm trying to put electric ignition in my t 140. In the timing case under the round cover I see for holes where the pillar bolts can go two in the top two at the bottom. The bottom right hole has a stud broke off in it. Do I need that whole or can I work around it with the other three holes. Do the little screws that hold on the cap, screw into the back of the pillar bolts or do they go into one of those four holes.

  3. Tricky-Dicky

    Tricky-Dicky Crème de la Crème

    Dec 12, 2016
    2,441
    1,000
    Norfolk UK
    #43 Tricky-Dicky, Dec 29, 2018
    Some timing covers came with just two holes to fit the points plate and some with four, you may need either depending on which make of electronic ignition you get, they are usually static set with a spacer before using a timing strobe, so it may pay you to try and remove the broken stud.

    • Like Like x 1
  4. darkman

    darkman Crème de la Crème

    Oct 26, 2015
    7,629
    1,000
    Southcoast of the UK Earth
    #44 darkman, Dec 29, 2018
    As TD has explained if you can get bolt out then do so, if not you could do a trial fit as you have 2 other holes to use and the 2 cap screws go in pillar studs to lock pillar studs tight, never over tighten the pillar studs as the electronic backing plate will crack, just nip them up as its the cap screws hold it all tight.

  5. Dennis Schermerhorn

    Dennis Schermerhorn Well-Known Member

    Nov 26, 2018
    83
    68
    Connecticut
    #45 Dennis Schermerhorn, Dec 30, 2018
    As long as the cap bolts go into pillar bolts I think I can get away with two as the trigger plate has room to rotate clockwise or counter clockwise to fine tune. Thx...
    Thx darken and TD, I could do a trial fit, quite sure I won't be able to remove broken bolt, but future adjustments might be limited and the cap would be cock-eyed. Bidding for a replacement cover on Ebay. Only $15.00 right now and no bidders.

    • Like Like x 1
    • Useful Useful x 1
  6. Daniel Wright

    Daniel Wright Member

    Jan 26, 2018
    35
    18
    Cannock, Staffordshire
    #46 Daniel Wright, Jan 26, 2019

  7. Daniel Wright

    Daniel Wright Member

    Jan 26, 2018
    35
    18
    Cannock, Staffordshire
    #47 Daniel Wright, Jan 26, 2019

    • Like Like x 4
  8. Wessa

    Wessa Cruising

    Apr 27, 2016
    11,616
    1,000
    North West England
    #48 Wessa, Jan 26, 2019
    Hey Dennis been following your progress; do you have any pictures of your rebuild thus far?
    Wessa

  9. Dennis Schermerhorn

    Dennis Schermerhorn Well-Known Member

    Nov 26, 2018
    83
    68
    Connecticut
    #49 Dennis Schermerhorn, Jan 26, 2019

  10. Wessa

    Wessa Cruising

    Apr 27, 2016
    11,616
    1,000
    North West England
    #50 Wessa, Jan 26, 2019
    No picture mate......

  11. Dennis Schermerhorn

    Dennis Schermerhorn Well-Known Member

    Nov 26, 2018
    83
    68
    Connecticut
    #51 Dennis Schermerhorn, Jan 26, 2019

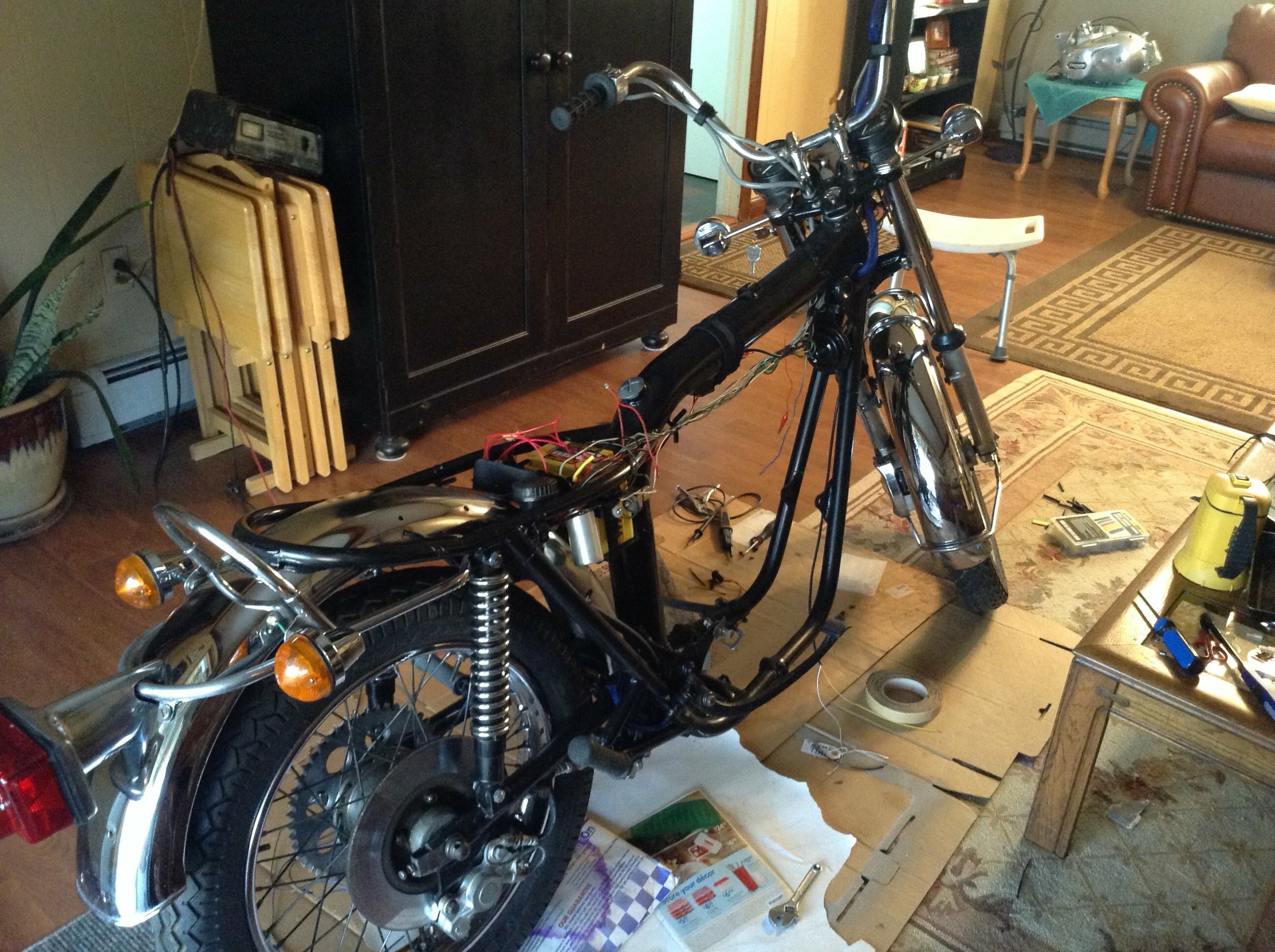

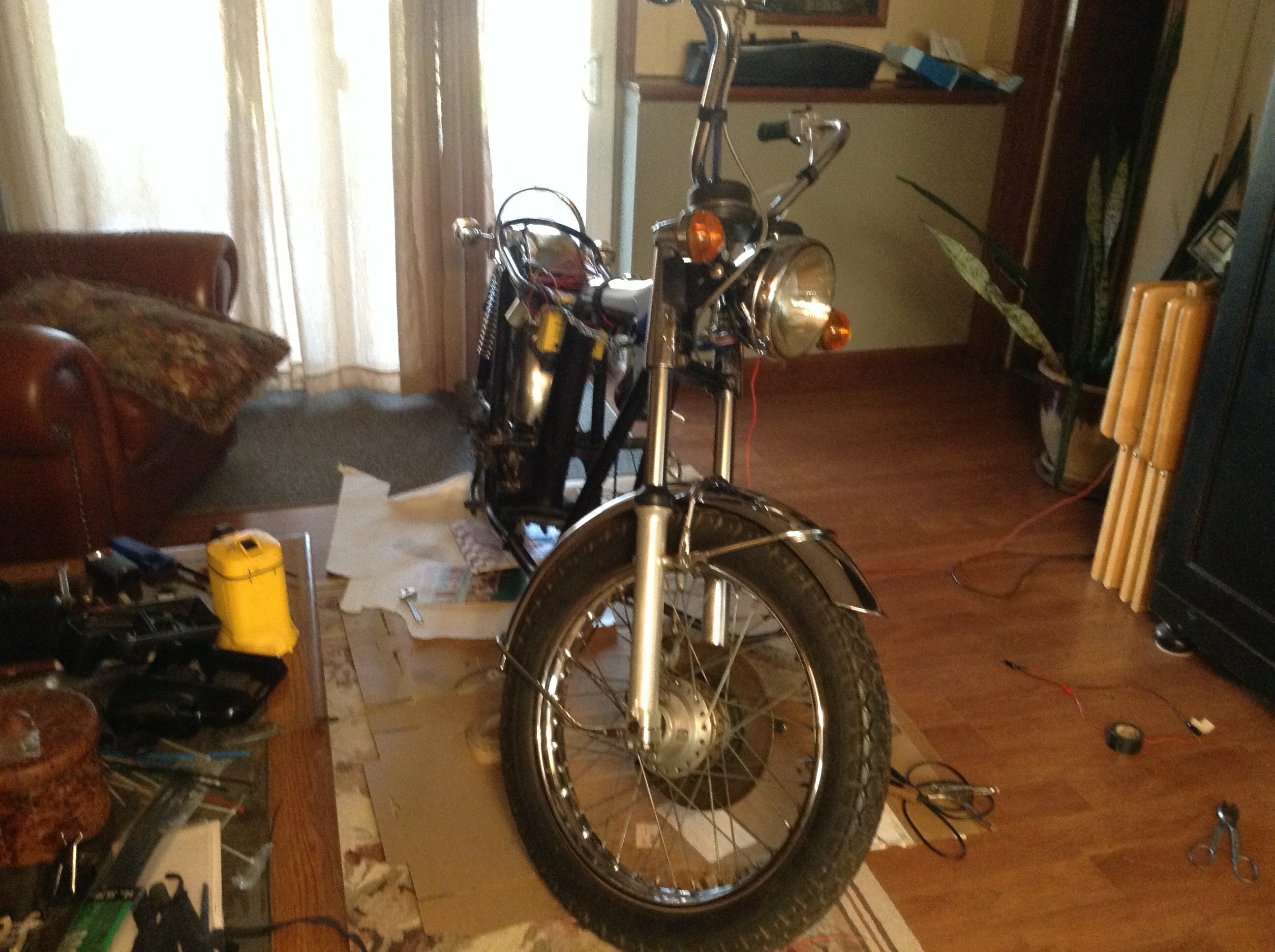

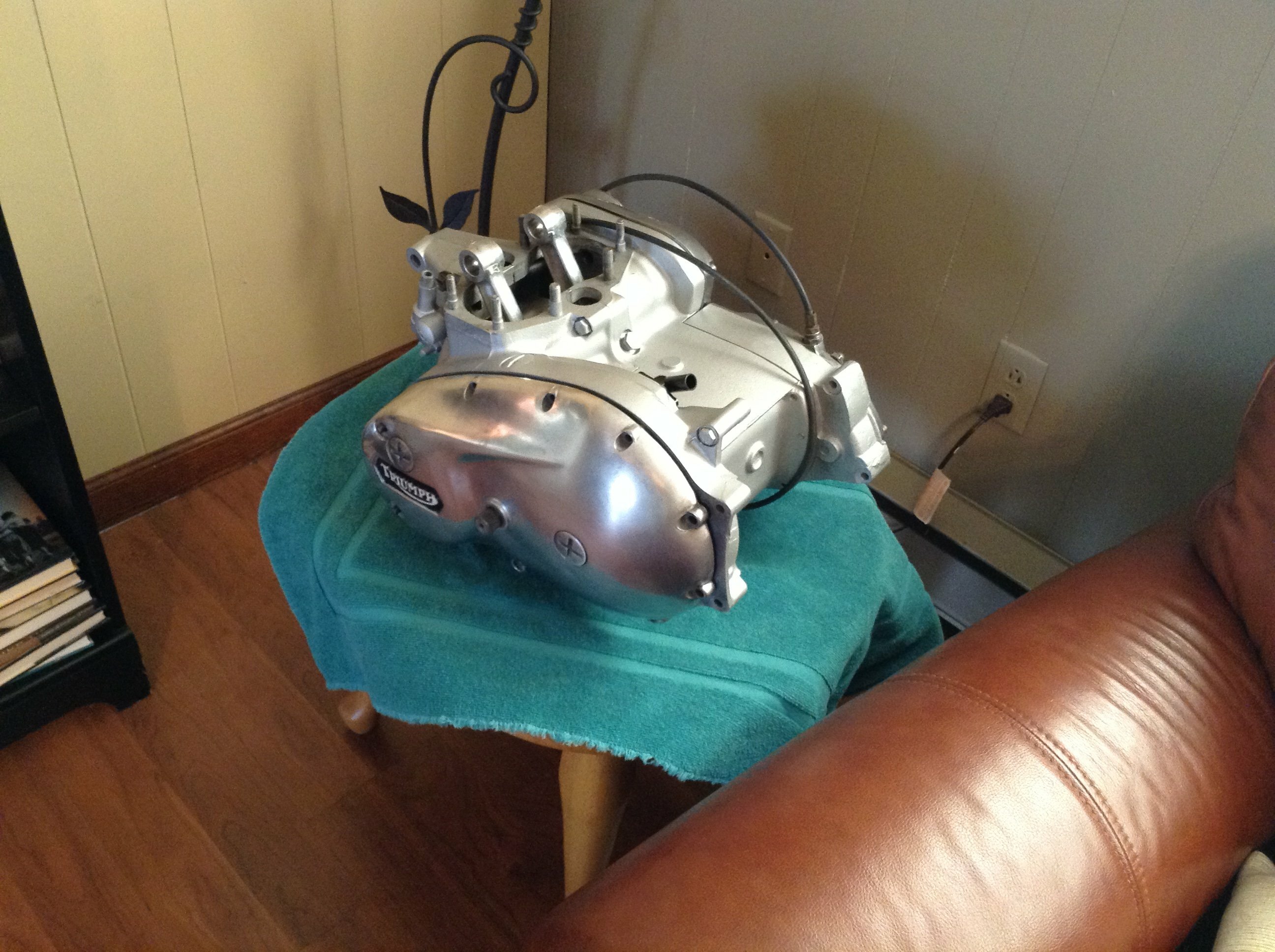

    Hey Wessa, just finished wiring the bike. Have no experience with electrical wiring so it was an interesting journey. I panicked a little when I realized it was positive ground, but one step at a time, and some help from darkman I got more comfortable with a wiring diagram and with a lot of trial and error I got through it and everything seems to be working. Still have to wire the engine. The bottom is all assembled but the. Jugs are being machined .20 over and haven't got them back yet. It's been a lot of fun and has kept me buisy this winter. Thanks for the interest. Dennis





    • Like Like x 4
  12. Wessa

    Wessa Cruising

    Apr 27, 2016
    11,616
    1,000
    North West England
    #52 Wessa, Jan 26, 2019

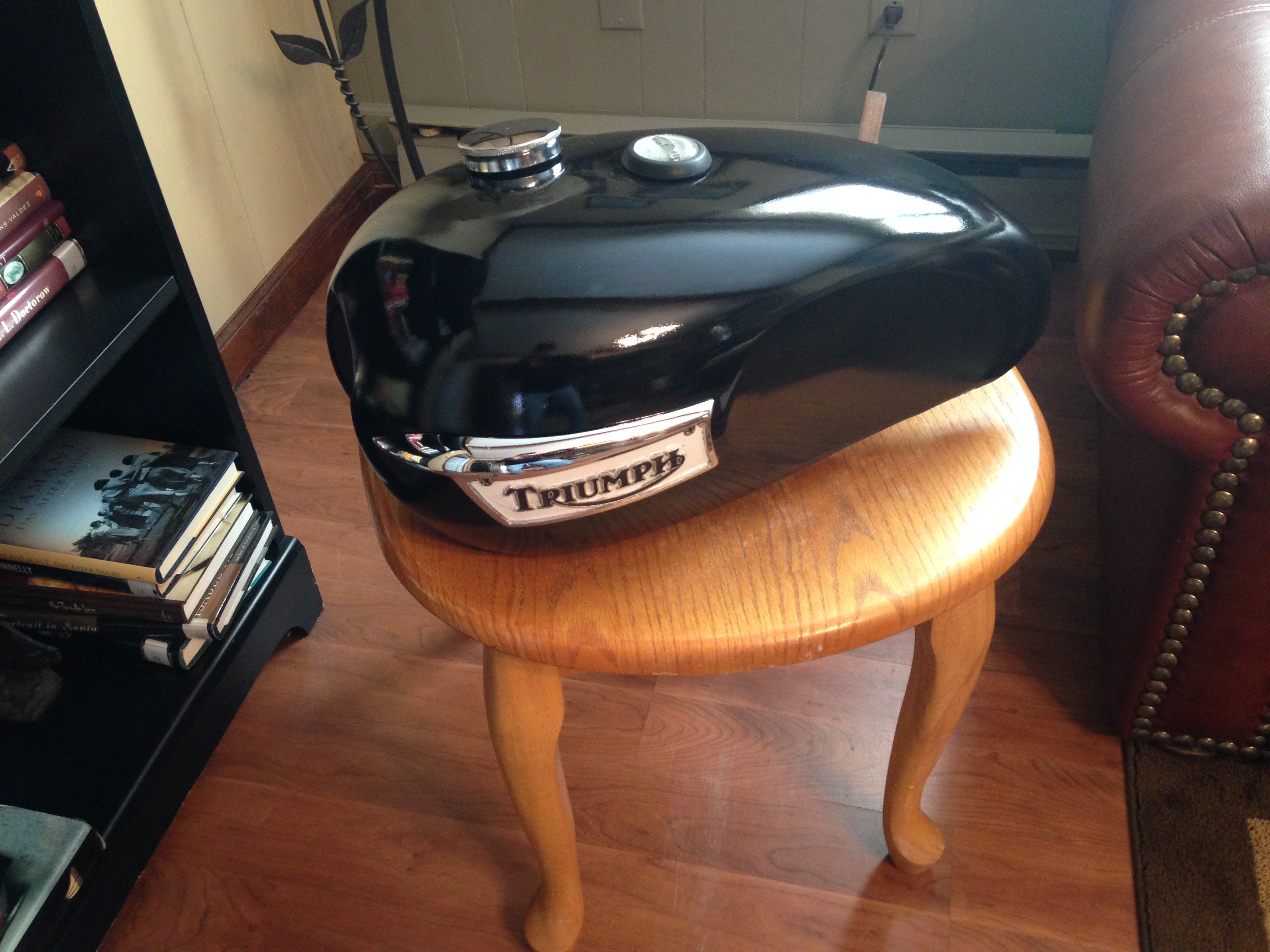

    Wow it is coming along beautifully, I bet you cannot wait to get it all back together. I would love to be able to do something like that, but I'm afraid it is well beyond my capabilities.
    Wessa

    • Like Like x 1
    • Agree Agree x 1
  13. Daniel Wright

    Daniel Wright Member

    Jan 26, 2018
    35
    18
    Cannock, Staffordshire
    #53 Daniel Wright, Jan 27, 2019

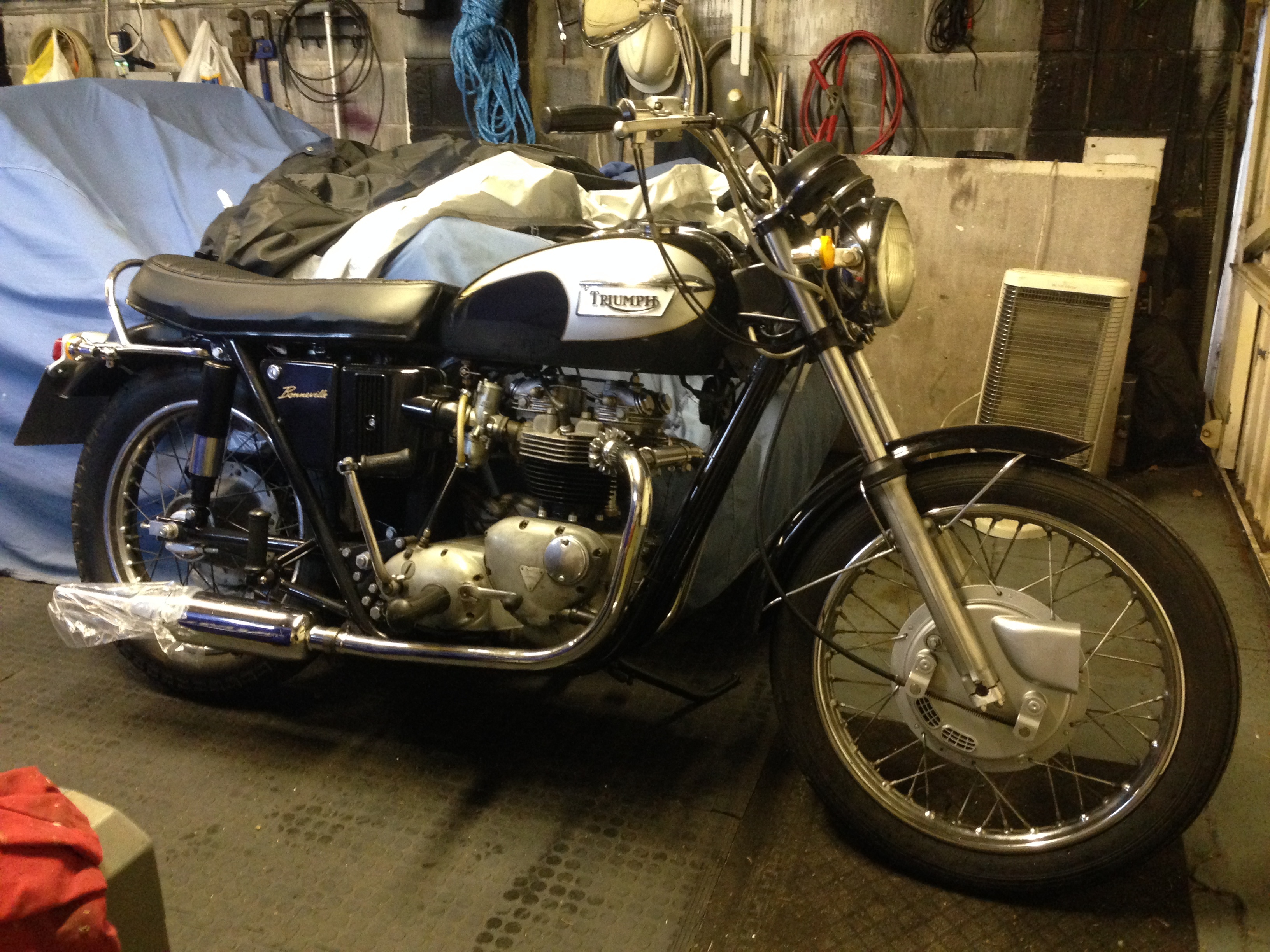

    Hi Dennis your doing a great job there mate the pictures are fab it takes me back to last winter doing my 120.
    Still a bit of head scratching for you mate will you ride her when she is finished ?.
    Regards Daniel

    • Like Like x 1
  14. Tiglet

    Tiglet Vintage Member

    Mar 28, 2016
    4,434
    1,000
    Cheshire
    #54 Tiglet, Jan 27, 2019
    Looking good Daniel.

    It’s great to hear forum members helping each other out, keep it up guys :)

    • Like Like x 1
    • Agree Agree x 1
  15. steve lovatt

    steve lovatt Something else

    May 12, 2014
    9,216
    1,000
    North Yorkshire
    #55 steve lovatt, Jan 27, 2019
    Nice one! Lot of hard work gone into the Bike already, but what a difference! :cool:

  16. curly

    curly Noble Member

    Jul 3, 2016
    758
    443
    Burton Upon Trent
    #56 curly, Jan 27, 2019
    Looking forwards to the end result!
    Keep going Dennis, it's looking great.

  17. Dennis Schermerhorn

    Dennis Schermerhorn Well-Known Member

    Nov 26, 2018
    83
    68
    Connecticut
    #57 Dennis Schermerhorn, Jan 27, 2019
    Thx Daniel

  18. Dennis Schermerhorn

    Dennis Schermerhorn Well-Known Member

    Nov 26, 2018
    83
    68
    Connecticut
    #58 Dennis Schermerhorn, Jan 27, 2019
    Thx Steve

    • Like Like x 1
  19. Dennis Schermerhorn

    Dennis Schermerhorn Well-Known Member

    Nov 26, 2018
    83
    68
    Connecticut
    #59 Dennis Schermerhorn, Jan 27, 2019
    Thx Curly

    • Agree Agree x 1
  20. TEZ 217

    TEZ 217 Crème de la Crème

    Mar 6, 2016
    3,150
    1,000
    south shields
    #60 TEZ 217, Jan 27, 2019
    Yep looking sweet, keep up the good work she'll look great I'm sure :cool:

    • Agree Agree x 1
