Back light

That position just puts back light on classed as parking/side light but nothing on front thanks for your input



After another tinker had headlight open and yes there should be a little bulb in but it's blown,cant see what this parking light bit has to do with the main element of back light ??????

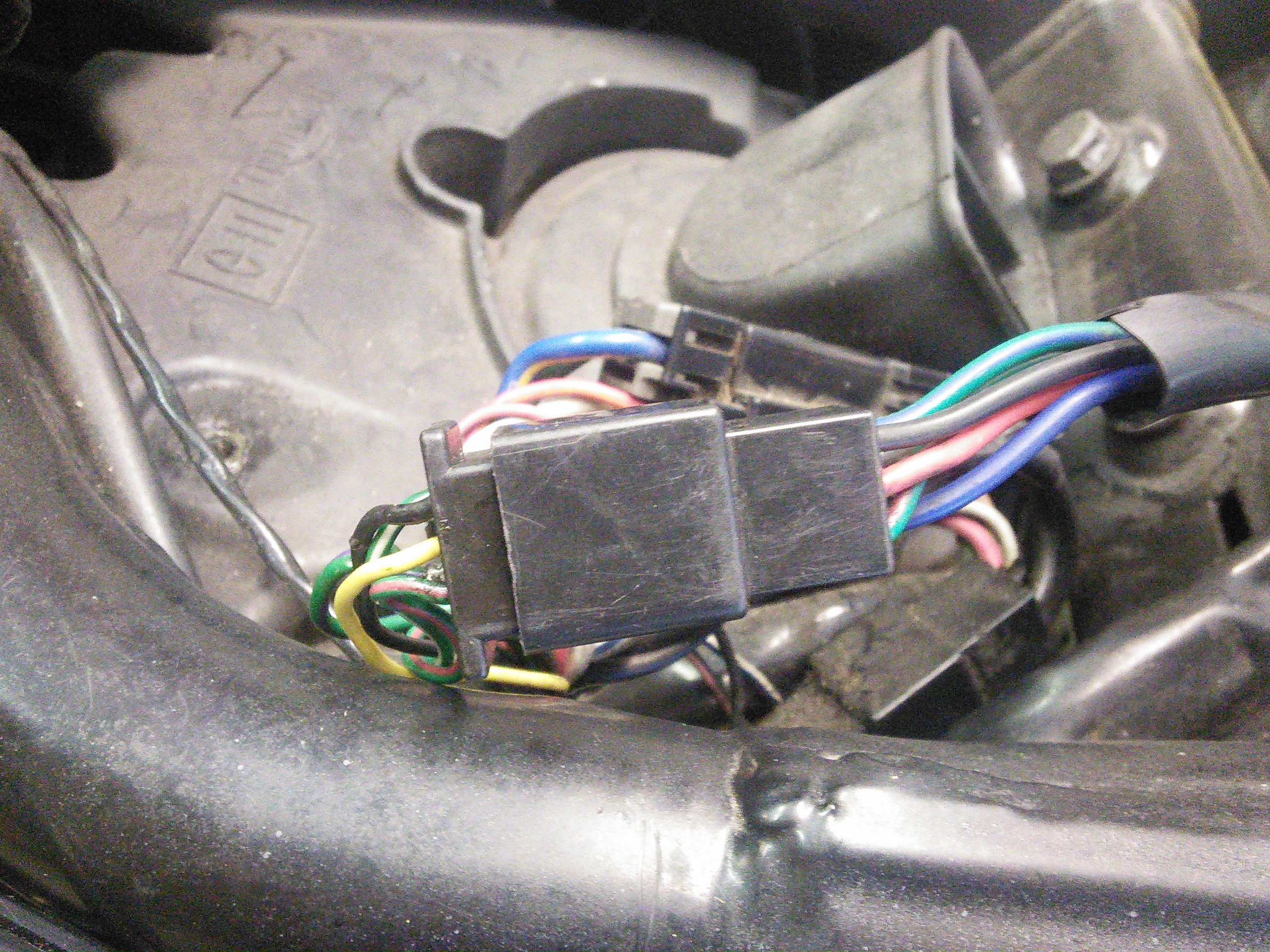

It's a bit of a basket to say it was working in this position now not,if I put multimeter onto the snap connector block under seat I get continuity to all three wires and stop light works will find small child and put into front.
Confused as before all this the light was working on that element also rear parking light coming on ???? Bitch of a job



Doing that 2moro owned bike about 5-6 month never had side light lit on front only on back only found position 3 by turning key to far so didn't realise had front side light till I checked 2 day will see if I can pick one up will update when done



Put bulb in front small light fitting checked fuses still no parking lights or main back light time for some tea



Only the parking small light and rear main element not working, think it's either the snap connection or back light bulb holder.



Plugged together I get continuity to all three wires unplugged only the black and blue mmm



speedo lights up when you turn ignition on the second part I will try 2moro as I only checked the fuse to see if ok



Fuse 10 to frame 12.9 v now little light at front comes on, this happened when I had multimeter on the fuse looked good nope so new fuse as you see wires are what you say. The back light has been on after going to take the back bulb out it came on this in position 3 more tea, the fuse box shown I know the speedometer fuse missing its the only one 5amp I have



Well you have been very patient and your feedback has kept me digging at it so will give wd a go I still think it's something to do with back light horse will keep you in contact Cheers



Is there supposed to be a light at back with switch in position 2 or have I been dreaming ???
