Discussion in 'Speed Triple' started by R_1000, Sep 15, 2016.

  1. This site uses cookies. By continuing to use this site, you are agreeing to our use of cookies. Learn More.
Page 2 of 3
  1. R_1000

    R_1000 Elite Member
    Subscriber

    Sep 2, 2016
    1,476
    700
    UK, London
    #21 R_1000, Sep 19, 2016
    Thank you Col c :)

  2. R_1000

    R_1000 Elite Member
    Subscriber

    Sep 2, 2016
    1,476
    700
    UK, London
    #22 R_1000, Sep 19, 2016

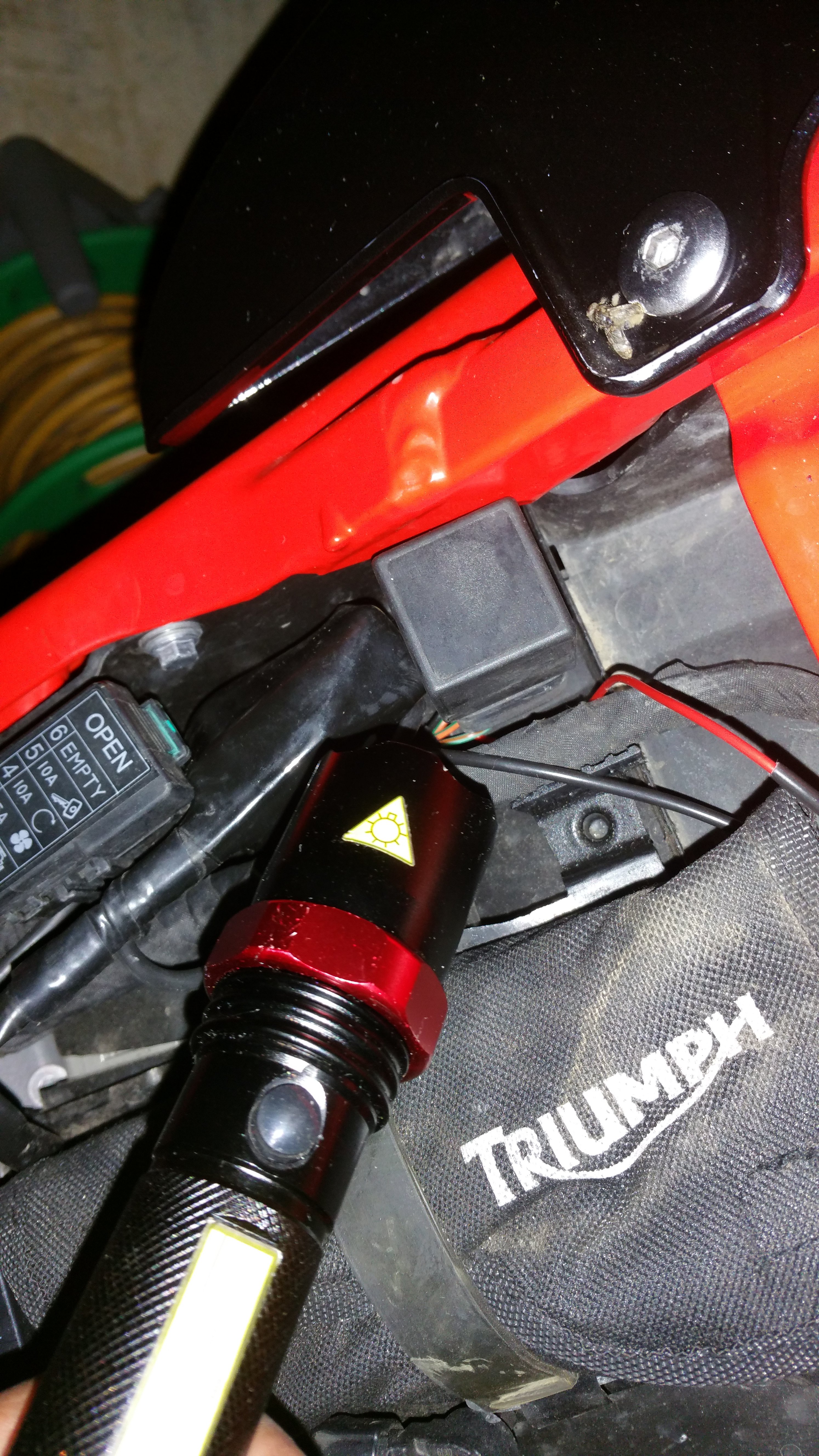

    Is this the relay I need to swap with triumph new led relay. Thank you


  3. Col_C

    Col_C I can't re...Member

    Aug 5, 2015
    1,431
    800
    Cornwall
    #23 Col_C, Sep 19, 2016
    Yes that's the relay. On some models (with only 2 wires) an additional earth wire is needed but I would think yours will already be wired in to the connector.

  4. R_1000

    R_1000 Elite Member
    Subscriber

    Sep 2, 2016
    1,476
    700
    UK, London
    #24 R_1000, Sep 19, 2016
    ^^^
    Thank you Col

    I am petrified when it comes to electrics :-(

    I just hope it's a plug n play n I don't have to mess about splicing anything

  5. R_1000

    R_1000 Elite Member
    Subscriber

    Sep 2, 2016
    1,476
    700
    UK, London
    #25 R_1000, Sep 19, 2016
    Bike is coming together nicely. Hopefully this Friday I'll be able to post some pics of my pride and joy :)

    • Like Like x 3
  6. darkman

    darkman Crème de la Crème

    Oct 26, 2015
    7,632
    1,000
    Southcoast of the UK Earth
    #26 darkman, Sep 19, 2016
    PM sent :D

  7. R_1000

    R_1000 Elite Member
    Subscriber

    Sep 2, 2016
    1,476
    700
    UK, London
    #27 R_1000, Sep 19, 2016
    Nice PM mate. At the rate you are sending me through I'm not going to be left with any money for the fuel :-(

    • Like Like x 1
  8. R_1000

    R_1000 Elite Member
    Subscriber

    Sep 2, 2016
    1,476
    700
    UK, London
    #28 R_1000, Sep 21, 2016
    Ok here we go people. ...got my indicators in today :)

    I need to drill number plate bracket hole a little bigger to feed the wire n connector through.

    As for the relay I thought it was meant to be a plug and play BUT I'm looking at connectors n wires. Beginning of my headache.

    Those indicators looks quality n sweet :)



  9. darkman

    darkman Crème de la Crème

    Oct 26, 2015
    7,632
    1,000
    Southcoast of the UK Earth
    #29 darkman, Sep 21, 2016
    What's the wiring problem :oops:

  10. R_1000

    R_1000 Elite Member
    Subscriber

    Sep 2, 2016
    1,476
    700
    UK, London
    #30 R_1000, Sep 21, 2016
    I haven't a clue. Let me check the instructions. ..I think that would be helpful; -)

    I will 1st start off with drilling the hole to ensure I can the wire through the number plate bracket. Then I shall look into the relay :)

  11. darkman

    darkman Crème de la Crème

    Oct 26, 2015
    7,632
    1,000
    Southcoast of the UK Earth
    #31 darkman, Sep 21, 2016
    Extra wire in kit is for earth it you have a 2 pin on your bike as new relay has 3 :D

  12. R_1000

    R_1000 Elite Member
    Subscriber

    Sep 2, 2016
    1,476
    700
    UK, London
    #32 R_1000, Sep 21, 2016
    :) Thanks for that buddy. I'm going to try n fit them in tonight.

    • Like Like x 1
  13. t552

    t552 Senior Member

    Nov 17, 2014
    416
    113
    Bristol UK
    #33 t552, Sep 21, 2016
    Should have got 1 13/16".
    Think its for mini stub axle. Actually better fit and 1/2" drive.

  14. R_1000

    R_1000 Elite Member
    Subscriber

    Sep 2, 2016
    1,476
    700
    UK, London
    #34 R_1000, Sep 21, 2016
    ^^^
    I managed to purchase 3/4 to 1/2 adapter. Worked fine n got the wheel off :).

    • Like Like x 2
  15. Col_C

    Col_C I can't re...Member

    Aug 5, 2015
    1,431
    800
    Cornwall
    #35 Col_C, Sep 21, 2016
    If you've got standard number plate hanger shouldn't need to do any drilling. Can feed each connector through staggered one at a time.

  16. R_1000

    R_1000 Elite Member
    Subscriber

    Sep 2, 2016
    1,476
    700
    UK, London
    #36 R_1000, Sep 22, 2016
    I have an aftermarket one (tail tidy). I tested the indicators with relay n all good :). Im soooooo chuffed

    Tonight installed mid engine r&gs n engine sliders on both side. The haynes manual engine mounts torque figures are 60 Nm something but I went with R&Gs recommended torquefigure of 40Nm. I just hope I did the right thing. I have installed the front indicators, the rear will be done tomorrow once I managed to drill the brackets. Also light tint headlight covers were installed now :).

    Tomorrow job: HealTech brake light modulator. I just need to figure out brake light switch wire. Then install the rear indicators and red clutch guide. I know. ...I think I lost the plot .

    All coming together :) Friday I'll be uploading the photos; -)

    • Like Like x 1
  17. darkman

    darkman Crème de la Crème

    Oct 26, 2015
    7,632
    1,000
    Southcoast of the UK Earth
    #37 darkman, Sep 22, 2016
    Be careful riding in London with a red flashing rear light on your arse lol

  18. R_1000

    R_1000 Elite Member
    Subscriber

    Sep 2, 2016
    1,476
    700
    UK, London
    #38 R_1000, Sep 22, 2016
    ^^
    I thought it will make the mad London drivers aware of my presence o_O. I'm beginning to think it might not be a good idea with the brake module :(. Maybe I should cut my postage loss n send it back.

  19. Pabs

    Pabs Well-Known Member

    Mar 31, 2016
    38
    78
    Plymouth
    #39 Pabs, Sep 22, 2016
    Seems like a lot of money for a flashing lights. Not that I understand how it completely works but say driver behind you is in traffic and playing on their phone as they often do and they see the light flash may they nudge forward thinking your moving

  20. RROB

    RROB Active Member

    Jul 9, 2016
    80
    28
    Worcestershire
    #40 RROB, Sep 22, 2016
    Does the modulator flash briefly for a couple of seconds (or less) then stay on like normal ?
    The motordynamic combined LED / TAIL lights do this (is it UK compliant) ?
    You see it in the states
    I like it personally even if the driver on the phone doesn't

    Would prefer one that calls out
    "Oi C..T GET OFF THE EFFING PHONE IM BREAKING" !!

    • Like Like x 2
