    #41 darkman, Sep 27, 2022
    Last edited: Sep 27, 2022
    Welding on gearbox cleaned up and faced, drilled and tapped for 5/16th stud. Crankshaft cleaned out and all three parts bolted back together with new ground hi tensile grade 8 bolts :)



    • Like Like x 12
  2. darkman

    darkman Crème de la Crème

    Oct 26, 2015
    7,632
    1,000
    Southcoast of the UK Earth
    #42 darkman, Sep 29, 2022
    As i have been over the paint shop repairing a Bentley front wing this week i managed to do a few black bits fur Su's 5T.



    • Like Like x 10
  3. Iron

    Iron Elite Member

    Dec 29, 2021
    2,683
    943
    Bob Ross Studios
    #43 Iron, Sep 29, 2022
    Bentley black is always gonna be nice ;)

    • Like Like x 3
    • Agree Agree x 1
  4. darkman

    darkman Crème de la Crème

    Oct 26, 2015
    7,632
    1,000
    Southcoast of the UK Earth
    #44 darkman, Sep 29, 2022
    The pearl red on this one does have a black base coat :)


    • Like Like x 6
  5. darkman

    darkman Crème de la Crème

    Oct 26, 2015
    7,632
    1,000
    Southcoast of the UK Earth
    #45 darkman, Oct 3, 2022

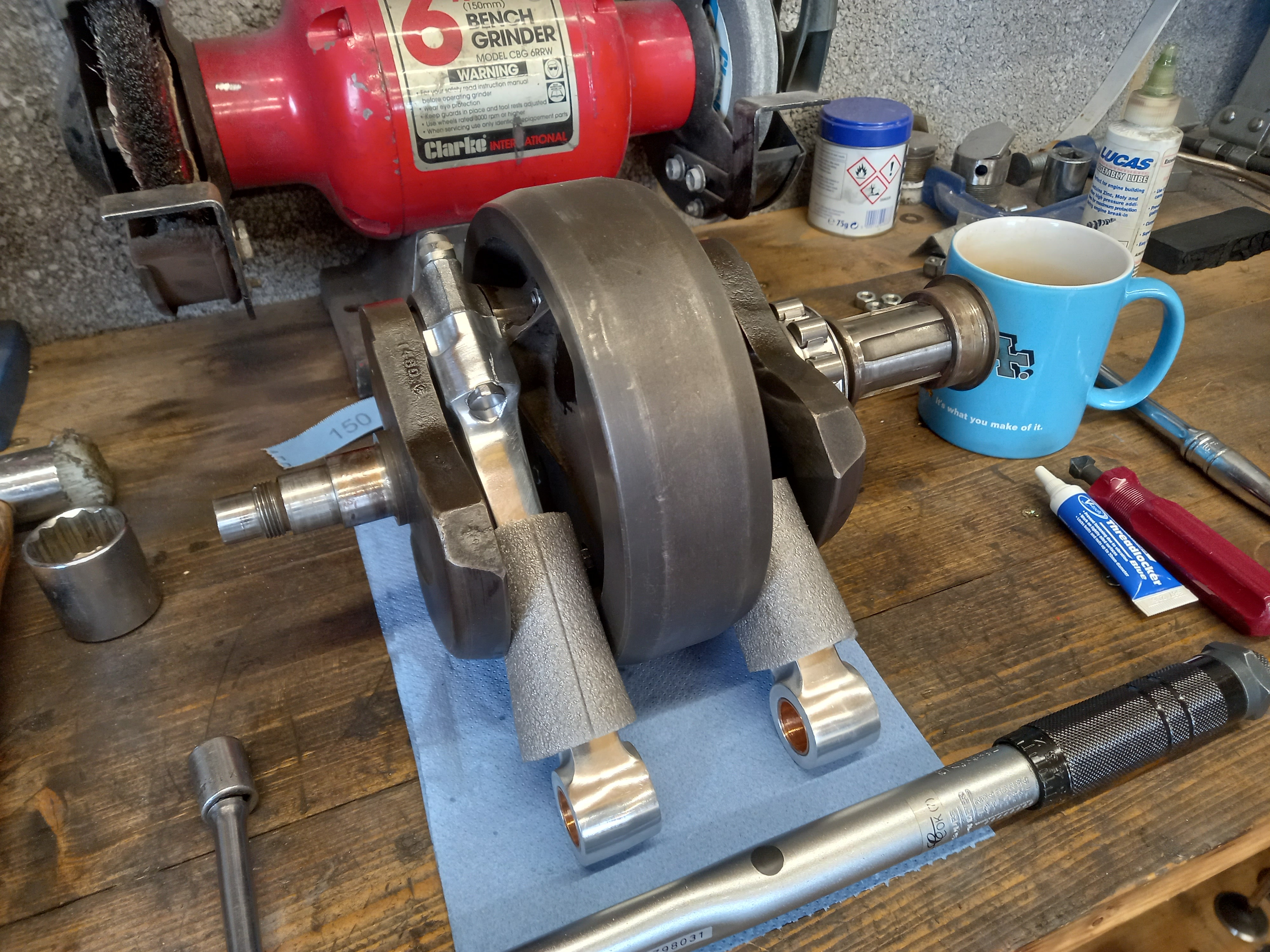

    Long day today as i had to prep and prime all the frame and various parts for a job i'm doing but managed to rebuild the crank with its new rods n shells :) The rods are special Harris rods that take shells rather that the old fashioned white metal caps.


    • Like Like x 6
  6. Sandi T

    Sandi T It's ride o'clock somewhere!
    Subscriber

    Dec 3, 2018
    22,580
    1,000
    Tucson Arizona
    #46 Sandi T, Oct 3, 2022
    Very cool, @darkman! But in this photo, I find myself curious about that blue coffee (or tea?) mug. I can read part of it but am wondering what the missing parts say. :neutral:

    • Agree Agree x 1
  7. darkman

    darkman Crème de la Crème

    Oct 26, 2015
    7,632
    1,000
    Southcoast of the UK Earth
    #47 darkman, Oct 3, 2022
    Its a promotional RIZLA fag rolling paper mug in a not so common blue that Crescent Racing painted their SUZUKI race bikes in BSB and MotoGP as RIZLA is one of their sponsors Sandi, most people know RIZLA as a green colour but they do various colours to denote the paper thickness :)

    • Like Like x 1
    • Agree Agree x 1
    • Informative Informative x 1
  8. Sandi T

    Sandi T It's ride o'clock somewhere!
    Subscriber

    Dec 3, 2018
    22,580
    1,000
    Tucson Arizona
    #48 Sandi T, Oct 4, 2022
    Thanks for the info, @darkman. That is one complicated tea/coffee mug! ;)

    • Like Like x 1
    • Agree Agree x 1
  9. Vulpes

    Vulpes Confused Member

    Mar 14, 2018
    17,964
    1,000
    Netherlands
    #49 Vulpes, Oct 4, 2022
    Last edited: Oct 4, 2022
    The green is not so common here (Mascotte seems to be more common with that colour) - as well as the green RIZLA has orange (thick paper) and this blue, which is the thin variant

    • Like Like x 1
    • Agree Agree x 1
  10. darkman

    darkman Crème de la Crème

    Oct 26, 2015
    7,632
    1,000
    Southcoast of the UK Earth
    #50 darkman, Oct 4, 2022
    I did try some liquorish papers years ago, yuck! i did use the blue papers when our local team Crescents was in BSB but have reverted back to the old faithful green papers :)

    • Like Like x 1
    • Agree Agree x 1
  11. darkman

    darkman Crème de la Crème

    Oct 26, 2015
    7,632
    1,000
    Southcoast of the UK Earth
    #51 darkman, Oct 5, 2022

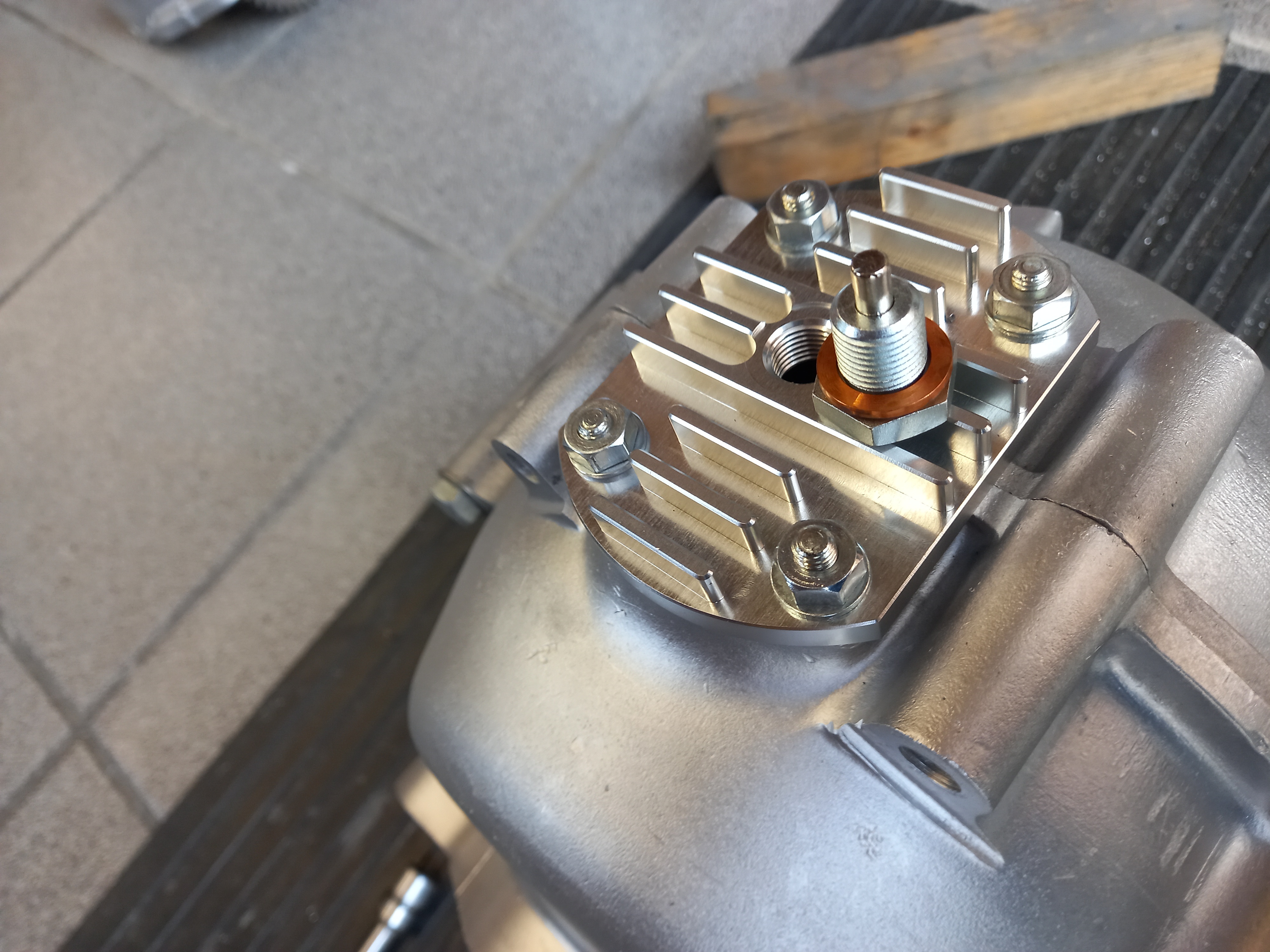

    Final clean of the crankcases and trial fit of the new sump plate with inbuilt drain plug and magnetic stick :)


    • Like Like x 10
    • Useful Useful x 1
  12. timboo

    timboo Senior Member

    Oct 17, 2021
    307
    113
    Cambridgeshire
    #52 timboo, Oct 5, 2022
    :sob:
    Looks great what ever it is :)

    • Funny Funny x 2
    • Agree Agree x 2
    • Like Like x 1
  13. darkman

    darkman Crème de la Crème

    Oct 26, 2015
    7,632
    1,000
    Southcoast of the UK Earth
    #53 darkman, Oct 5, 2022
    Original plate is just a plain cheap steel pressing that you have to remove all four bolts just to drain oil and use new gaskets so this makes it far easier with just the drain plug

    • Like Like x 2
    • Agree Agree x 2
    • Thanks Thanks x 1
    • Informative Informative x 1
  14. timboo

    timboo Senior Member

    Oct 17, 2021
    307
    113
    Cambridgeshire
    #54 timboo, Oct 5, 2022
    Ah ha that makes more sense now cheers for that

    • Like Like x 1
    • Agree Agree x 1
  15. andyc1

    andyc1 Lunarville 7, Airlock 3

    Feb 4, 2017
    2,927
    1,000
    N. Ireland
    #55 andyc1, Oct 5, 2022
    Zig-zag reign supreme... if you know you know :cool:

    • Like Like x 2
    • Agree Agree x 1
  16. Sandi T

    Sandi T It's ride o'clock somewhere!
    Subscriber

    Dec 3, 2018
    22,580
    1,000
    Tucson Arizona
    #56 Sandi T, Oct 6, 2022
    "Final clean of the crankcases"... Clean is certainly right. It looks so clean right now that you could eat off it. Actually, what is really looks like to me is a work of art--a sculpture. :heart_eyes:

    • Like Like x 3
    • Agree Agree x 2
  17. RiderJake

    RiderJake New Member

    Oct 5, 2022
    4
    0
    Auckland
    #57 RiderJake, Oct 11, 2022
    I looked through the whole thread - a lot of effort went into it and it looks really awesome. Maybe because I've never gone over my bike that deep.

    • Agree Agree x 1
  18. darkman

    darkman Crème de la Crème

    Oct 26, 2015
    7,632
    1,000
    Southcoast of the UK Earth
    #58 darkman, Oct 27, 2022
    Well that's enough body work and landscaping and back to building the engine for Su's 5T :) bottom end all back together :)


    • Like Like x 10
  19. darkman

    darkman Crème de la Crème

    Oct 26, 2015
    7,632
    1,000
    Southcoast of the UK Earth
    #59 darkman, Nov 1, 2022
    Gearbox re built and re built bottom end back in the frame on Su's 5T.


    • Like Like x 11
  20. DaveQ

    DaveQ Well-Known Member

    Jul 28, 2022
    200
    93
    Surrey. England
    #60 DaveQ, Nov 3, 2022
    Can I ask please if you use a sealer between the crankcase halves, and if so, which one would you recommend?
    Also, do you use a thread sealer on internal nut/bolt screw threads?
    Thanks
    Dave.
