Sprint 1050 St At Home, Some Questions.

Discussion in 'Sprint & Trophy' started by Hubaxe, May 13, 2020.

  1. This site uses cookies. By continuing to use this site, you are agreeing to our use of cookies. Learn More.
  1. Hubaxe

    Hubaxe Good moaning! aka Mr Wordsalad :)

    Mar 25, 2020
    1,694
    800
    Aix Les bains - French Alps
    Thanks a lot for your help!

  2. trudd

    trudd Member

    Oct 13, 2014
    38
    18
    No problem.

    If you're pulling it apart you might want to check the condition of the stator to reg/rec connector and maybe replace it with a better one. Also, I found a charge monitor be be really useful and probably stopped me having more issues.

    I've got one of these fitted: http://www.sparkbright.co.uk/sparkright-eclipse-battery-voltage-monitor.php

    One day when sat at idle the monitor flicked to amber and red but was fine if the bike was revved. It didn't sit right with me so I pulled it apart and found that the stator connector was scorched. I think that the years and corrosion were beginning to affect it and the monitor had caught it before anything went up in smoke. From memory the stator output rating is 35amps so the connector needs to meet that spec. I got great advice and service here: https://kojaycat.co.uk/

    • Like Like x 1
    • Useful Useful x 1
  3. Hubaxe

    Hubaxe Good moaning! aka Mr Wordsalad :)

    Mar 25, 2020
    1,694
    800
    Aix Les bains - French Alps

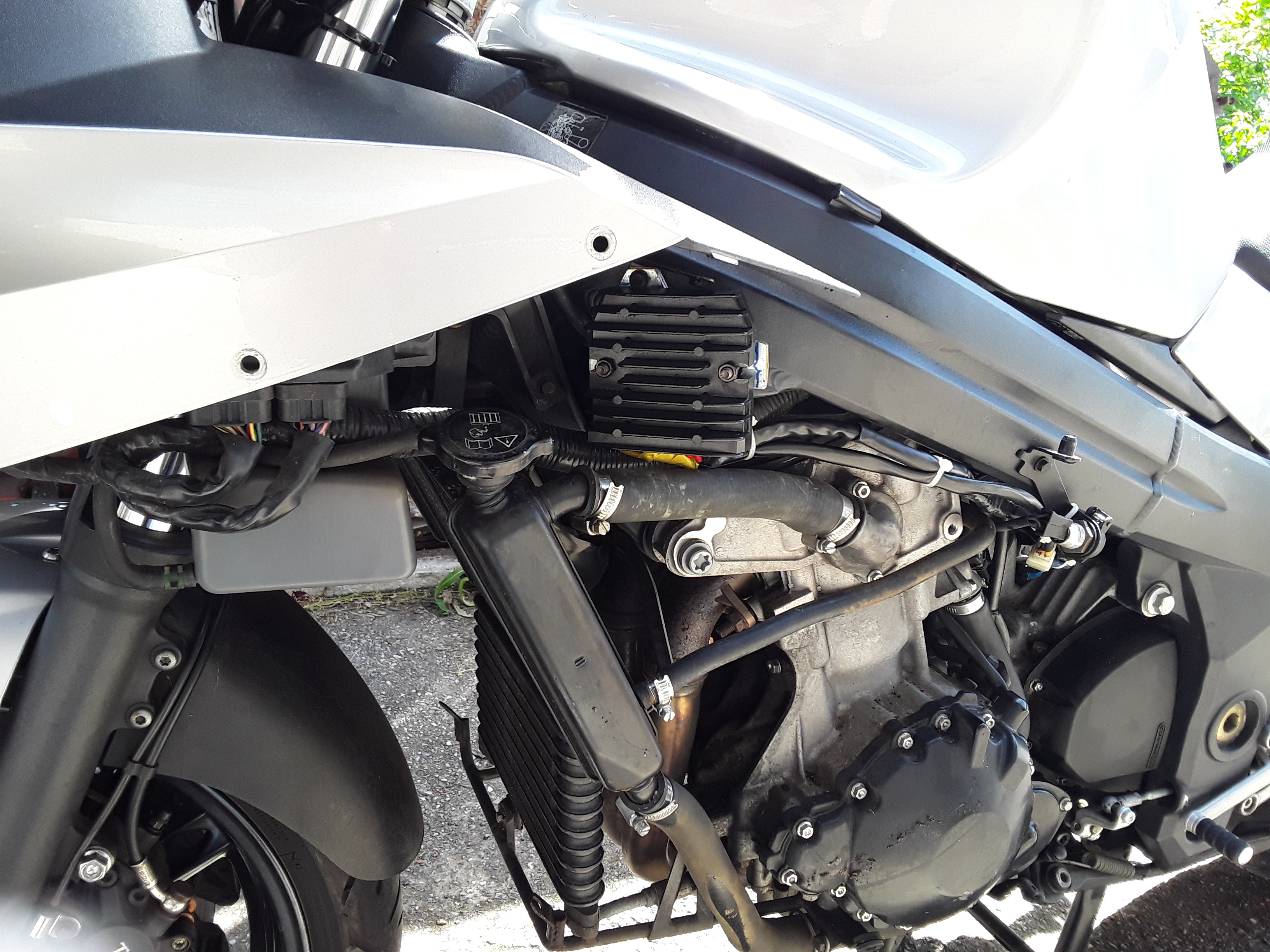

    Voltage regularor now on the left side
    I extended the cables and made à bracket from aluminium.


    • Like Like x 2
  4. Hubaxe

    Hubaxe Good moaning! aka Mr Wordsalad :)

    Mar 25, 2020
    1,694
    800
    Aix Les bains - French Alps
    And here it is


    • Like Like x 3
