Discussion in 'Triumph General Discussion' started by Shamus13, Jun 16, 2016.

  1. Shamus13

    Shamus13 Well-Known Member

    Apr 18, 2016
    145
    93
    East Riding of Yorkshire, UK

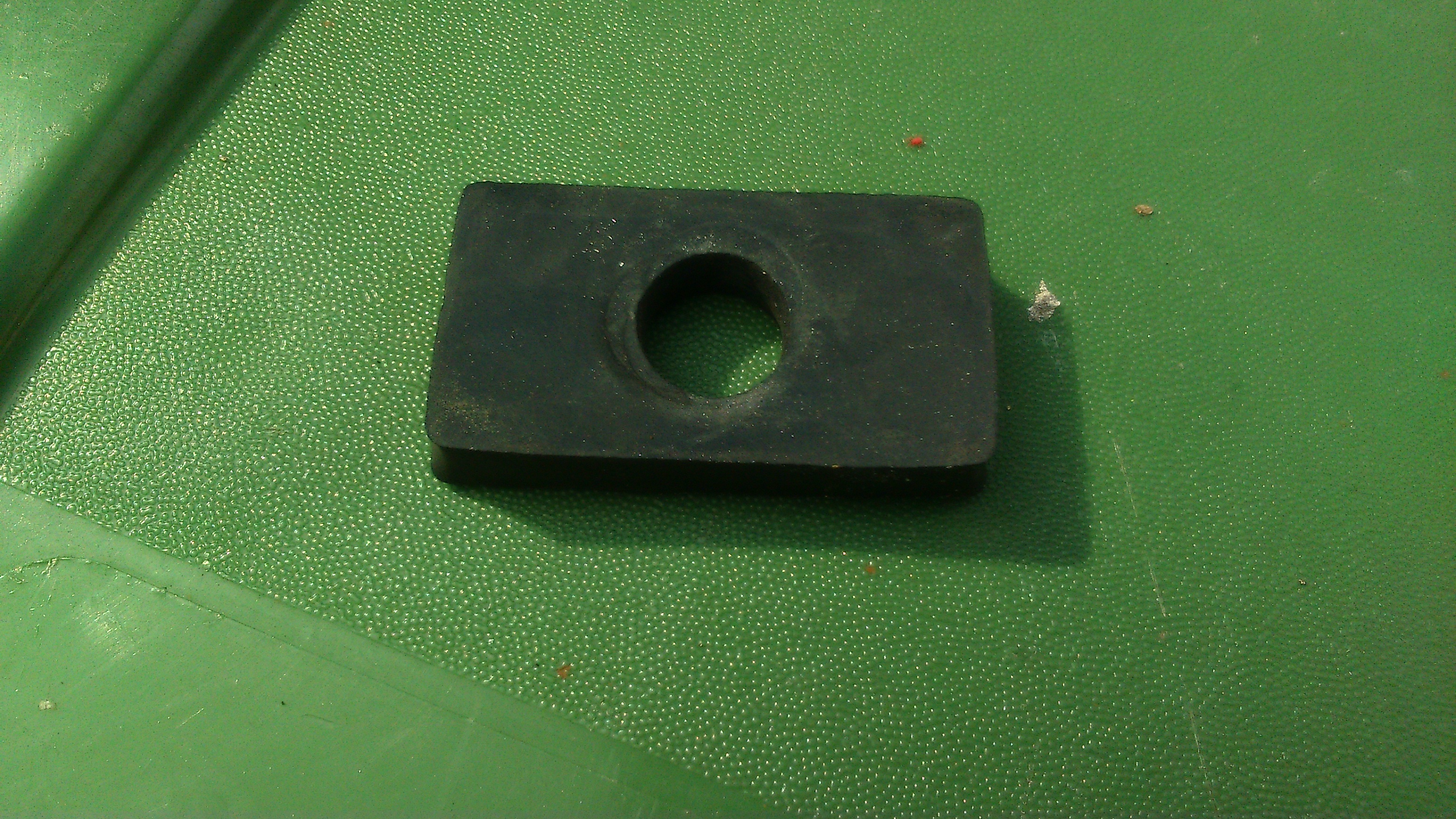

    Found this piece of rubber sitting loose on the engine under the tank of my 03 Speed Triple. According to the fiche it looks like it sits under the tank or it's rear mount but unsure exactly where. Anyone know where this should go?


  2. Wasp

    Wasp Well-Known Member

    May 14, 2016
    318
    63
    Burnley NWUK
    On my 2015 model, there is one of these either side of the fuel tank at the front. The securing bolt goes through the tank lugs, then through the rubber pad, then into the captivated nut on the frame.

    Hope this helps.

    Bob

  3. Shamus13

    Shamus13 Well-Known Member

    Apr 18, 2016
    145
    93
    East Riding of Yorkshire, UK

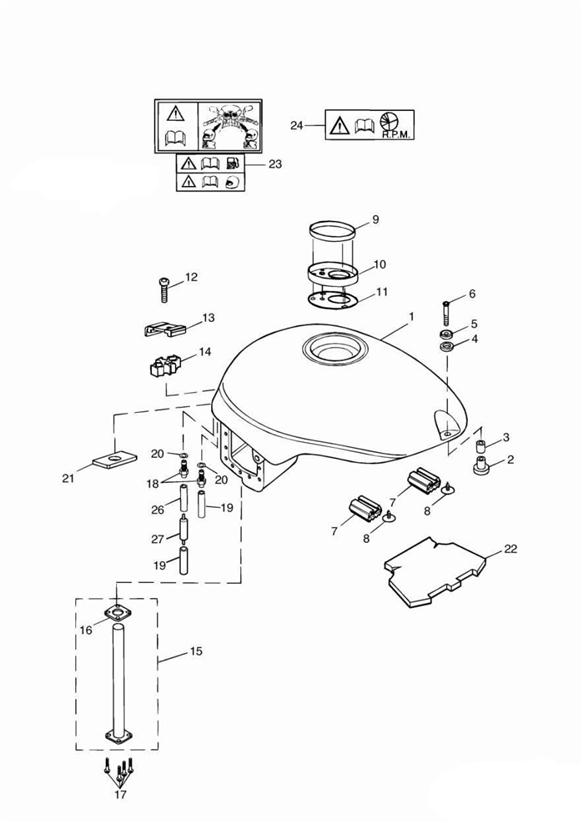

    Thanks Wasp but it appears to have another use. No.21 in the picture and it appears separate from the mount but near it given the dashed lines.


  4. Wasp

    Wasp Well-Known Member

    May 14, 2016
    318
    63
    Burnley NWUK
    Hi,

    Could it possibly be related to 12,13 & 14?

    Bob

  5. Shamus13

    Shamus13 Well-Known Member

    Apr 18, 2016
    145
    93
    East Riding of Yorkshire, UK
    I thought that initially but it does not fit along with these parts. I'm suspecting it sits somewhere under the tank probably to give it a cushion on a cross member on the frame.

  6. Wasp

    Wasp Well-Known Member

    May 14, 2016
    318
    63
    Burnley NWUK
    Thy sounds likely. Good luck with it anyway.

    Bob

  7. Shamus13

    Shamus13 Well-Known Member

    Apr 18, 2016
    145
    93
    East Riding of Yorkshire, UK
