Scott oiler location

Hi Curly if you have a look at my 'thoughts and mods' post I put a photo on there. Basicaly I managed to fit the small race (I think it's called) model reservoir behind the left panel. If you get the standard one they recommend fixing to the left rear down tube where it will be visible.



I have the v-System on my 2011 SE and that is fitted behind the left side panel and apart from the feed pipe on the sprocket its barely noticeable. If I get time over the weekend I'll get a few pictures and post them for you.

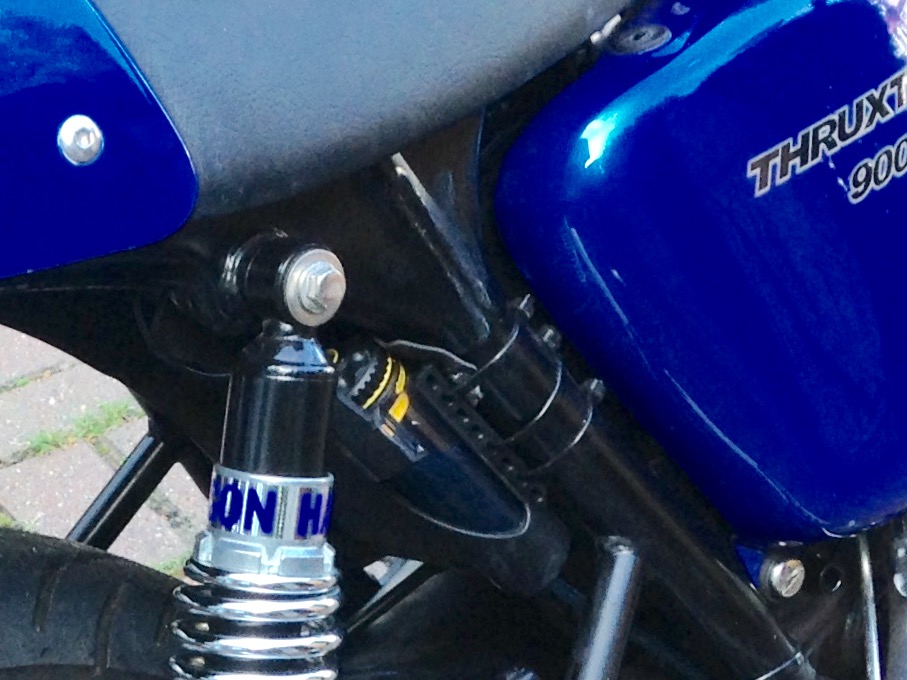

Here's where I put mine it's hardly noticeable

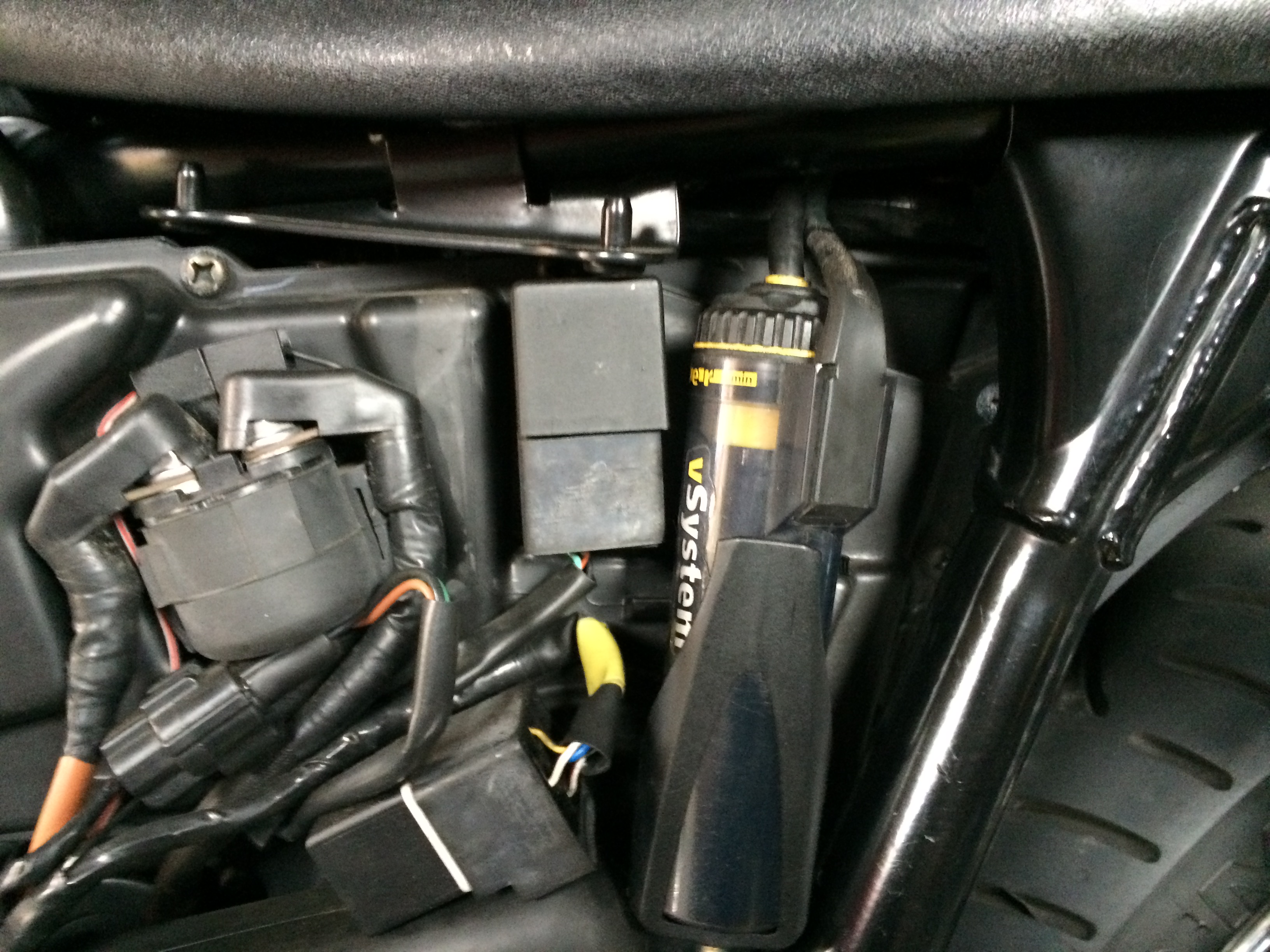

It may be a bit late if you fitted the oiler yesterday but this is how mine was done. It was fitted when I got the bike but it's not difficult to work out. They have relocated the solenoid so that it just sits on the airbox breather snorkel and used a cable tie to to attach the oiler holder to the solenoid bracket. If you need more images let me know.



Those of you that have fitted oiler on efi bikes have any of you used the vac operated one? Looking on scottoiler Web it shows connecting to a vacancy point I don't seem to have .
Cheers
Andy



I fitted one to my 2010 T100 and it worked very well indeed. Re the vacuum take-off points there are two possibilities, both on the throttle bodies.



Thanks for the reply, did you just tee of one of the used vac points?
Thanks,
Andy



I looked on the scottoiler Web site and vac point shown on their instructions doesn't seem to be on my bike.
Andy



Curly, I have a 2011 triumph america. Scottoiler Web shows my model but unless I'm missing something (OK don't all shout at once I'm probably missing lots but back to the oiler) I can only see one vac point on each injector / dummy carb and it doesn't look to be in the place that they show? If anyone has fitted an oiler to 865 injection engine what point did they use.
Thanks,
Andy



I think mine is using the inlet manifold from the RH throttle body. There seems to be a threaded brass connector on the top of the alloy manifold, now I don't know if this is a feature of the 2011 SE or if it was done by the previous owner. I can take a picture and post it here if it helps.



Eric, a picture says a thousands words as the saying goes, if you would be good enough to post a picture l would appreciate it.
Thanks,
Andy



This is how it looks and it does go to the Scottoiler - Ive also included one of the route mine takes under the seat. I've lifted the pipe so that you can see the direction but it sits behind the RH throttle body.



I'm away at the moment earning some brownie points by taking my wife to the lakes for a few days. Once I get home I'll look again.
Thanks
Andy
