Replacing Rear Disc 1050 Speed Triple

Discussion in 'Technical Help' started by nigel Bessant, Aug 17, 2016.

  1. nigel Bessant

    nigel Bessant Member

    Sep 26, 2014
    8
    8
    Can anyone identify the model year for the rear of my T509 please? It was last mot'd in 2008 and when I took it yesterday for a new one the examiner laughed at the brake performance.
    It's been modified with a later 1050 swinger etc.
    The disc diameter is 220mm.
    Thinking of using a Brembo disc unless anyone can suggest other.
    Any help appreciated.

    Cheers
    Nigel




  2. nigel Bessant

    nigel Bessant Member

    Sep 26, 2014
    8
    8

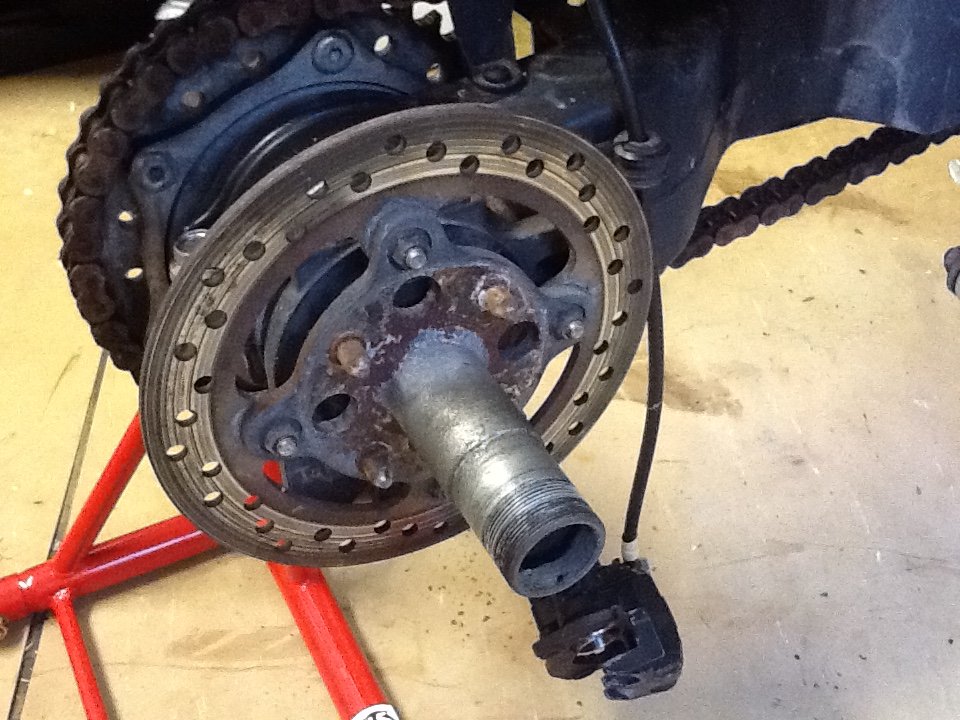

    Disc is off the bike, just a case of removing the four bolts and a little jiggling and off it came. Hex bolt heads are a bit plastic so new set required.

  3. darkman

    darkman Crème de la Crème

    Oct 26, 2015
    7,632
    1,000
    Southcoast of the UK Earth
    Brembo are one of the best :)

  4. t552

    t552 Senior Member

    Nov 17, 2014
    416
    113
    Bristol UK
    the rear brakes are not much use on the t509, t595 and 955i(same)
    You can change the master cylinder for a Kawasaki item. 1/2" instead of 14mm.
    If that's not enough for you can use the sprint set up with 255mm disc. But you will also need the caliper and mount plus new hose

  5. nigel Bessant

    nigel Bessant Member

    Sep 26, 2014
    8
    8
    Thanks for info, it's costly to convert to sprint set up so will stick with the 220 disc.

  6. nigel Bessant

    nigel Bessant Member

    Sep 26, 2014
    8
    8
    Disc is the same part number from the t595 to the speed triples of 2010 then.

    Looks like I'm sorted.

    Thanks
    Nigel
