My Lucky Day.... Mostly.

Hi all,

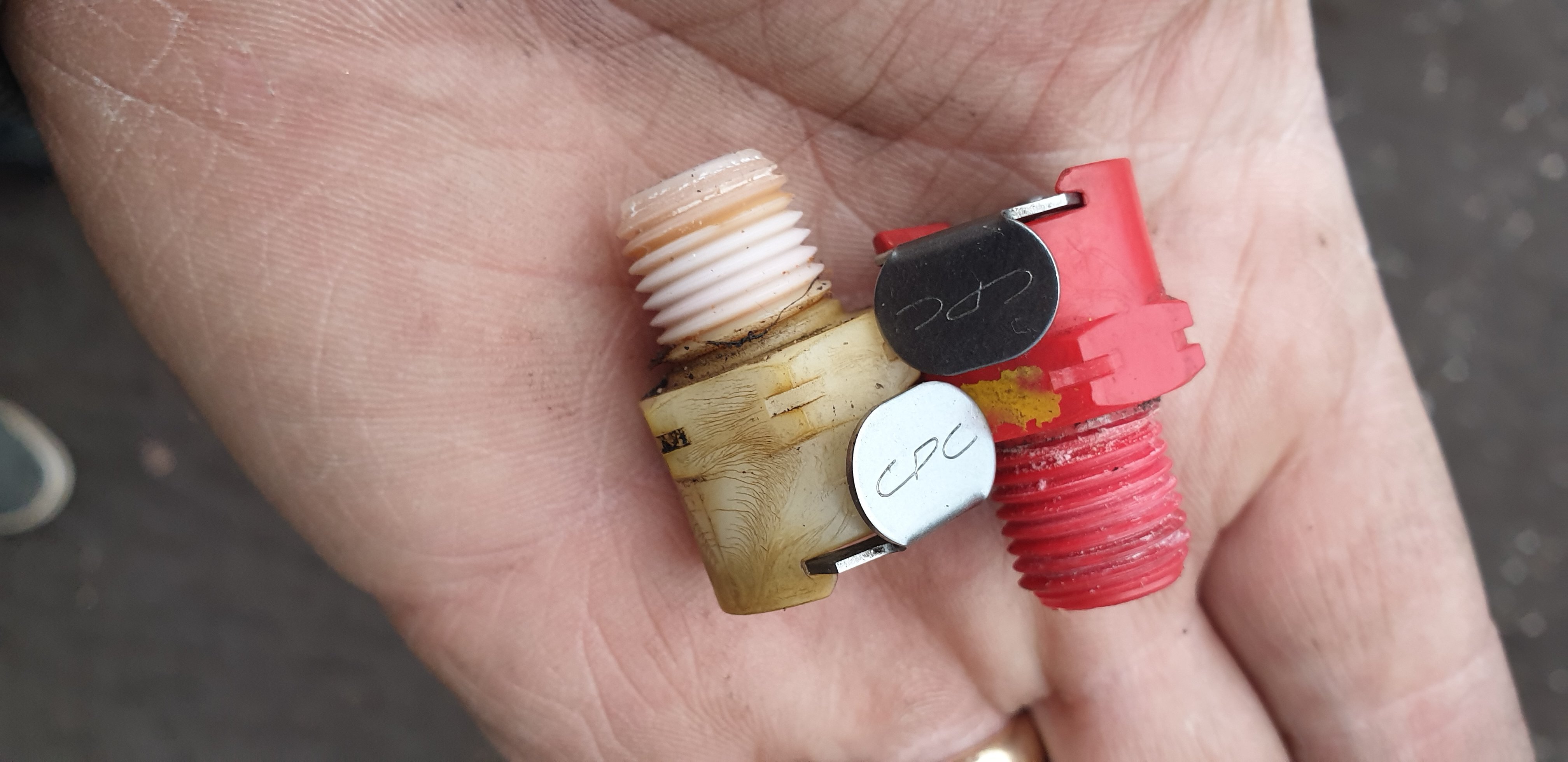

After getting some great responses and advice on the 5 best mods for a TT600 today I set about changing the crappy plastic fuel tank connectors.

I read so many threads about changing them and orderd my easy-outs in preparation as they always break off no matter what technique is used.

Well, not today. The gods must have been shining on me as they came straight out.

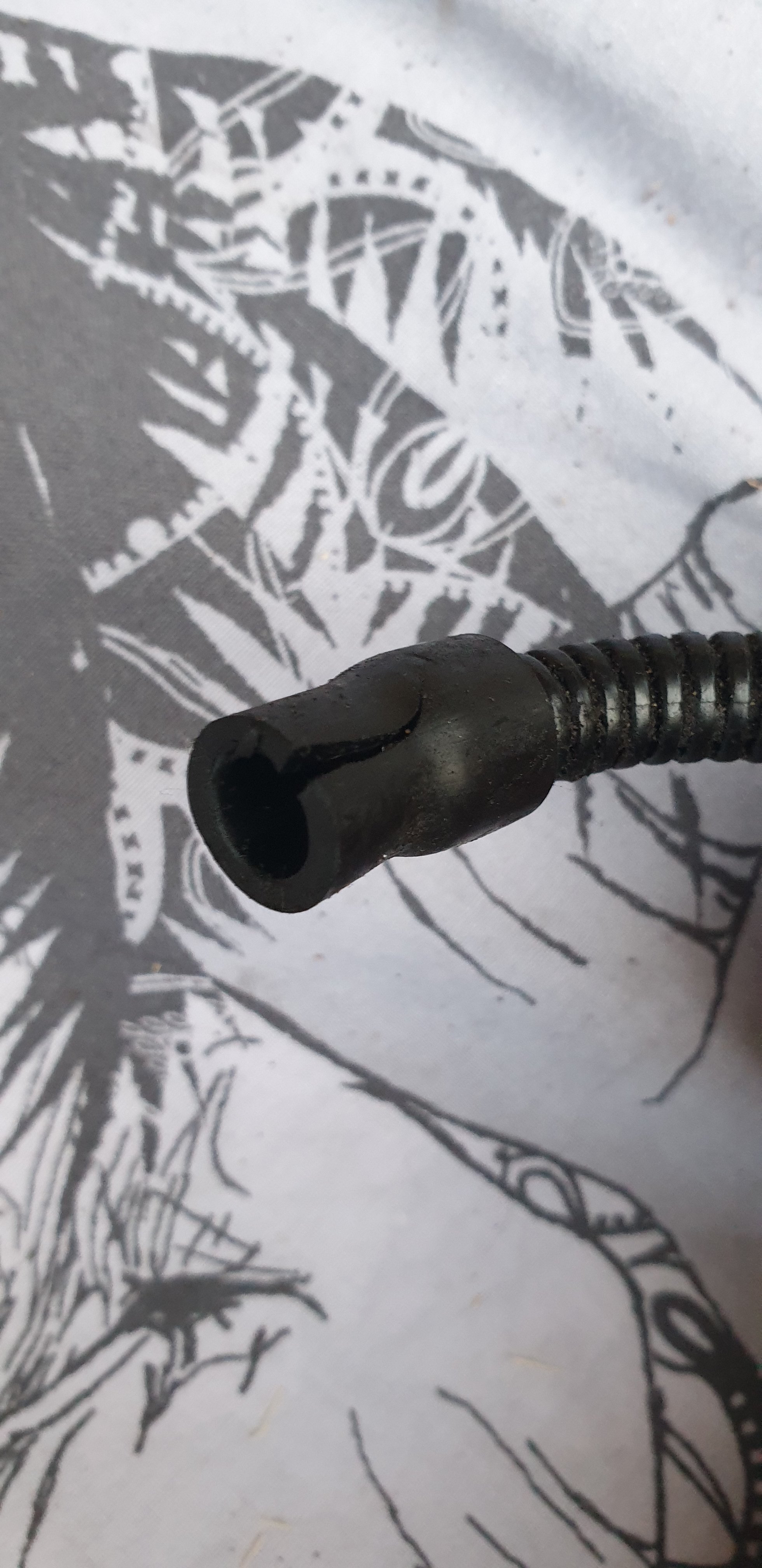

I changed the IVAC tubes whilst I had the tank off and found that 2 of them had splits in the rubber section too.

BUT not quite all well that ends well though as for the life of me I cannot find the fault that's putting the codes on the ecu.

Fuel pump relay default error

Fuel pump wiring short to ground

And low system voltage

I have checked the loom from the ECU to the fuel pump connection and tested continuity and for short to ground but all tests seem fine. Theres no sign of chaffing on the loom either.

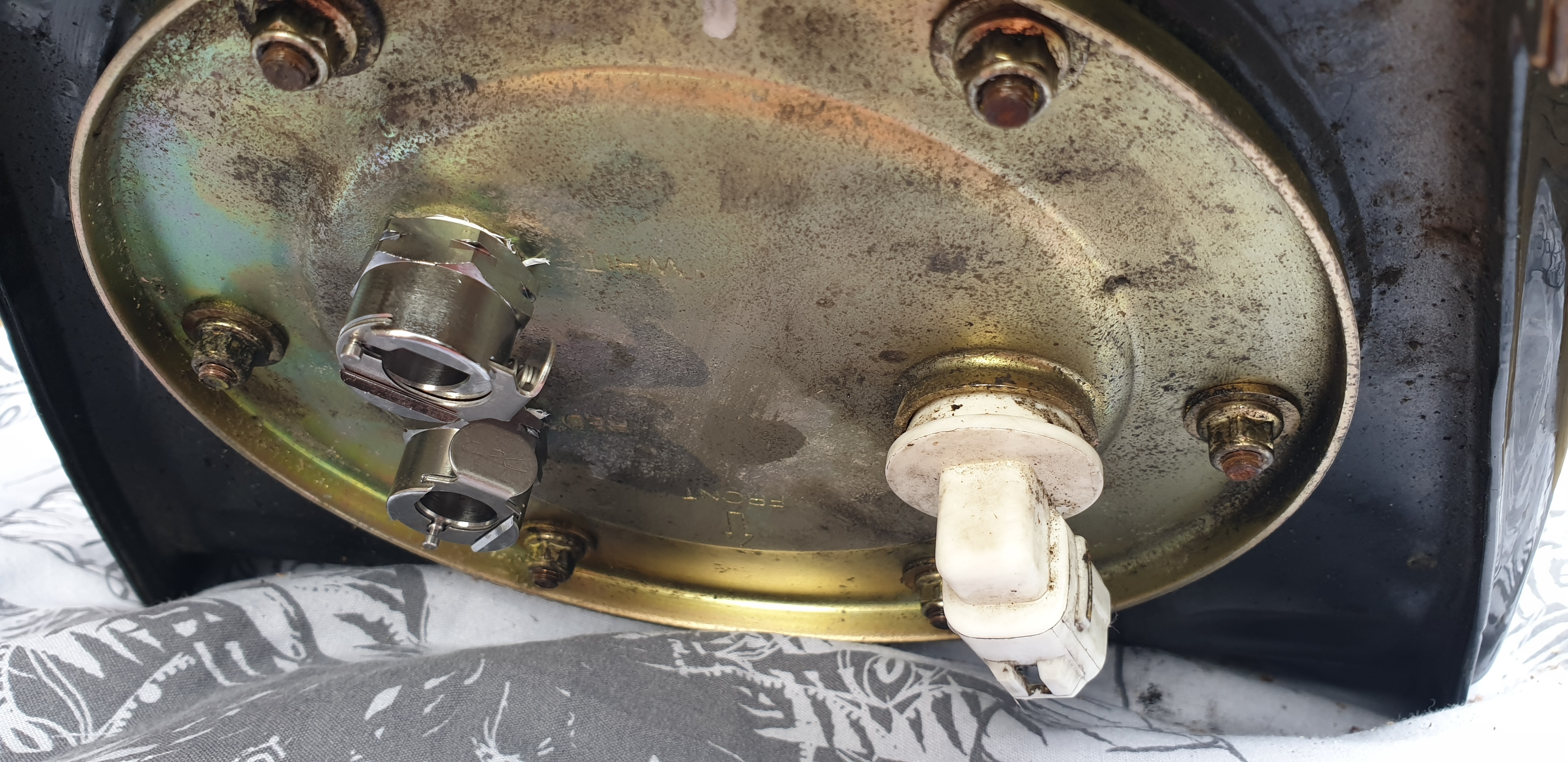

I tighiend up all connector terminals on the fuel pump connection and as I had the tank plate out I cleaned and checked and tightend the wiring and connectors in the tank. I checked the connector at the ecu too.

But now I'm at a loss and don't know what else to check?



I think I'm at the point of changing the ecu or fuel pump, but hate trial and error fixes.

Any help would be appreciated

Thanks



Its a good shout but the fault was there before I changed the connectors. I like the thing though!



Unfortunately there is no relay its part of the ECU to the best of my knowledge.

Thanks again.
