How To Undo This P-clip

Discussion in 'Technical Help' started by Beefa, Sep 24, 2024.

  1. Beefa

    Beefa New Member

    Aug 21, 2024
    1
    3
    Tasmania Australia
    #1 Beefa, Sep 24, 2024

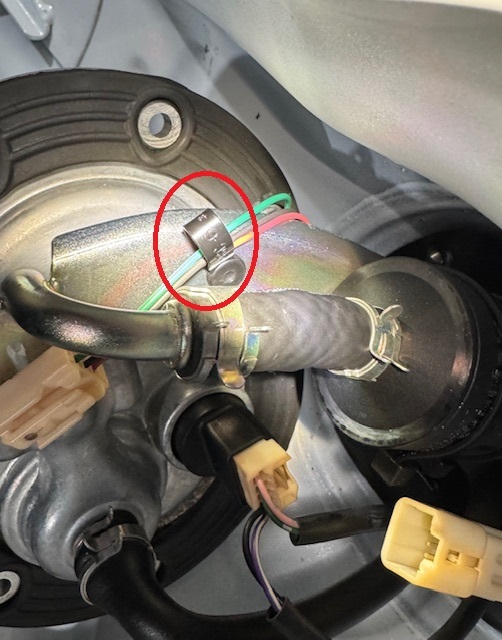

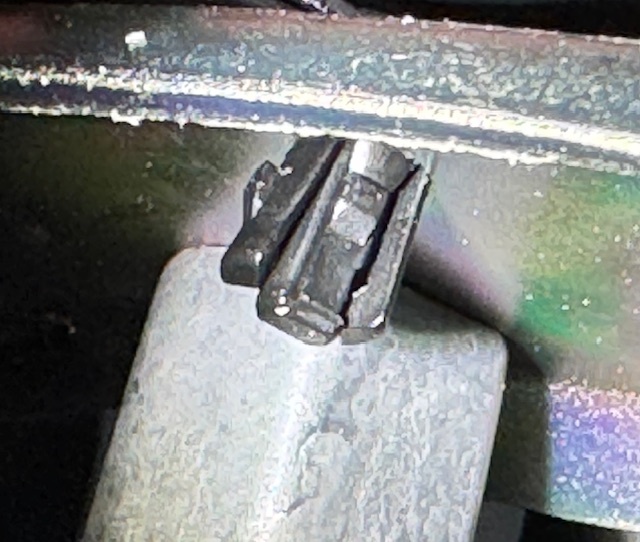

    Can anyone please advise as to how I can undo this clip ? I've circled it in red and the other pic shows the clip from beneath.

    I'd rather not cut it. It's in the fuel pump assembly.



    • Useful Useful x 1
  2. MightyBoosh

    MightyBoosh Active Member

    Mar 29, 2023
    91
    28
    Uk
    #2 MightyBoosh, Sep 24, 2024
    Looks like a cam clip so beloved of car manufacturers. The centre section (ringed in red) can be eased up with a small screwdriver and in so doing the lower portion will allow the outer legs to close up. The entire thing will then lift out

    • Thanks Thanks x 1
    • Useful Useful x 1
    • Agree Agree x 1
  3. crispey

    crispey crispey creme de la creme

    Nov 6, 2014
    7,225
    1,000
    Uk
    #3 crispey, Sep 24, 2024
    search for plastic rivet clips and buy some then it wont matter if you bust yours.
    You can get packs with different sizes

    • Like Like x 2
  4. Beefa

    Beefa New Member

    Aug 21, 2024
    1
    3
    Tasmania Australia
    #4 Beefa, Sep 25, 2024
    Genius !! Thank you very much - a dab of grease and it came straight out.

    Much obliged

    • Like Like x 1
    • Useful Useful x 1
