Speedmaster Highway Pegs

I posted this over in the tech forum and got no bites. Thought I'd try over here where it might be more Speedmaster specific.

At some point I may go with highway bars, to which I can add pegs on my 2018 Speedmaster. Right now I'm looking for highway pegs that I can attach directly to the frame that will come out far enough and clear the exhaust pipe.

I've looked at a lot on line, some of them have what lools like a 45 degree bend in them, but I can't be sure they'd clear the pipes, come out far enough and not be at an awkward angle.

Does anyone have this type of setup?
How does it work out?
Whare can the hardware be gotten?
Pictures if you do, please.

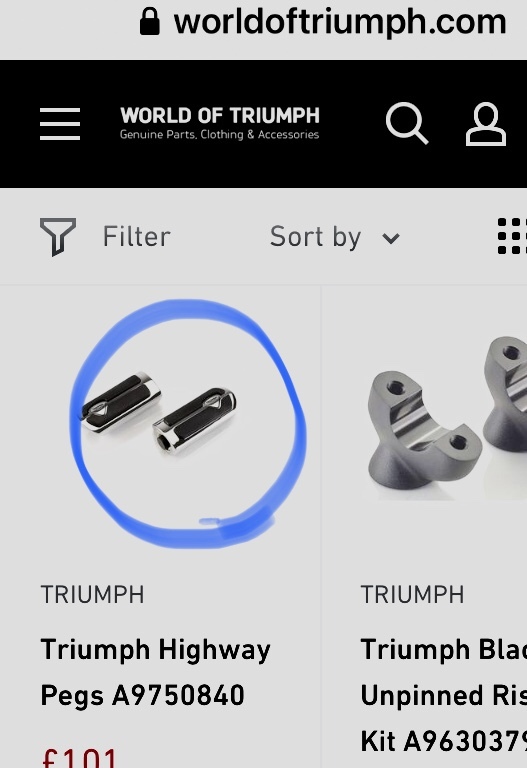

Well, stay tuned. I ordered a set of highway pegs. It looks like the collar that usually attaches to the highway bars just may go on between the radiator and fit on the down tube. I will post to let y'all know if they fit up.



The highway pegs arrived. I was able to mount them on the bike. The only way I could do so was to reverse them and put them on the frame's down tubes, just under the lower radiator supports. The radiator and its supports kept me from doing it any other way.

Does it work? Meh...sorta. They are made to be fitted to crash bars, so they don't come out away from the bike very far at all. They miss the exhaust pipe by 1/4 inch and the front tire by about an inch when they are folded up and the tire goes to full lock either way. Plenty of tire clearance when they are deployed. I'm 6'2" tall and the riding position on the Speedmaster is just a bit cramped for me. What they allow me to do is rest my heel on them and give my legs a little stretch. My boot is about an inch away from the exhaust pipe. No heat was felt, but it was just a short test ride.They'll allow me to extend my legs when I'm out riding in the hinterlands. I wouldn't use them around town. If I had to brake or downshift suddenly, I would lose a split second moving off the pegs to the controls.When I get around to installing crash bars, I'll move them there. This will do for now.
