Help Installing A9630716 Bar End Mirrors - 2022 Street Twin

Hi @Jbizzle76, forgive me if you know some of this already.

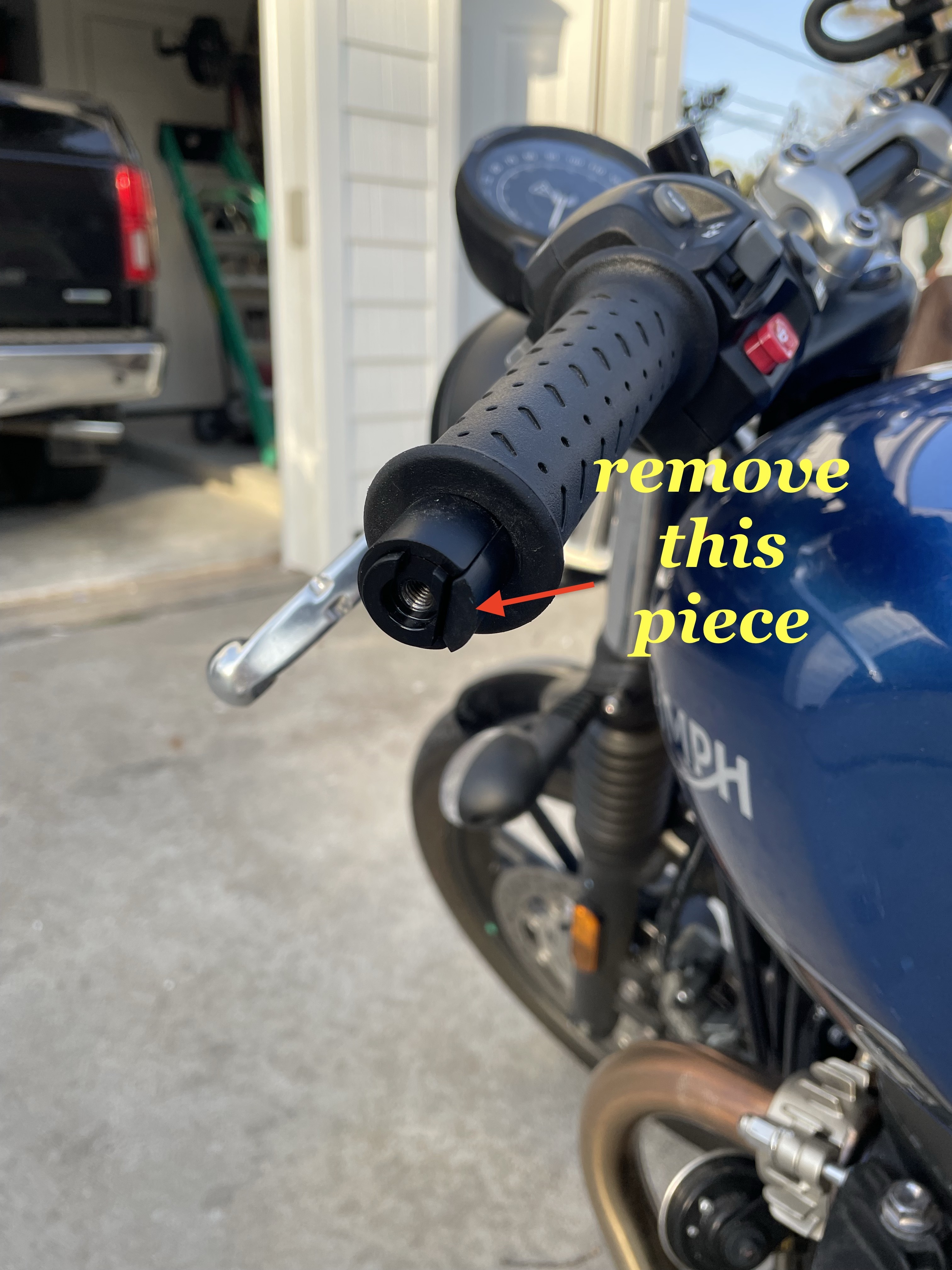

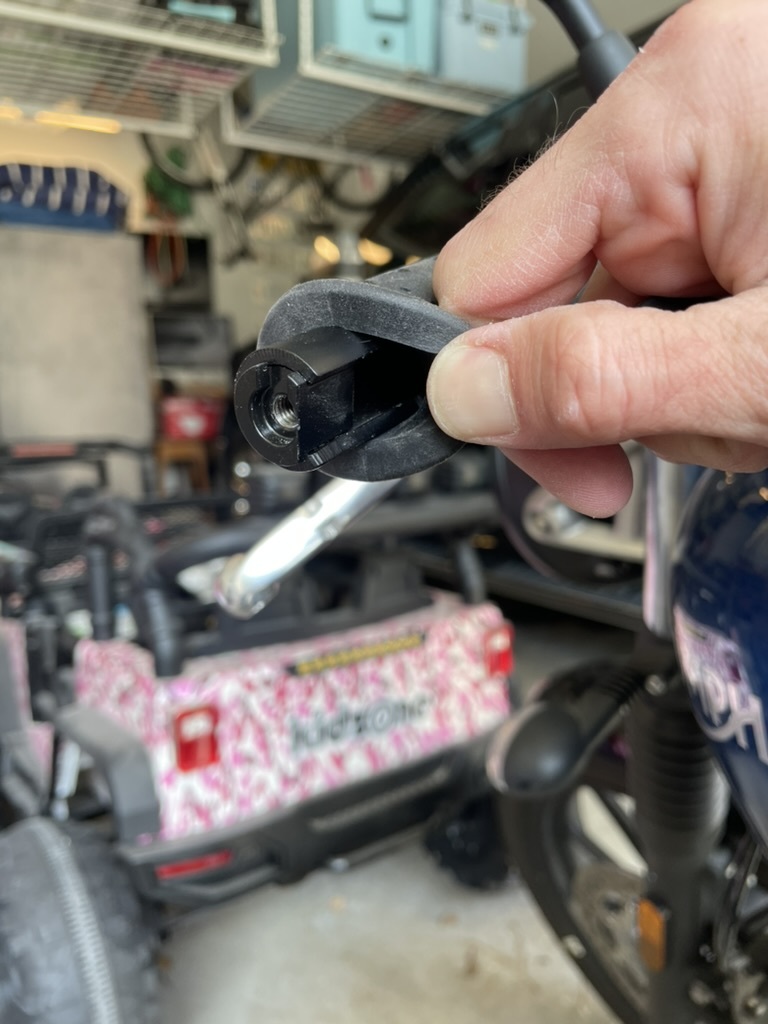

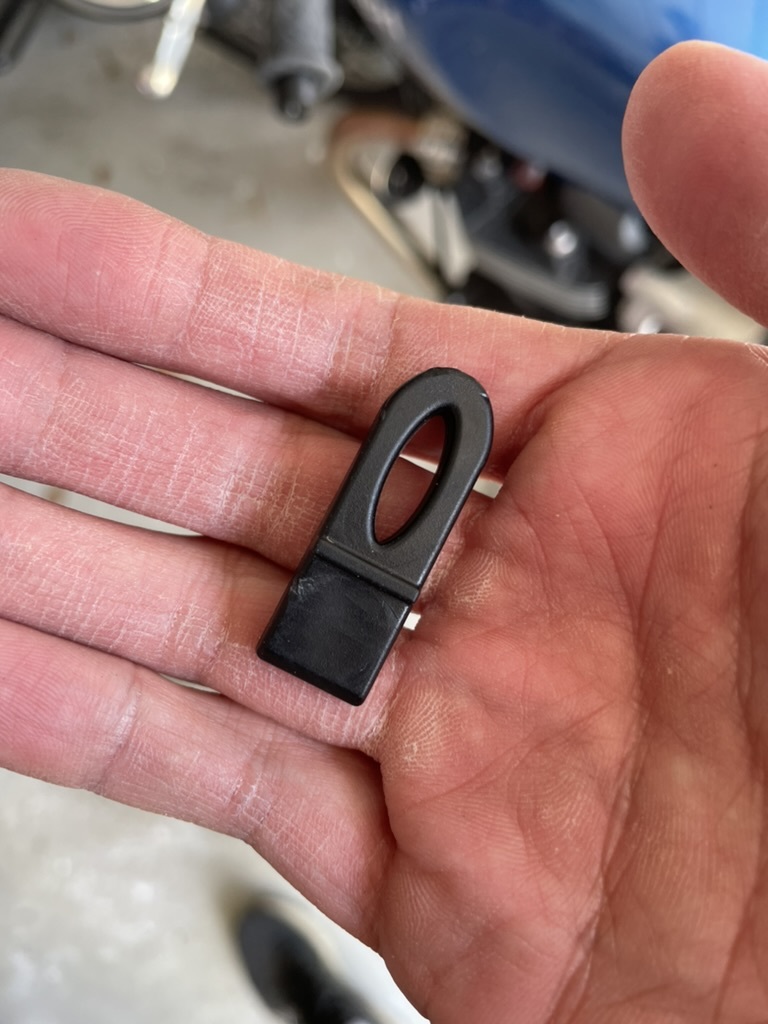

I don't think you should have removed the plug, so if you can put it back. What you think might be the plug is in fact a spacer Triumph use in the packaging of the mirror kit, it slots into the gap in the mirror stem where it clamps around the handle bars.

If you bought the kit new, it would have come with a spacer like that slotted into each mirror. The kit also comes with spacer rings for 22.2 and 25.4 mm handlebars. You want to use the 22.2 version (they have the smaller hole).

It reads like you've already successfully fitted that to the RHS mirror, with the plug back in place the LHS should be just as simple.

There will be a small gap (~2mm) between the grip and the mirror stem, this is normal.

If you haven't already, follow this link to Triumph's official instructions

A9630716-EN.pdf (triumphinstructions.com)

You will see in the instructions that the kits that supply a replacement plug are A9638132, A9638133, A9630205, A9630206 & A9638154. It looks like they use a different friction ring as well which would appear to fix the mirror stem in a particular position.

You probably know this as well but you will also need the flat bar end finishers to tidy up the end of the bars, details are in the instructions.

Hope this helps. Good choice of mirror by the way.

PS I think I've successfully uploaded a highlighted version of the instructions for you as well.



That's really weird, forgive me for asking but did you buy the mirror kit new with all parts present? And have you got the friction rings in the right position?

I've fitted the angular version (Intended for the Rocket 3 models) A9630721 to my 2018 Street Cup; I didn't need to remove the plug and it uses the same friction rings.

You could try ordering a friction ring that doesn't require the plug to be removed PNo.T2060499 as fitted to the Street Triple RS.
