Front Brake Reservoir

I have the billet Triumph ones on mine, came with the bike. There’s a rear one on eBay at the moment for a reasonable price.



Here you go - genuine quality Triumph accessory http://www.worldoftriumph.com/trium...332/triumph-front-brake-reservoir-type-2.html



At the front, it uses the original bracket, but you have to trim the hose to a shorter length (or it will kink). If you plan on returning it to stock at some point, you can buy original Brembo hose on eBay for a fraction of the Triumph price. The rear one is a simple swap with no other adjustments.

I swapped mine out very carefully, taking care not to get air into the system and avoiding the need to do any bleeding. There's a higher volume of fluid in the old reservoir - so as long as you don't spill any, there's no need to buy a top up. Whatever you do, protect the bike from stray brake fluid.

Instructions attached - although they're slightly confusing as they cover several different Triumphs.

Shout if you need more specific tips on the procedure (like not squeezing the lever once you've emptied the fluid ) - always happy to help a fellow Essex Man.



Just swapped out my front reservoir. Looks the nuts and only took me 10 minutes. Not cheap though but definitely worth it



Morning, I too am looking for alternative front brake reservoir as I do not like the original.

2002 Speed Triple 955i

I would like, if possible to have an integrated reservoir as well, rather than the "pot"...but only if it is no faff/a straight swap. I appreciate this will require new lever(s).

What might i need to be aware of? Immediate queries include:

• Is there some reason NOT to have an integrated reservoir?
• Does having two calipers up front preclude them?
• Is there a size of "bore" or anything that is required for the fluid flow?

what else...!?

I was thinking something like this: click here

But of course they then need appropriate threaded mirror mounts...

As well as not liking the plastic nature of the current pot, I have also found a screen (from Skidmarx) but it fouls on the pot when moving the handlebars lock to lock.

"help me Obi-wan....you're my only hope..."
"help me Obi-wan....you're my only hope..."
"help me Obi-wan....you're my only hope..."

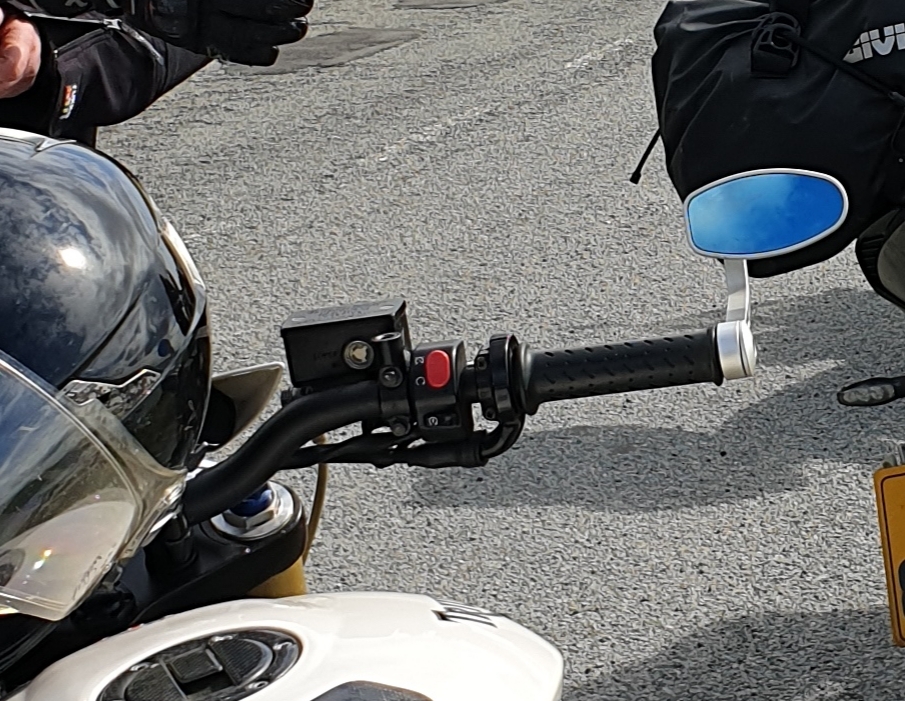

I've got an integrated reservoir on my 2005 speed triple. Works just fine.



Apologies vulpes; I missed your reply...

Can you supply details of the lever? Is it a pair? Are they adjustable? Is the reservoir ok for twin calipers - does anyone know?

It looks like a much simpler option to what I found!!

https://britishcustoms.com/products/reservoir-direct-mount



I can't supply you with details mate, sorry.
It was on the bike when I purchased it.
The mechanic at the dealers reckoned it's a Honda or Yamaha reservoir/lever.
No problem whatsoever for the twin calipers, my bike stops really well!
