Engine Number….

Discussion in 'Technical Help' started by Stewart Alexander, Nov 8, 2022.

  1. Stewart Alexander

    Stewart Alexander New Member

    Nov 21, 2018
    2
    3
    N, Linc,s.

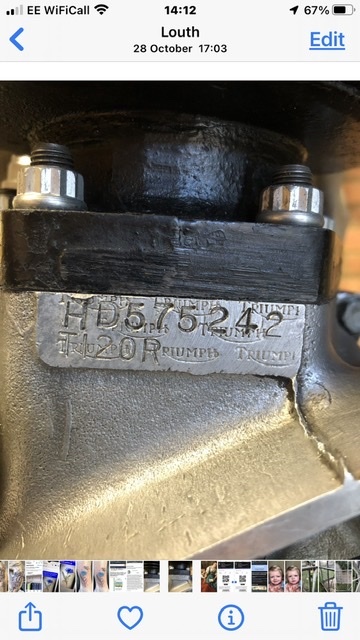

    Hello out there.. wonder if anyone could offer some help in identifying an engine number.. My brother has bought an American imported T120r which has six (not five as seems normal) numbers after the initial ‘HD’ stamp then 120r underneath the numbers…
    Any advice or information would be appreciated..
    Thanks
    Stewart.

    • Like Like x 1
  2. Iron

    Iron Elite Member

    Dec 29, 2021
    2,626
    943
    Bob Ross Studios
    • Like Like x 2
    • Useful Useful x 1
    • Informative Informative x 1
  3. Stewart Alexander

    Stewart Alexander New Member

    Nov 21, 2018
    2
    3
    N, Linc,s.

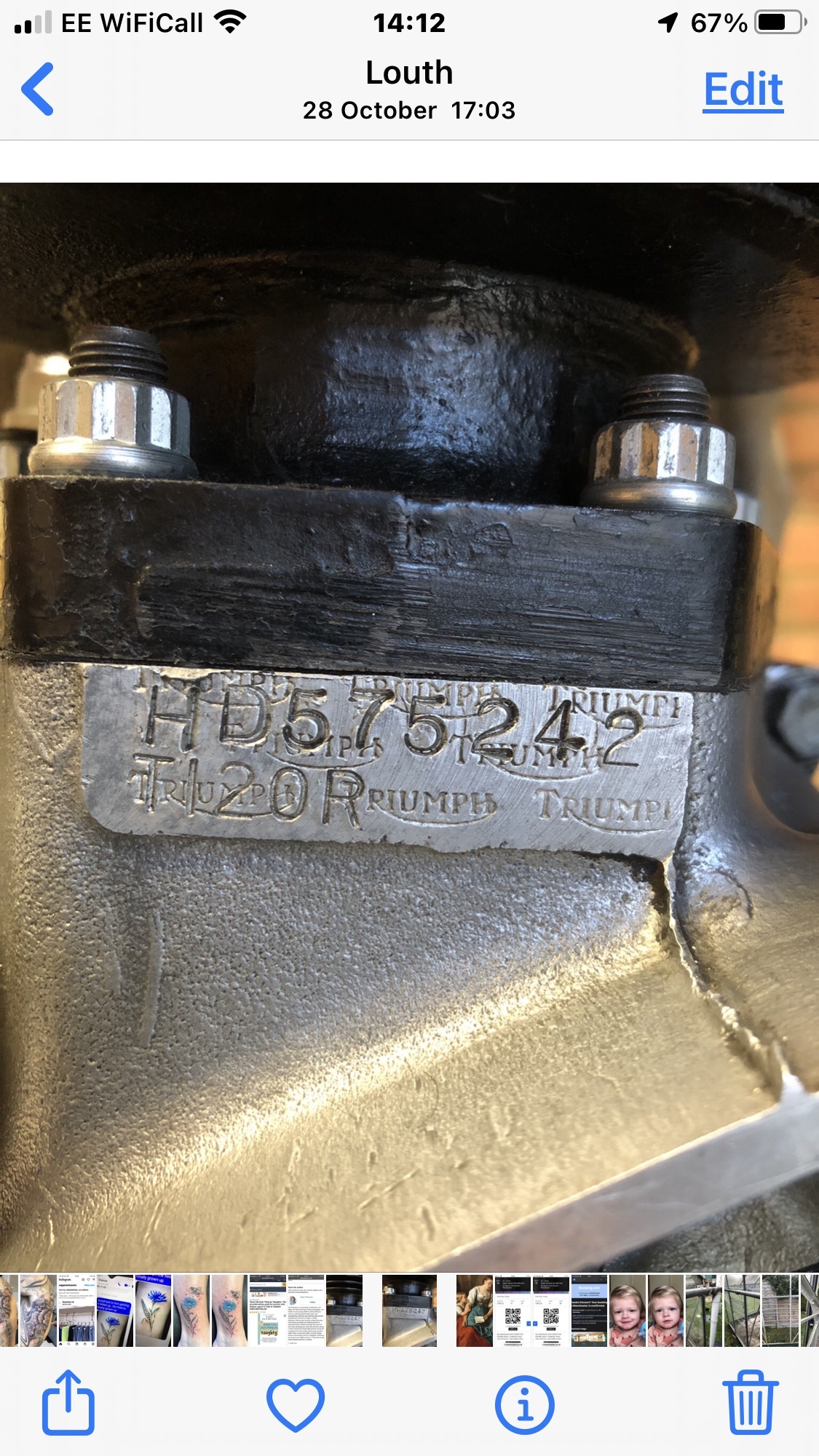

    Hello Iron , not sure if the image is enclosed..
    Stewart




    • Like Like x 1
  4. darkman

    darkman Crème de la Crème

    Oct 26, 2015
    7,632
    1,000
    Southcoast of the UK Earth
    HD is a July 1970 frame or engine number and it would only have had five numbers so possibly a miss stamp or re stamp with six numbers ? a 70 engine is the first of the engines fitted with the untimed breather in the chain case, more pictures of engine and frame with frame numbers would help. A 70 bike frame is the last of the pre oil in frame bikes as well.

    • Like Like x 1
    • Agree Agree x 1
  5. Stewart Alexander

    Stewart Alexander New Member

    Nov 21, 2018
    2
    3
    N, Linc,s.

    Hi there.. thanks for your input, interesting info…. Have spoken with Tant (brother) … the frame and engine numbers are not matched (frame numbers denote a 1968 model).. he is using the engine as a base for a custom build.. when l can l will post further pics …
    Thanks again
    Best Wishes
    Stewart

  6. almegro

    almegro New Member

    Nov 18, 2017
    15
    3
    hants
    That last 2 doesn't look right, could it have been added to hide its original engine number?

    • Agree Agree x 2
  7. Iron

    Iron Elite Member

    Dec 29, 2021
    2,626
    943
    Bob Ross Studios
    #7 Iron, Nov 15, 2022
    Last edited: Nov 16, 2022
    The stamps all look good and match those of the period.
    T120R is slightly lighter stamp as they mostly seem to be as this was done at an earlier time in the build process at the factory. It also has a slightly different shaped 2 - which is correct.
    I agree with @almegro that the last 2 looks to be a 'mis' stamp.

    • Agree Agree x 2
  8. Eldon

    Eldon Elite Member

    Nov 14, 2018
    6,190
    800
    North Yorkshire
    #8 Eldon, Nov 15, 2022
    Last edited: Nov 15, 2022
    The last number 2 looks to be different in font or depth to the other numbers.

    If you excluded the last number 2 would the numbers make sense i.e. in a parts book?

    Edit:
    Obviously I'm late to the party but that's three of us with the same opinion :yum
    Need to read the replies first rather than responding to the question straight away : unamused:

    • Like Like x 1
  9. speedrattle

    speedrattle Senior Member

    Feb 19, 2021
    1,132
    243
    appalachia usa
    to me it looks like the right "2" but not smacked as hard.

    but i suspect also it was an addition.

    if it was a factory screw up i wonder what the story was?

  10. surlyone2

    surlyone2 Active Member

    Mar 29, 2022
    154
    43
    New Zealand
    Four. The 2 definitely looks a little suspect, along with an engine number in the half million plus range. ;)

    • Funny Funny x 1
  11. Namron

    Namron New Member

    Nov 9, 2023
    10
    3
    Sheffield England.
    That last 2 looks as though it's been done by a different STAMP. compare the first number 2 with the second one.
