    As some of you already know, I have a 1982 CX500 I rescued from Ebay and effectively rebuilt. (It's in other threads on the forum somewhere).

    The stator was replaced but then the water leak started (didn't leak before), so I've started the job of water seal replacement.

    20200516_150249.jpg 20200516_150254.jpg

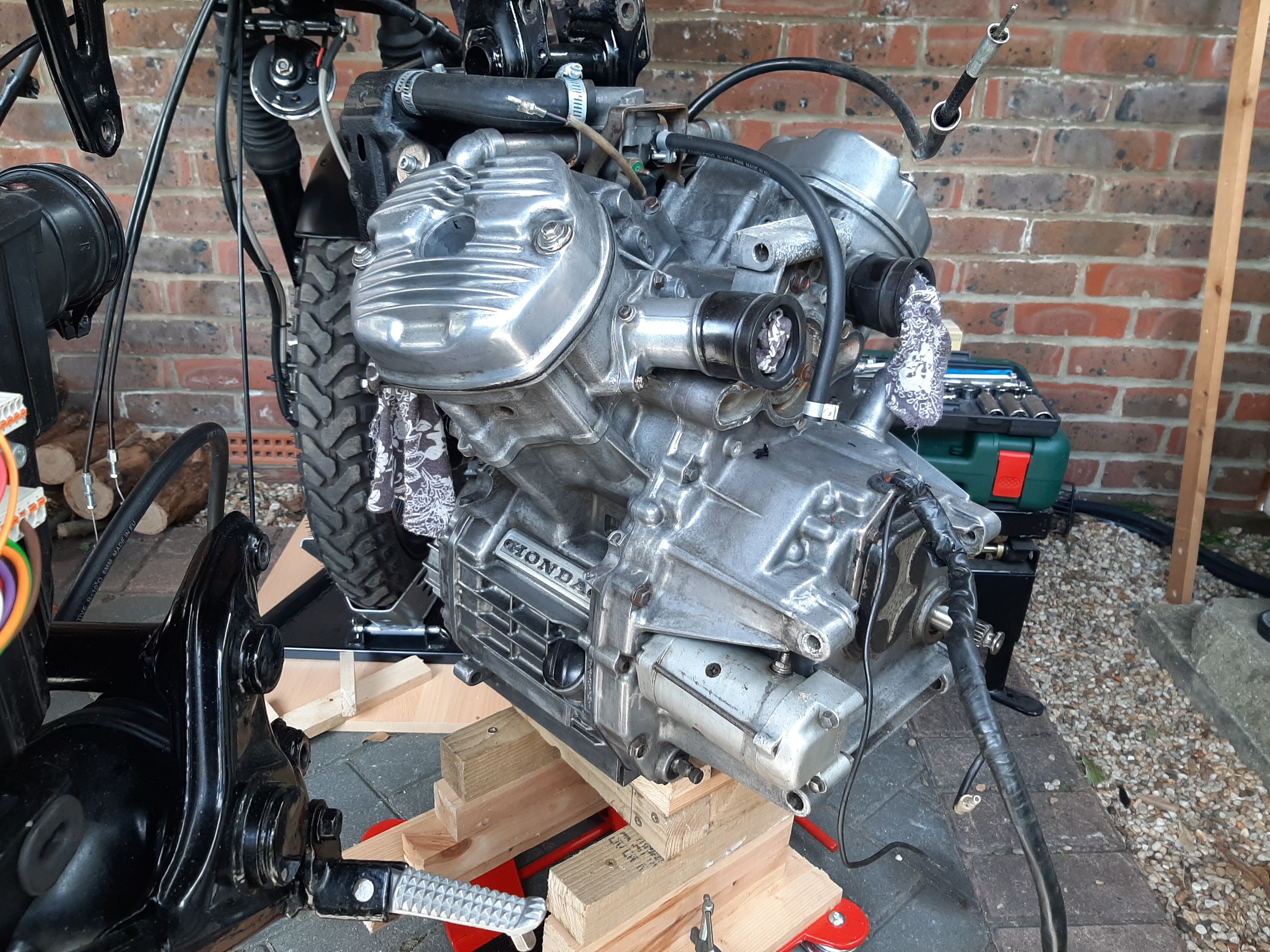

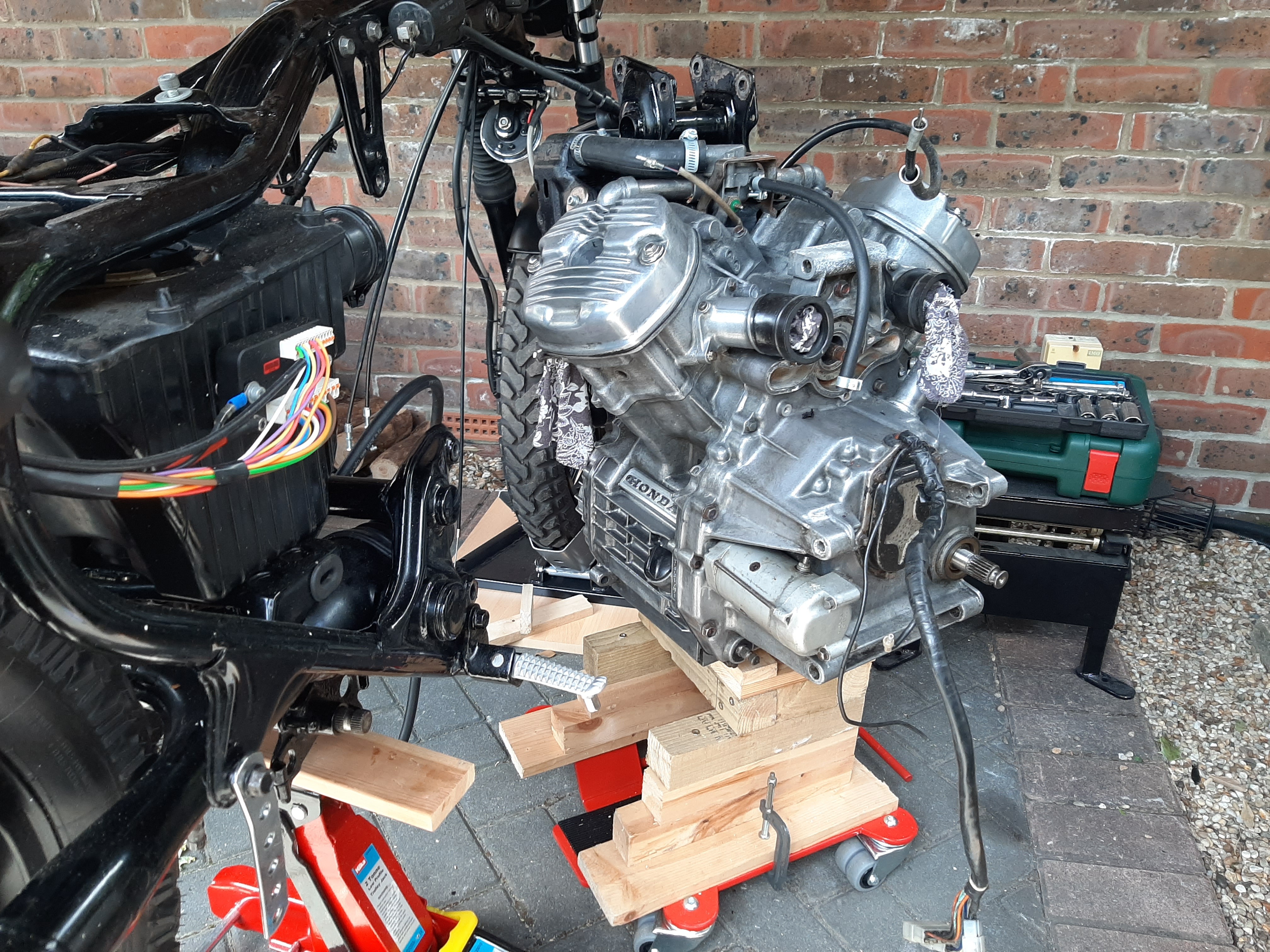

    I made a frame, clamped it to to a dolly so it met the underside of the engine and then removed the mounting bolts. Slid the engine off the drive shaft and then raised the bike leaving the engine free.

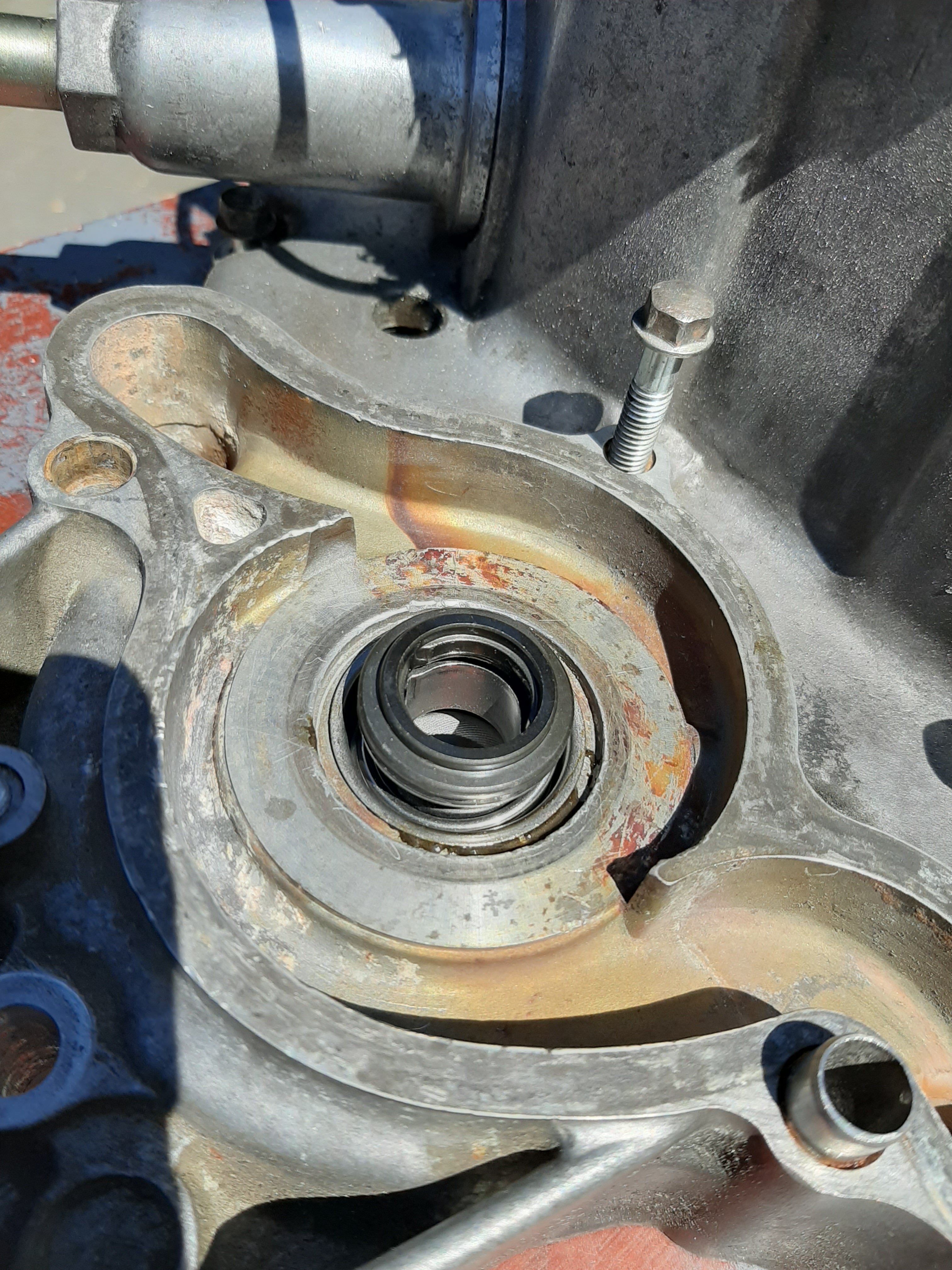

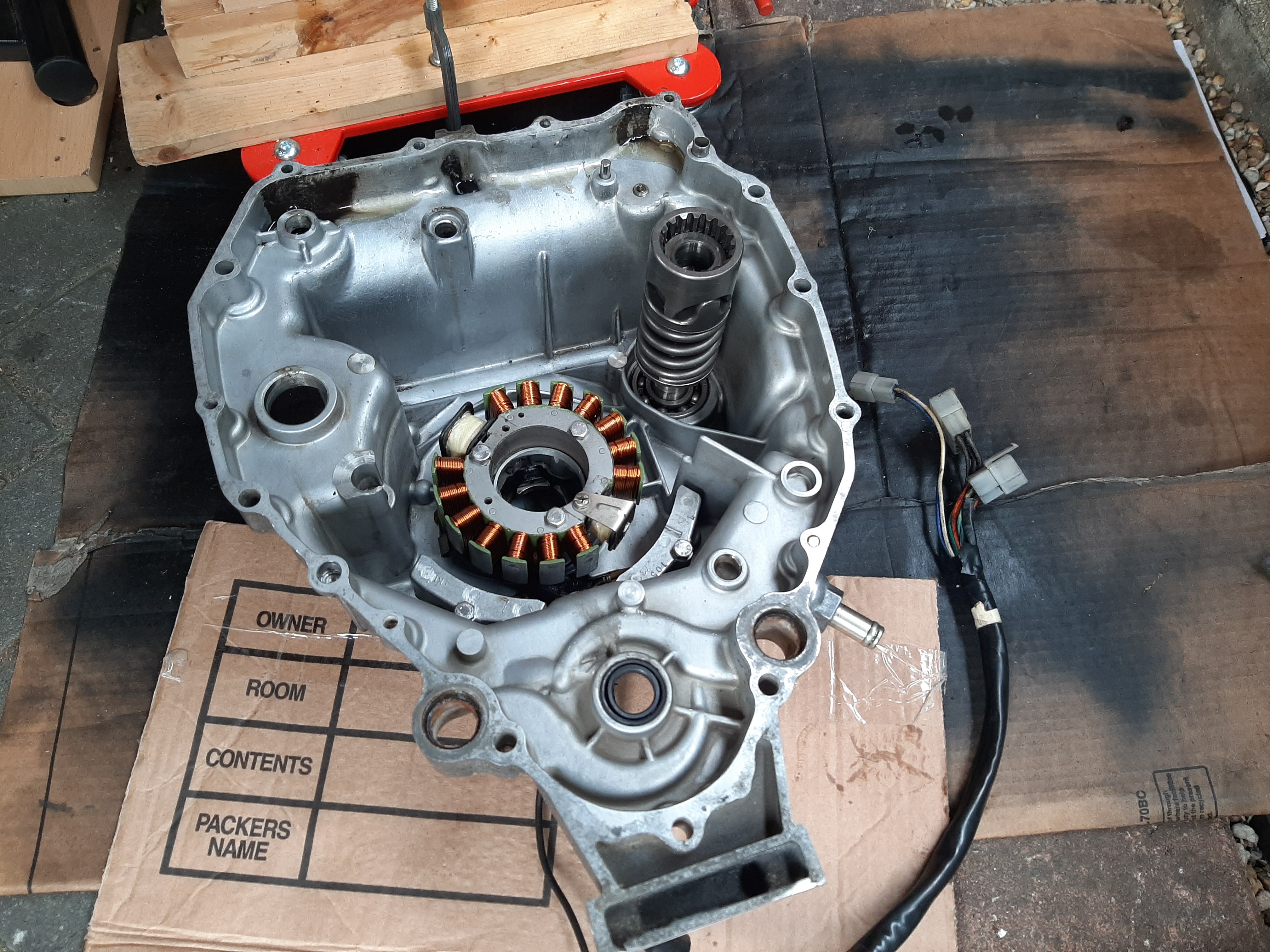

    Rear cover off - there's the new stator and the hole for the mechanical seal is the middle one at the bottom of the picture.

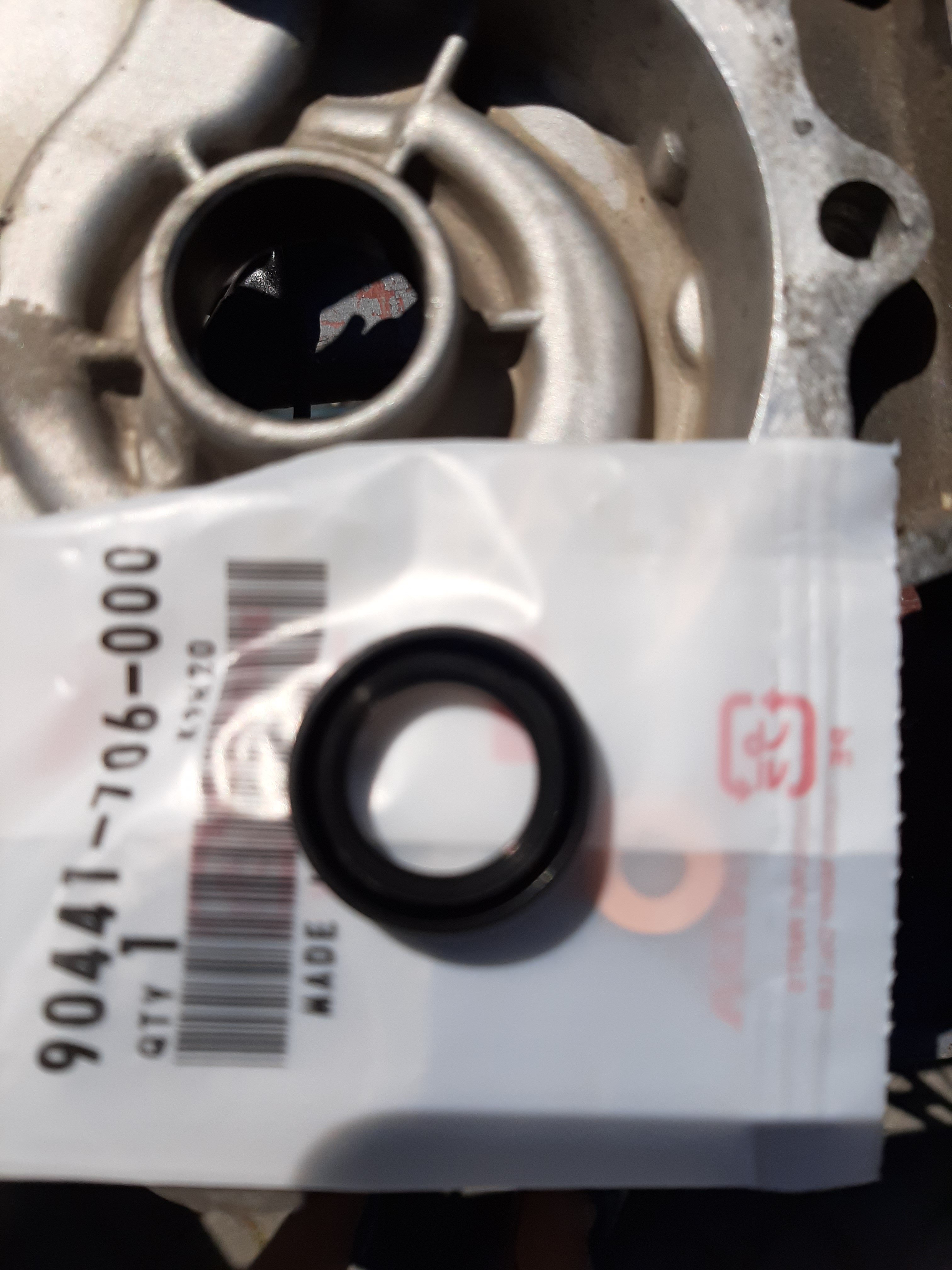

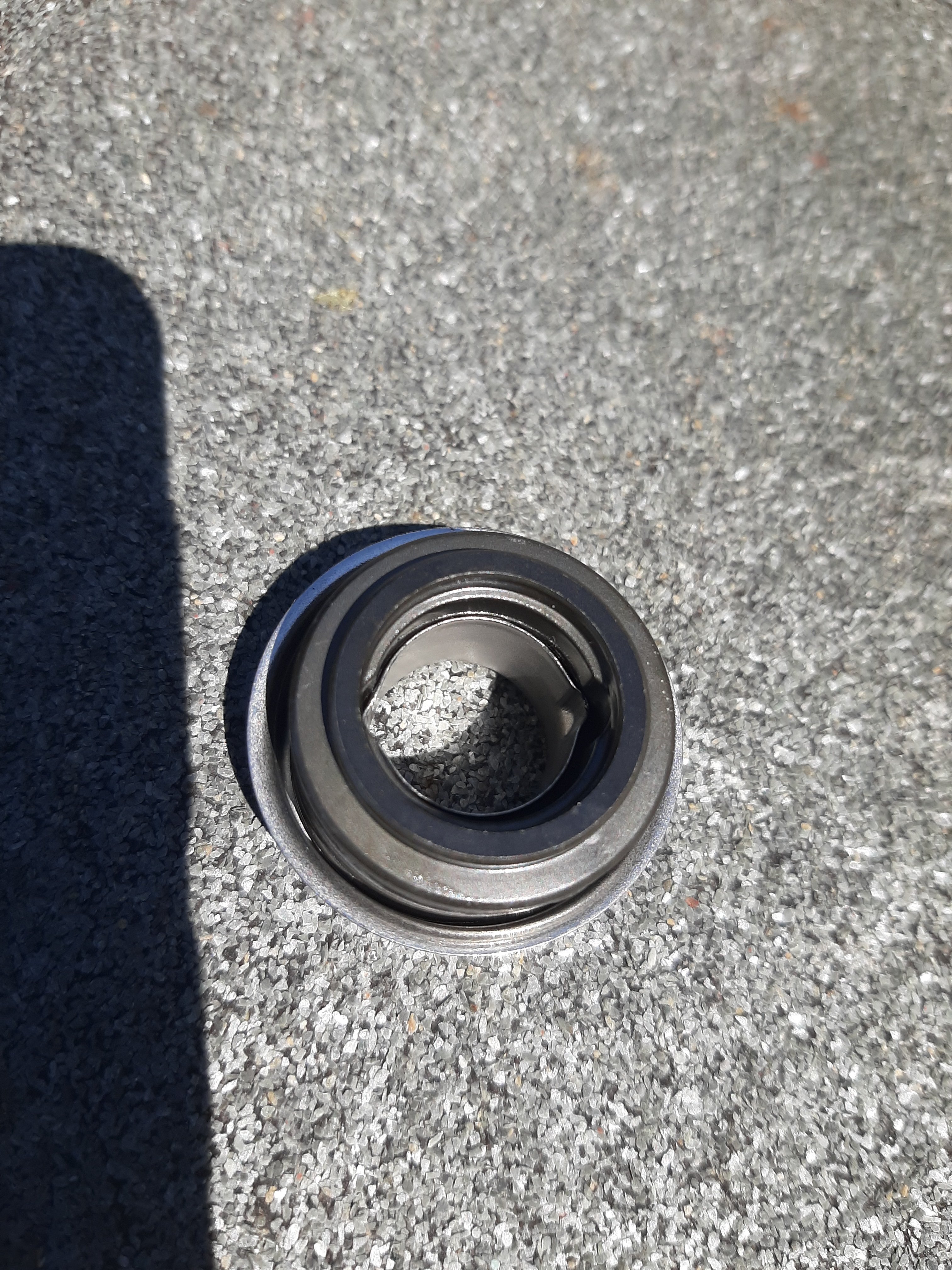

    This is what the engine has to come out for, inner oil seal and mechanical seal.
    20200520_112242.jpg 20200520_112538.jpg

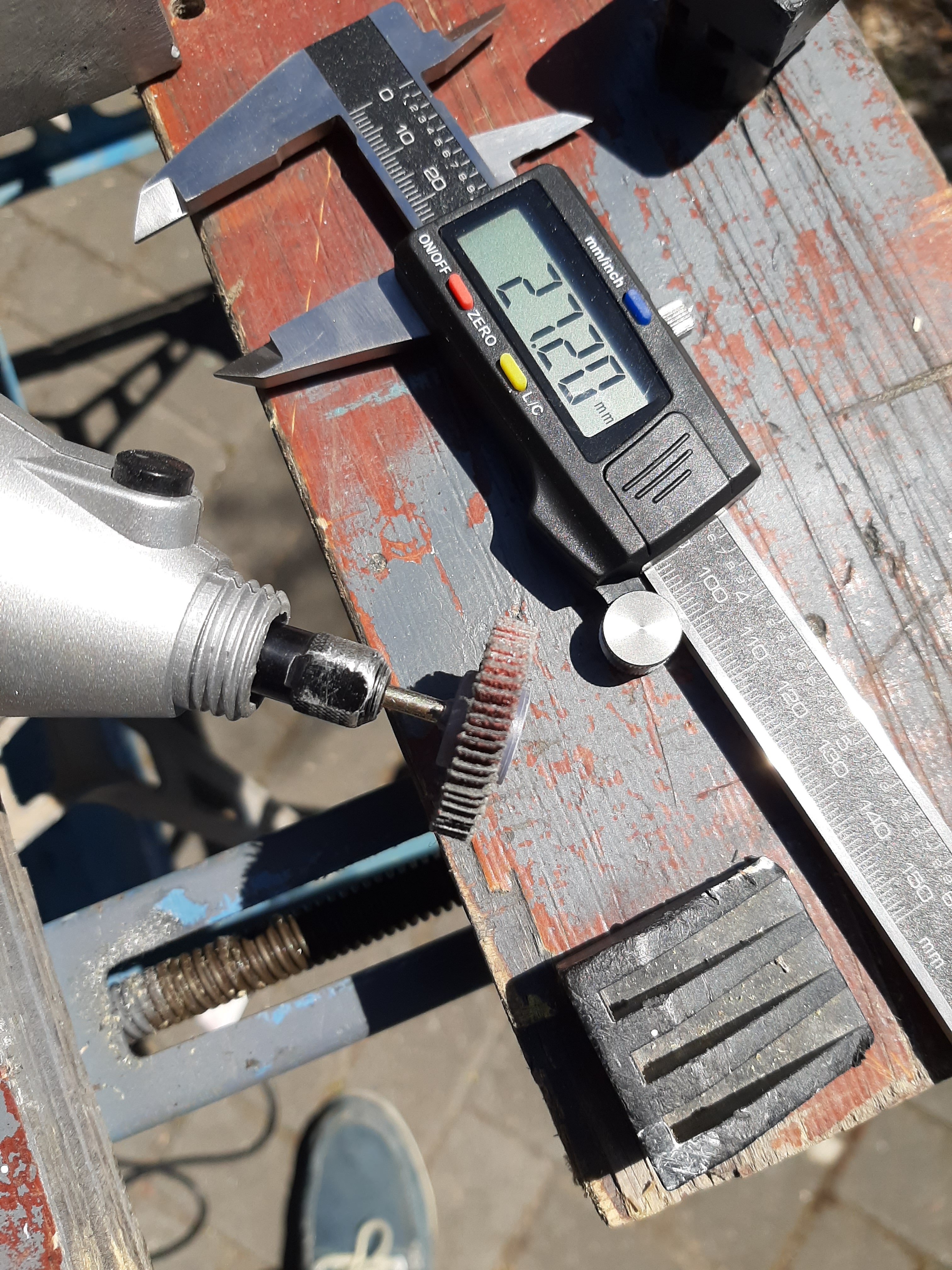

    Turns out that the aperture for some covers is 27.8mm whilst some are 28.3mm. You can only get seals which are 28.3mm. Guess which size mine is?:mad::mad:

    Hello flap wheel and Aldi special buy micrometer!
    A bit of nervous "dremelling"followed.

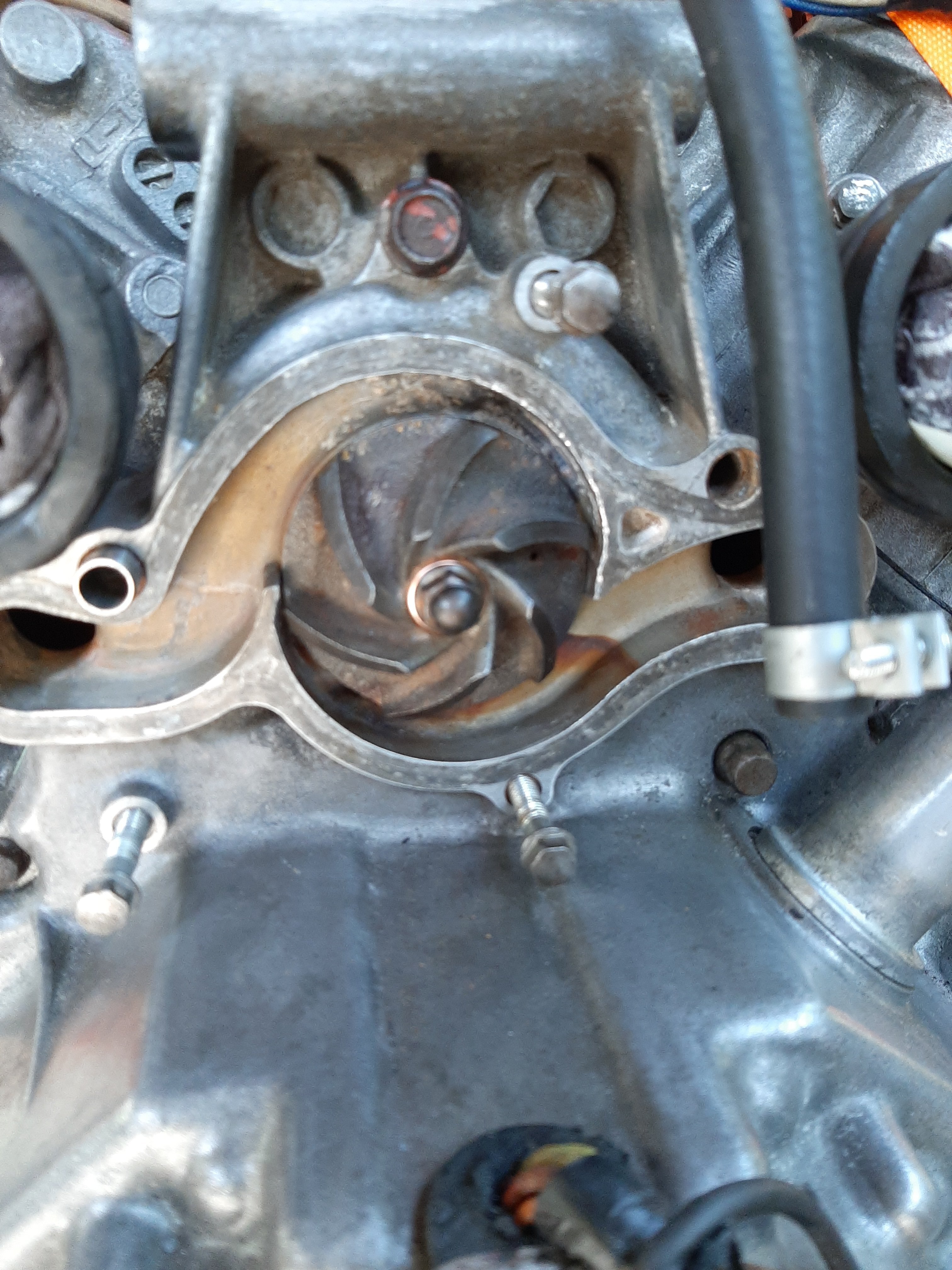

    All back together for now. No way to know if it's worked until you put it all back together!
    20200520_131118.jpg 20200520_141241.jpg

    • Like Like x 17
    • Informative Informative x 1
  2. steve lovatt

    steve lovatt Something else

    May 12, 2014
    9,216
    1,000
    North Yorkshire
    #2 steve lovatt, May 20, 2020
    Yes, he likes a bargain! :joy:

    • Funny Funny x 5
    • Agree Agree x 1
  3. Tallpaul

    Tallpaul Noble Member

    Apr 7, 2019
    607
    393
    Kidderminster
    #3 Tallpaul, May 20, 2020
    I've just done a new seal in my spare engine. Same aperture size, it's a 1980 engine. I just hogged it out with a kitchen knife and dropped the seal in with some clear silicon.

  4. crispey

    crispey crispey creme de la creme

    Nov 6, 2014
    7,225
    1,000
    Uk
    #4 crispey, May 20, 2020
    That’s not @steve lovatt s way, he’ll be looking for a monogrammed one with solid silver extractor

    • Funny Funny x 4
    • Agree Agree x 1
  5. SprinterII

    SprinterII Noble Member

    Mar 27, 2020
    642
    443
    Scotland
    #5 SprinterII, May 20, 2020
    • Like Like x 1
  6. STIFFLER

    STIFFLER Senior Member

    Jan 27, 2015
    593
    143
    Shropshire
    #6 STIFFLER, May 20, 2020
    Brave, VERY brave :) Fingers crossed for you Steve!

    • Like Like x 1
    • Agree Agree x 1
  7. steve lovatt

    steve lovatt Something else

    May 12, 2014
    9,216
    1,000
    North Yorkshire
    #7 steve lovatt, May 20, 2020
    • Thanks Thanks x 1
  8. Tiglet

    Tiglet Vintage Member

    Mar 28, 2016
    4,434
    1,000
    Cheshire
    #8 Tiglet, May 20, 2020
    Sounds like your meds have worn off Small Hausen :p

    Anyway my bestist mate @crispey is not the type of guy who would take advantage of a poor pensioner especially one who guided him to buy a posh pair of riding pants at last years NEC Bike Show :eek:

    • Funny Funny x 1
    • Thanks Thanks x 1
  9. Winglad

    Winglad Crème de la Crème

    Dec 21, 2016
    2,429
    1,000
    Earth
    #9 Winglad, May 20, 2020
    SEAL??? Isn‘t that either an animal or a highly trained but underpayed American hitman?

    Didn‘t know, you find them in motorcycles.... o_O

    • Funny Funny x 8
  10. Hippo-Drones

    Hippo-Drones Noble Member

    Mar 4, 2018
    785
    443
    West Sussex
    #10 Hippo-Drones, May 20, 2020
    I've seen some lovely cusom builds with the Honda CX engine! :)

    • Agree Agree x 1
  11. steve lovatt

    steve lovatt Something else

    May 12, 2014
    9,216
    1,000
    North Yorkshire
    #11 steve lovatt, May 20, 2020
    That was the idea - originally wanted a BMW R80 as a project bike but way too expensive. CX 500's are much cheaper! :D

    • Like Like x 4
  12. Hippo-Drones

    Hippo-Drones Noble Member

    Mar 4, 2018
    785
    443
    West Sussex
    #12 Hippo-Drones, May 20, 2020
    Last edited: May 21, 2020

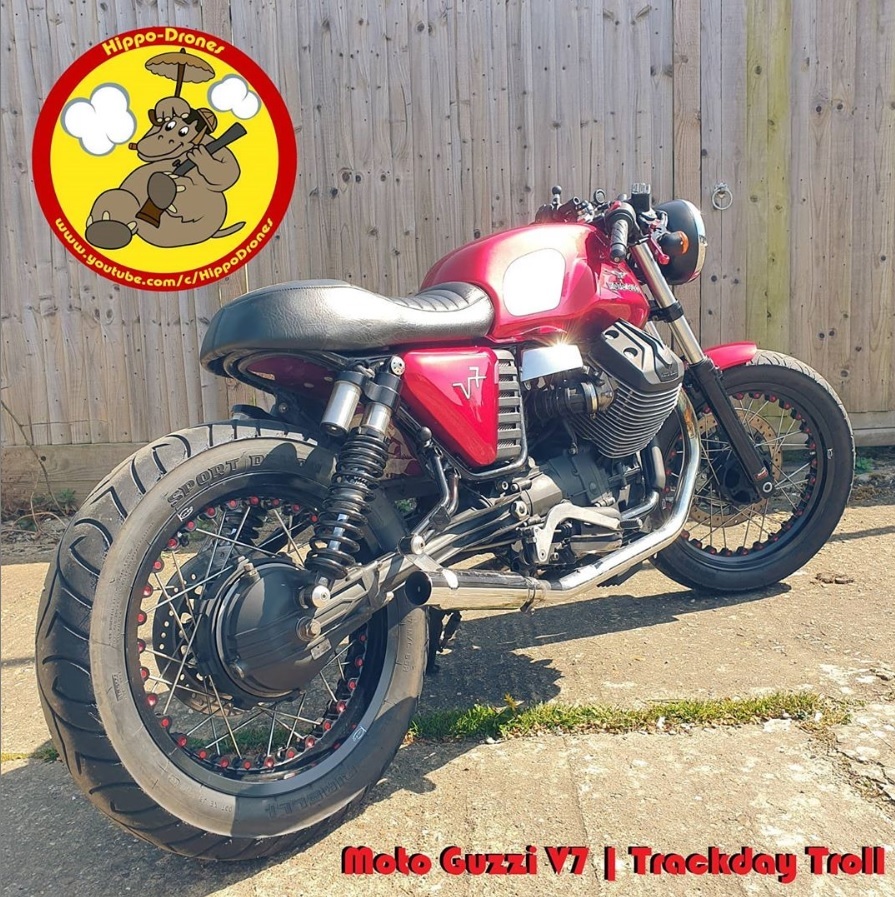

    You have ideas in mind? It is a cracking engine shape to play with. My Moto Guzzi V7 is still undergoing more transformation, but this was it at last camera moment:

    track troll.jpg

    (Sorry about the HD image, have had a wedge of folk use my photos on Instagram without asking)

    • Like Like x 7
  13. Don the Don

    Don the Don Bigger Than The Average Bear

    Nov 5, 2019
    2,947
    800
    MORAY UK
    #13 Don the Don, May 20, 2020
    I like those V7's do they still have plastic tanks like the first model? only thing that put me off

    • Useful Useful x 2
    • Like Like x 1
  14. Hippo-Drones

    Hippo-Drones Noble Member

    Mar 4, 2018
    785
    443
    West Sussex
    #14 Hippo-Drones, May 21, 2020
    Mine has a metal tank :) 2012/2013 bike

    • Like Like x 1
    • Thanks Thanks x 1
    • Useful Useful x 1
  15. Don the Don

    Don the Don Bigger Than The Average Bear

    Nov 5, 2019
    2,947
    800
    MORAY UK
    #15 Don the Don, May 21, 2020
    • Thanks Thanks x 1
  16. Don the Don

    Don the Don Bigger Than The Average Bear

    Nov 5, 2019
    2,947
    800
    MORAY UK
    #16 Don the Don, May 21, 2020
    Thanks for that, that's a nice bike you have must have another look at one

    • Thanks Thanks x 1
  17. steve lovatt

    steve lovatt Something else

    May 12, 2014
    9,216
    1,000
    North Yorkshire
    #17 steve lovatt, May 21, 2020
    They are very hard to find Daniel, that is why I had to take the engine apart! :joy:

    • Funny Funny x 2
  18. steve lovatt

    steve lovatt Something else

    May 12, 2014
    9,216
    1,000
    North Yorkshire
    #18 steve lovatt, May 21, 2020

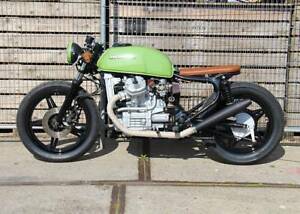

    Yes, I love the engine shape. The Guzzi is more elegant, whilst the CX is more brutish in appearance. I picked these bikes as inspiration, although I chose not to remove the battery and air box.
