Caliper Mount Dimensions

Discussion in 'Technical Help' started by Rob Phillips, Jun 19, 2019.

  1. Rob Phillips

    Rob Phillips New Member

    Jun 19, 2019
    2
    3
    Poughkeepsie
    #1 Rob Phillips, Jun 19, 2019
    im looking to adapt P4 Brembo caliper to 2004 955
    I’m looking for fork caliper mount dimensions or dimensions of stock caliper.
    Appreciate the help.

    Rob

  2. D'Ecosse

    D'Ecosse Senior Member

    Jun 23, 2019
    271
    113
    CA, USA
    #2 D'Ecosse, Jun 23, 2019
    83mm on all the 97-04 S3, 97-06 Daytona 955

    But you don't say what model you actually have, just 04 955 ...... if it's a Sprint its 90mm

    • Useful Useful x 1
  3. Rob Phillips

    Rob Phillips New Member

    Jun 19, 2019
    2
    3
    Poughkeepsie
    #3 Rob Phillips, Jun 23, 2019
    Dayonta forks. I’m actually trying to get the mounting holes, relative to the axle. I then can use cad to make adaptor for brembo.
    Brembo prints are readily available, so it would be easy in cad.
    Otherwise I’ll have to use my cnc to find the hole dimensions on the forks.

    Rob

  4. D'Ecosse

    D'Ecosse Senior Member

    Jun 23, 2019
    271
    113
    CA, USA
    #4 D'Ecosse, Jun 24, 2019
    Sorry my OEM forks long gone so can't get a measurement on that for you.
    Why not go the whole hog and put some USD's already equipped for Radial calipers on there while you're at it? :grinning:

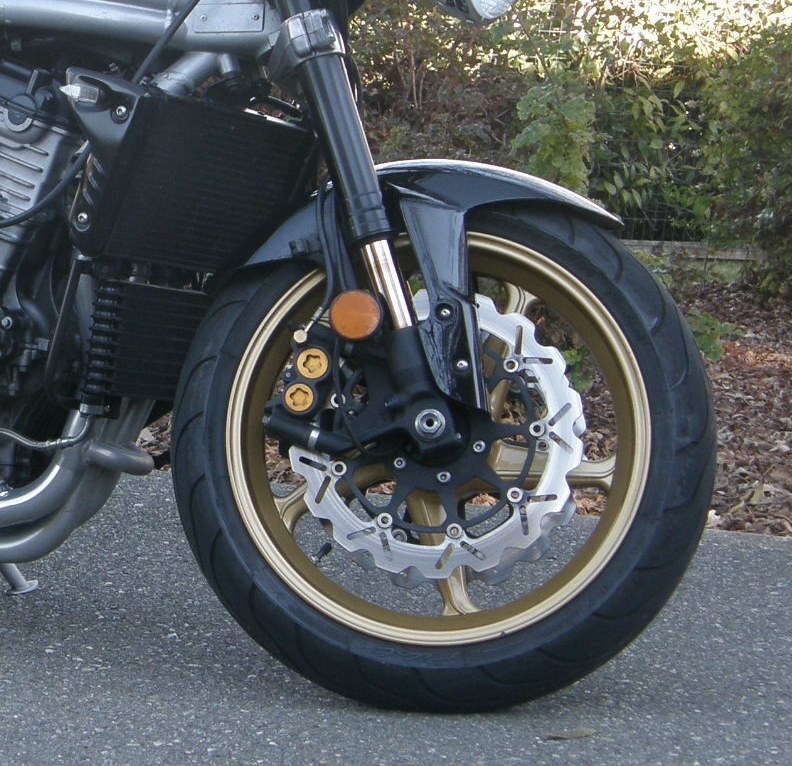

    This is mine with Suzuki Showa GSXR750 forks, with Yamaha Monoblok calipers and a Brembo RCS-19 pump.


    • Like Like x 1
  5. Rob Phillips

    Rob Phillips New Member

    Jun 19, 2019
    2
    3
    Poughkeepsie
    #5 Rob Phillips, Jun 24, 2019
    I’m using Daytona forks for a custom bike I’m building. I want the conventional style forks because the bike is partly vintage but I putting some more modern look to the bike.
    Thanks for your thoughts.
    Rob

    • Like Like x 2
