Back light

Discussion in 'America, Speedmaster & Rocket' started by mixifix, Sep 30, 2016.

Page 1 of 3
  1. mixifix

    mixifix Active Member

    May 7, 2013
    108
    43
    mansfield
    #1 mixifix, Sep 30, 2016
    My back lights stopped working looks like main element but can only get one screw out of back lens

  2. Tigcraft

    Tigcraft Unheard of Member

    Mar 29, 2014
    2,617
    800
    Holmfirth West Yorkshire
    #2 Tigcraft, Sep 30, 2016
    Rounded head?

  3. Andy_S

    Andy_S Active Member

    Jul 19, 2016
    151
    43
    Kingston upon Hull
    #3 Andy_S, Oct 1, 2016
    Cavalier :D:D
    Andy

    • Like Like x 2
  4. crispey

    crispey crispey creme de la creme

    Nov 6, 2014
    7,225
    1,000
    Uk
    #4 crispey, Oct 1, 2016
    I know it's obvious but have you tried pulling on lens as trying to unscrew it

    • Like Like x 1
  5. mixifix

    mixifix Active Member

    May 7, 2013
    108
    43
    mansfield
    #5 mixifix, Oct 1, 2016
    Drilled head off then while pulling lens all the chrome back came away from mudguard piss pot idea triumph putting metal in plastic, liquid metal some studs into plastic piss pot idea triumph aw so something to do on a wet Oct day

  6. Tigcraft

    Tigcraft Unheard of Member

    Mar 29, 2014
    2,617
    800
    Holmfirth West Yorkshire
    #6 Tigcraft, Oct 1, 2016
    Stick a pic on so we can see....

  7. mixifix

    mixifix Active Member

    May 7, 2013
    108
    43
    mansfield
    #7 mixifix, Oct 1, 2016
    What of the wet Oct day or this crap plastic light fitting and it not work tried wires front of loom were mudguard takes off to back only wanted to change light bulb thought it had gone not sure now piss pot motorbikes

  8. mixifix

    mixifix Active Member

    May 7, 2013
    108
    43
    mansfield
    #8 mixifix, Oct 1, 2016
    Will get pics on Monday it's a dangling light at moment another day another dollar

  9. mixifix

    mixifix Active Member

    May 7, 2013
    108
    43
    mansfield
    #9 mixifix, Oct 3, 2016

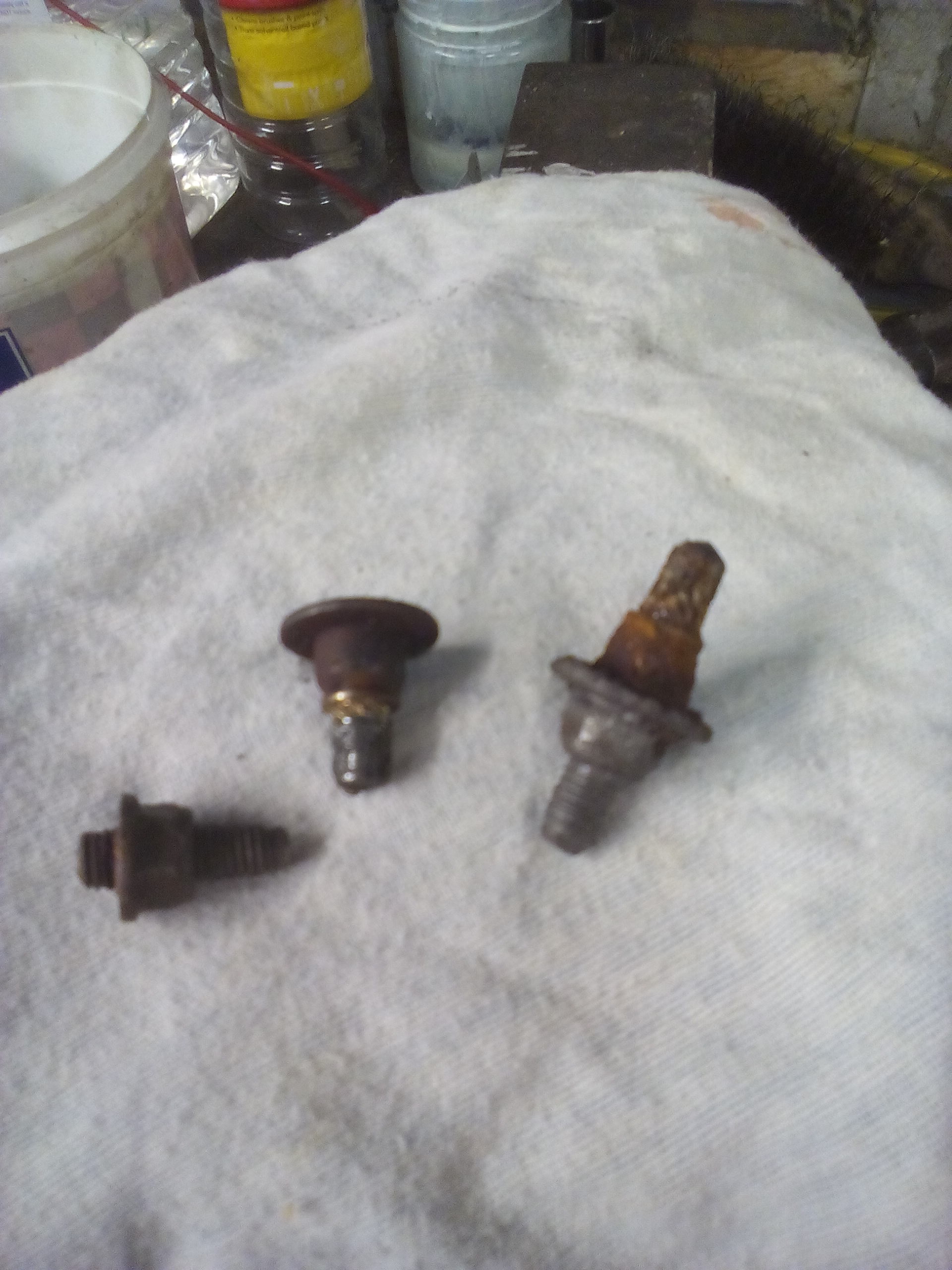

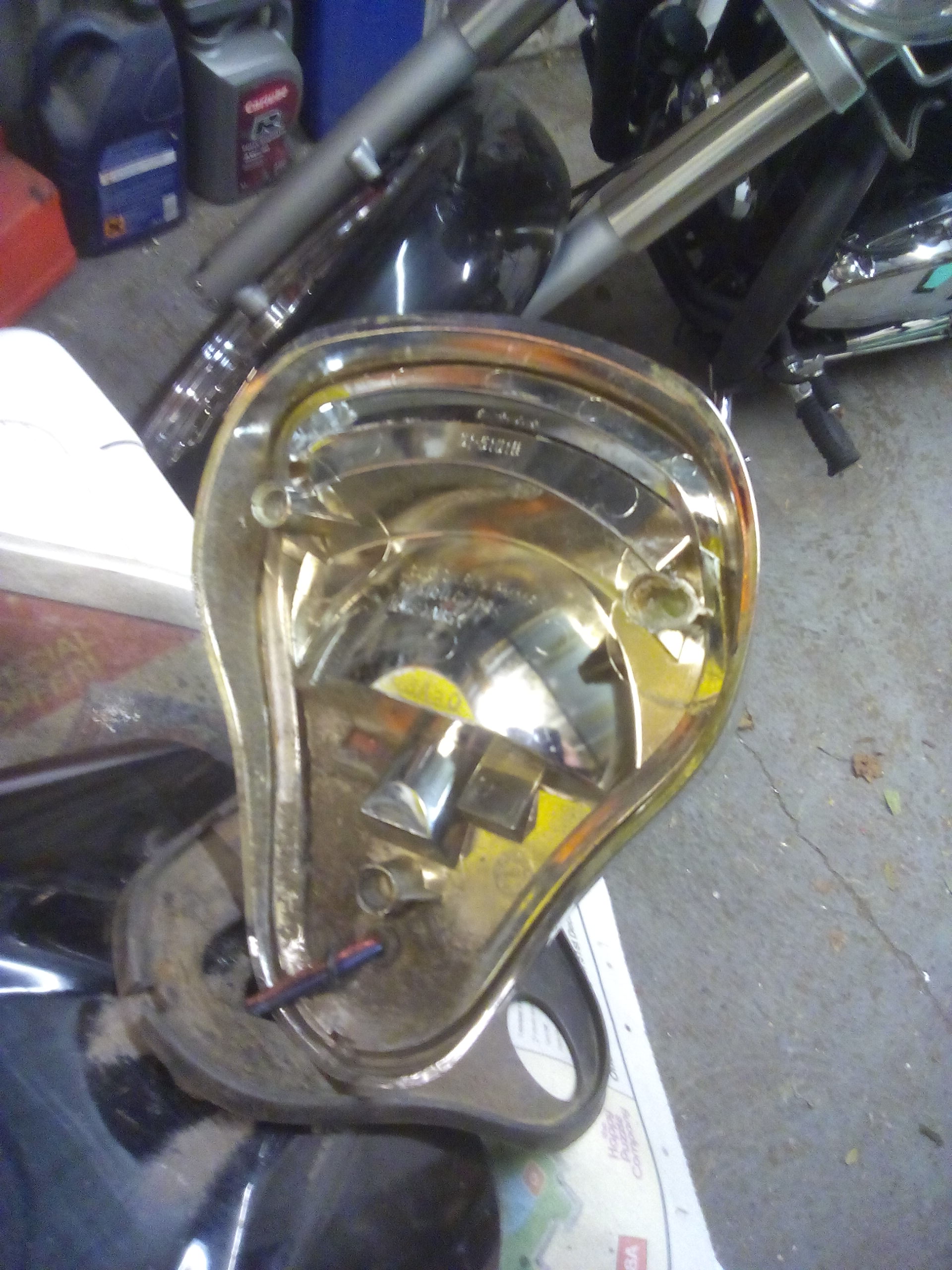

    Here are pics of dangling back light the three rusty bolts/studs were left in mudguard but as you can see one bolt mount is broke crap plastic, checked the wires with multimeter yes continuity but bulb not work when ignition on also no brake light




    • Like Like x 1
  10. Havit

    Havit Admin
    Staff Member Subscriber

    Jul 17, 2015
    9,620
    1,000
    Kent
    #10 Havit, Oct 3, 2016
    Your right .metal into plastic is not good:oops:

  11. crispey

    crispey crispey creme de la creme

    Nov 6, 2014
    7,225
    1,000
    Uk
    #11 crispey, Oct 3, 2016
    Earthing problem?

  12. Havit

    Havit Admin
    Staff Member Subscriber

    Jul 17, 2015
    9,620
    1,000
    Kent
    #12 Havit, Oct 3, 2016
    Thats a Sod:D:D:D

  13. mixifix

    mixifix Active Member

    May 7, 2013
    108
    43
    mansfield
    #13 mixifix, Oct 3, 2016
    Latest got stop light working scratching my head over main never mind didn't beat a ride on a sunny Oct day

  14. Andy_S

    Andy_S Active Member

    Jul 19, 2016
    151
    43
    Kingston upon Hull
    #14 Andy_S, Oct 3, 2016
    Looking at the pictures, I might strip and lube all my fixings over the winter. If it's going to be a problem I might as well have it in bits over the winter. I might make a to do list for the winter . I'll replace as much as I can with stainless :), I always like a stainless fixings.
    Andy

  15. v8dve

    v8dve Member

    Feb 13, 2016
    25
    18
    Southampton
    #15 v8dve, Oct 4, 2016
  16. mixifix

    mixifix Active Member

    May 7, 2013
    108
    43
    mansfield
    #16 mixifix, Oct 4, 2016
    Yeah your lot now you have seen my misgivings, I ended up cutting thread from some long stainless bolts put into plastic after drilling out and tapping 8 mm then metal paste onto threads also stainless nuts washers.Still only got brake light another day another dollar.

  17. Andy_S

    Andy_S Active Member

    Jul 19, 2016
    151
    43
    Kingston upon Hull
    #17 Andy_S, Oct 4, 2016
    Does your side light at the front work OK? Is it just the back light that is out? I blew a fuse on mine whilst messing puting a relay in to switch the supply to my heated grips, the back light and side light stopped working but as far as I can remember everything else still worked OK.
    Andy

  18. mixifix

    mixifix Active Member

    May 7, 2013
    108
    43
    mansfield
    #18 mixifix, Oct 4, 2016
    It's 03 America no sidelight just main front on dip and back light normal now everything OK but no back light only stop light same with different bulb mmm scratching my head

  19. Andy_S

    Andy_S Active Member

    Jul 19, 2016
    151
    43
    Kingston upon Hull
    #19 Andy_S, Oct 4, 2016
    My 2011 america has a small side / pilot lamp inside the headlight, but obviously that doesn't mean that yours does. I'll have to look for a wiring diagram on the net and post again.
    Andy

  20. Andy_S

    Andy_S Active Member

    Jul 19, 2016
    151
    43
    Kingston upon Hull
    #20 Andy_S, Oct 4, 2016
    Last edited: Oct 4, 2016
    A quick look at the online hand book suggests position 3 of the ignition key puts on the front and rear sidelights. Have you tried this and if so what happens. Sorry if yours doesn't have this I'm making a few assumptions.
    Andy
