Alarm Removed ?

Discussion in 'Bonneville' started by Malcolm Woods, Sep 25, 2019.

  1. Malcolm Woods

    Malcolm Woods Noble Member

    Sep 16, 2019
    331
    313
    norfolk
    #1 Malcolm Woods, Sep 25, 2019
    Having bought a really nice 2011 Bonneville T 100 today, I asked the dealer to remove the triumph immobiliser alarm, because I think they flatten the battery and also I just would not want to get caught out miles from anywhere with a an immobiliser problem as there would be nothing I could do. this was a added extra a previous owner had fitted.
    Having this removed would there be any reliability issues????
    The main agent dealer says its easy to do, anyone knows what's involved????
    Many thanks
    Mallywoods

  2. Malcolm Woods

    Malcolm Woods Noble Member

    Sep 16, 2019
    331
    313
    norfolk
    #2 Malcolm Woods, Sep 25, 2019
    Last edited: Sep 25, 2019
    Yes I do well, if an immobiliser goes wrong, even a key problem you are well stuffed. I just hope removing the alarm won't be detrimental to the general running of the bike, but with my limited knowledge of motorcycle electrics, I hope another member will let me know.
    many thanks
    mallywoods

  3. Callumity

    Callumity Elite Member

    Feb 25, 2017
    3,358
    800
    Nr Biggar
    #3 Callumity, Sep 25, 2019

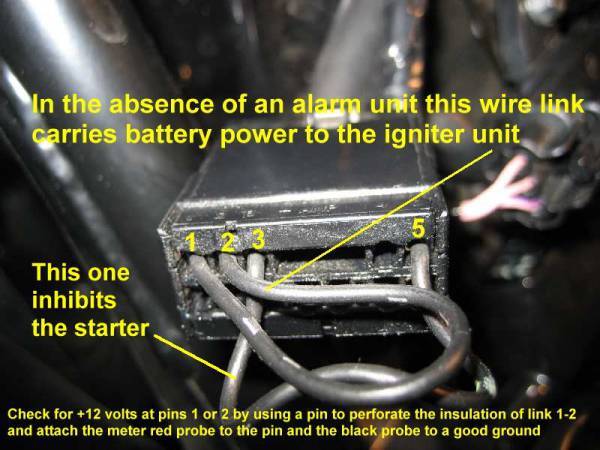

    Look for a block connector on the rear mudguard behind the ECU & battery area. It should have a visible short wire loop providing continuity if there is no immobiliser fitted.

  4. Callumity

    Callumity Elite Member

    Feb 25, 2017
    3,358
    800
    Nr Biggar
    #4 Callumity, Sep 25, 2019
    Here you go


    • Like Like x 1
  5. Malcolm Woods

    Malcolm Woods Noble Member

    Sep 16, 2019
    331
    313
    norfolk
    #5 Malcolm Woods, Sep 25, 2019
    Thats very good, but my question is .. by removing the alarm, is that deprimentrial to the normal operation of the bike.

  6. Callumity

    Callumity Elite Member

    Feb 25, 2017
    3,358
    800
    Nr Biggar
    #6 Callumity, Sep 25, 2019
    Without the continuity loop it won’t run! Otherwise no effect.

  7. Malcolm Woods

    Malcolm Woods Noble Member

    Sep 16, 2019
    331
    313
    norfolk
    #7 Malcolm Woods, Sep 25, 2019
    Last edited: Sep 25, 2019
    Many Thanks. I had this feeling that wires going in and out of the ECU would be cut and cause a host of intermmitant faults in the future. what I can gather the ECU really has nothing to do with the alarm.???
    Thank you for your replies
    mallywoods

  8. Mark Storey

    Mark Storey New Member

    Jan 3, 2020
    0
    1
    Uk
    #8 Mark Storey, Mar 3, 2020
    Hi, with regards the picture with the links. Is this the same for all triumphs. I have a speed triple 995i and the immobiliser won’t disarm. Can’t find an in line fuse the manual talks about so next option is to remove the unit and link it out.
