765 23(uk)/24(us) How To Remove Headlight Finisher And Fascia

Discussion in 'Street Triple' started by xorbe, Jul 3, 2023.

  1. xorbe

    xorbe Noble Member

    Jan 27, 2021
    252
    363
    CA, USA
    #1 xorbe, Jul 3, 2023
    Last edited: Jul 4, 2023
    Can't find any YT walk-throughs for the latest gen.

    Solution: Put on gloves. Sit in front of the bike with front tire against your chair. Work the left side of the finisher panel towards you. The service manual says pull forward, it's just clips. They are just ridiculously tight, it takes some faith based forcing. And the edge you are working with is sharp.

    Edit: Once you install the flyscreen, that thing is much easier to pop off, as there is something to get your hands on easily.

    Edit: The visor is the same as the Speed Triple 1200 (pn A9708525), it was a crazy tight fit on my painted 765 flyscreen. Much easier on the Speed Triple flyscreen for some reason.

  2. xorbe

    xorbe Noble Member

    Jan 27, 2021
    252
    363
    CA, USA

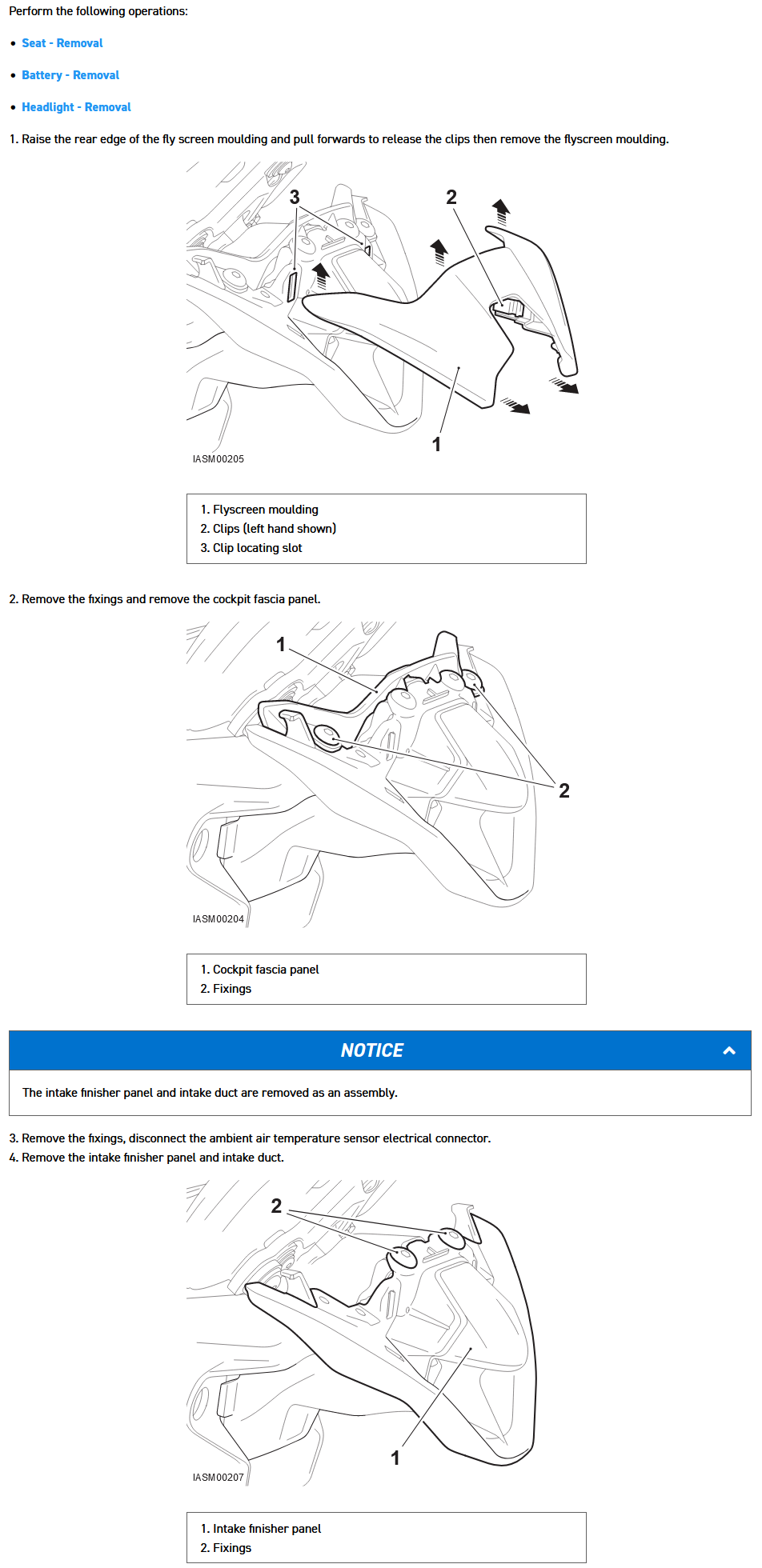

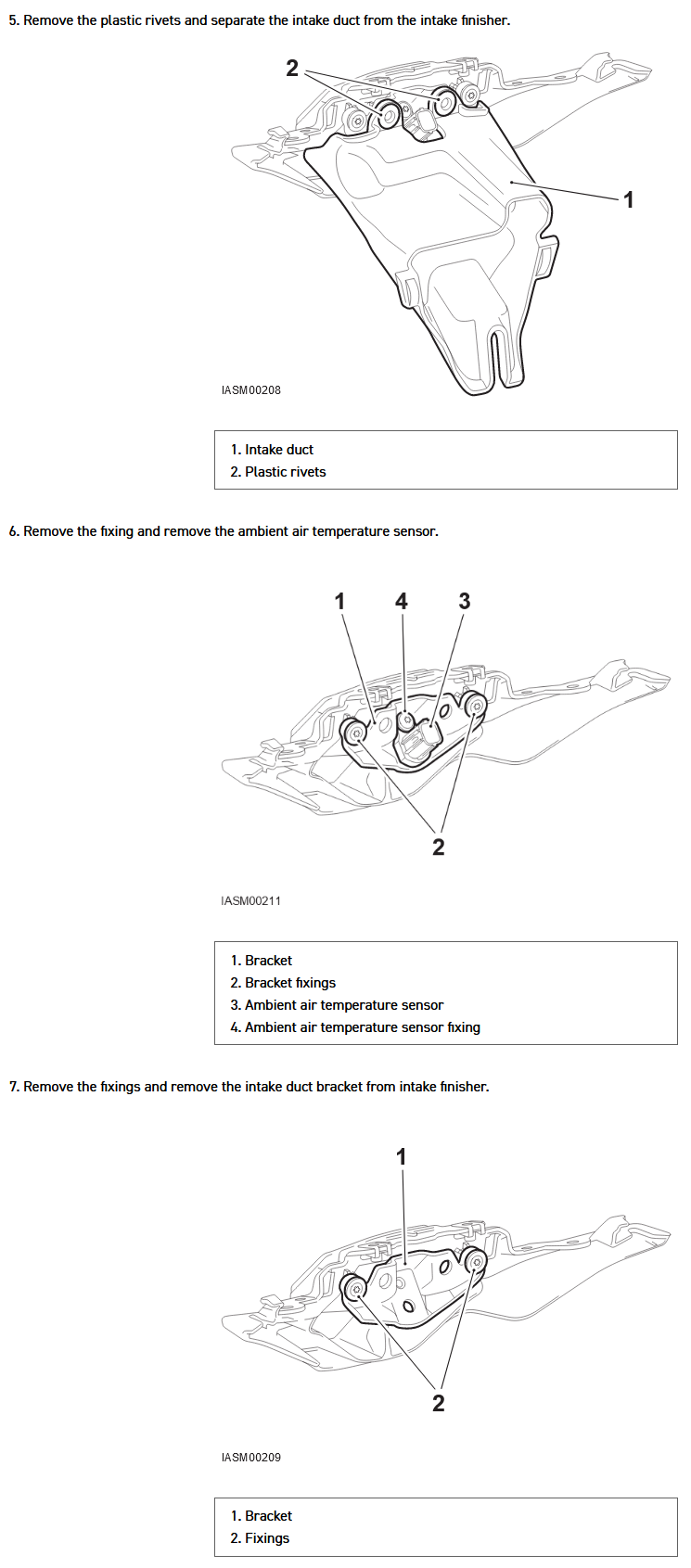

    Couple related pages from 2024 service manual.



    • Useful Useful x 2
  3. JDK76

    JDK76 New Member

    Jul 5, 2024
    2
    3
    Brisbane
  4. xorbe

    xorbe Noble Member

    Jan 27, 2021
    252
    363
    CA, USA
  5. JDK76

    JDK76 New Member

    Jul 5, 2024
    2
    3
    Brisbane
