2010 Speedmaster Dash Lights Upgrade

What is the serial number (last 6 digits of your VIN) of your bike?

If up to 439975 looks like simple bulb replacement with LED type
http://www.triumphcenteruppsala.se/index.php?action=showParts&id=235987&c=100066229#partslist

1 x T10 and 1 x T6.5

But if after 439976, looks like it must be integrated onto the main PCB within the instrument

http://www.triumphcenteruppsala.se/index.php?action=showParts&id=235987&c=100066230#partslist



Edit - I'm sorry - as I re-read your message, I originally interpreted you meant the back-lights of the speedo - But I think you mean the Indicator lights for the panel on the tank? (item 10)

http://www.triumphcenteruppsala.se/index.php?action=showParts&id=236002&c=100066262#partslist

Now the fiche does not specify what type of bulb it is, but since they are all the same it would appear they are simple white bulbs behind each colour filter - you would need to remove them to see what it is
One note when replacing bulbs behind coloured filters - you typically want an LED that is the same colour as the filter - i.e. a green LED behind a green filter, red behind red etc
You could also look for integrated LEDS already encased in a lens housing of a suitable size for the OEM hole in the panel.



I have done the led bulb replacement in the tank panel on my America 09 , it is very simple. Pop out the coloured lens , then pull the rubber fitting up , squeeze out the bulb , put led replacement in ,testing it works ! As they are current direction sensitive ! Put the rubber fitting back in place and reinstated the lenses !
Easy as !



Hmm , that's a funny one. I used some led's that were designed for low lighting, they had white plastic cap's. I removed the cap's to find led's that faced upwards. Ideal for the coloured plastic lenses in the console. Not sure now what brand/type . I bought them from an Autopro outlet here in WA , came in a blister pack of two.



You'll need a non-polarized LED - that is one that flows current in either direction (in essence it is two leds in same package)
If you end up replacing the actual turn signals to LED at some point it will create further problems because of how that circuit to the turns indicator is wired (it is connected between the two signal)

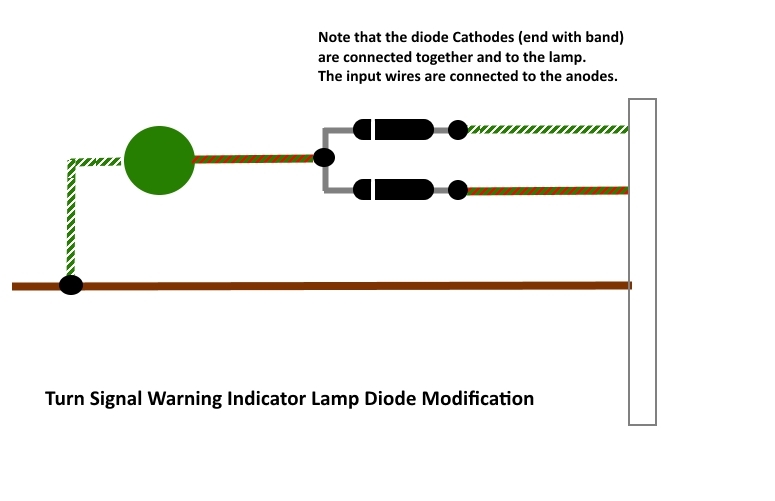

You can prevent both issues and use that polarized LED you have now, if you do the diode mod to the wiring to the turns indicator.

Diode Mod



You might want to check out superbrightleds.com ...J.D.


P.S. The BEST part of your post is you are 70 and still riding. . I'll be 74 here in a few weeks. Just had my America out yesterday. No place to go. Just riding for the hell of it ! RIDE ON brother !



Mojave Desert. ...J.D.
