1969 Bonnie

Discussion in 'Technical Help' started by Bob Rout, Dec 12, 2019.

  1. Bob Rout

    Bob Rout New Member

    Dec 11, 2019
    18
    3
    Cwmbran Torfaen
    recently bought the bonnie , real problem with primary chain too tight but unable to loosen adjuster . grateful for any ideas

    • Agree Agree x 1
  2. darkman

    darkman Crème de la Crème

    Oct 26, 2015
    7,634
    1,000
    Southcoast of the UK Earth
    What's the problem, is it the slot on the adjuster rounded off.

    • Agree Agree x 1
  3. Bob Rout

    Bob Rout New Member

    Dec 11, 2019
    18
    3
    Cwmbran Torfaen
    after removing the cover , I tried several screwdrivers into the adjuster but could'nt engage with any slot . Out of curio, I inserted an imperial allen key which seemed to engage with a slot and spent half an hour turning and turning the key but nowt happened. I know its supposed to be adjusted with a small driver , but nothing works. My next move is to take the cover back off and see how the adjuster is fixed onto the bottom of the inner case. I have trawled ebay and found a complete adjuster in the states , but I need to investigate further before I buy a replacement

    • Like Like x 1
    • Agree Agree x 1
  4. darkman

    darkman Crème de la Crème

    Oct 26, 2015
    7,634
    1,000
    Southcoast of the UK Earth

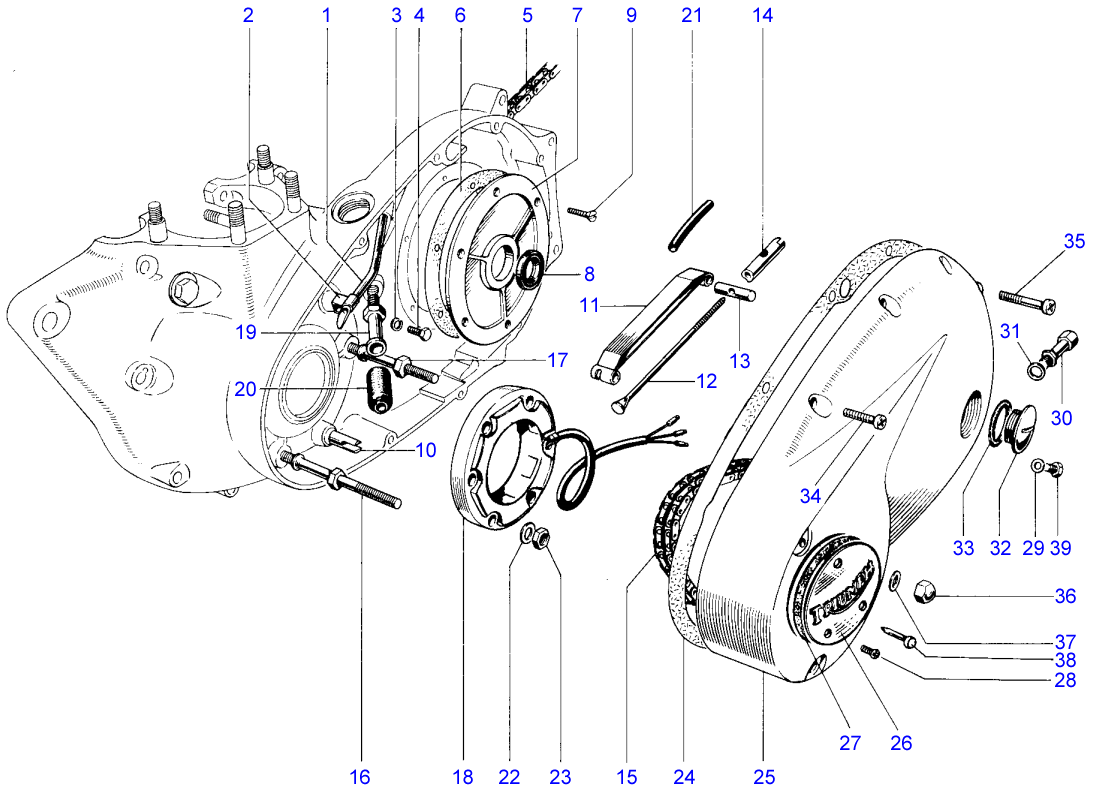

    Here is an image showing parts, plenty of parts UK available.

    • Like Like x 3
    • Useful Useful x 1
  5. darkman

    darkman Crème de la Crème

    Oct 26, 2015
    7,634
    1,000
    Southcoast of the UK Earth
    This pic shows adjuster screwed onto pad rod and it can be removed easy with cover off.


    • Like Like x 3
    • Useful Useful x 1
  6. feckless

    feckless Noble Member

    Apr 16, 2019
    1,033
    443
    Cumbria
    when checking the tension I think you are supposed to put some weight on the Kstart which effectively loosens the top run of the chain
    @darkman will hopefully confirm if this is right

    • Like Like x 1
    • Agree Agree x 1
  7. darkman

    darkman Crème de la Crème

    Oct 26, 2015
    7,634
    1,000
    Southcoast of the UK Earth
    One possibility, i prefer to just give it a big wiggle up n down and get it around 3/8 to 1/2 inch play.

    • Useful Useful x 1
    • Agree Agree x 1
  8. joe mc donald

    Subscriber

    Dec 26, 2014
    14,505
    1,000
    slough / burnham
    Bob Rout
    I had the same on my silver jubilee. I screwed out the pinion at the front and pulled it through that way then replaced the tensioner. Also I was always taught that the free play was at the top and only a few mls.
    Regards
    Joe.

    • Like Like x 2
  9. Bob Rout

    Bob Rout New Member

    Dec 11, 2019
    18
    3
    Cwmbran Torfaen
    thanks for replies , I will remove outer case again and investigate further . I am wondering if the actual adjuster part is actually in place , or removed or broken by previous owner , will let you know
    Bob

    • Like Like x 2
